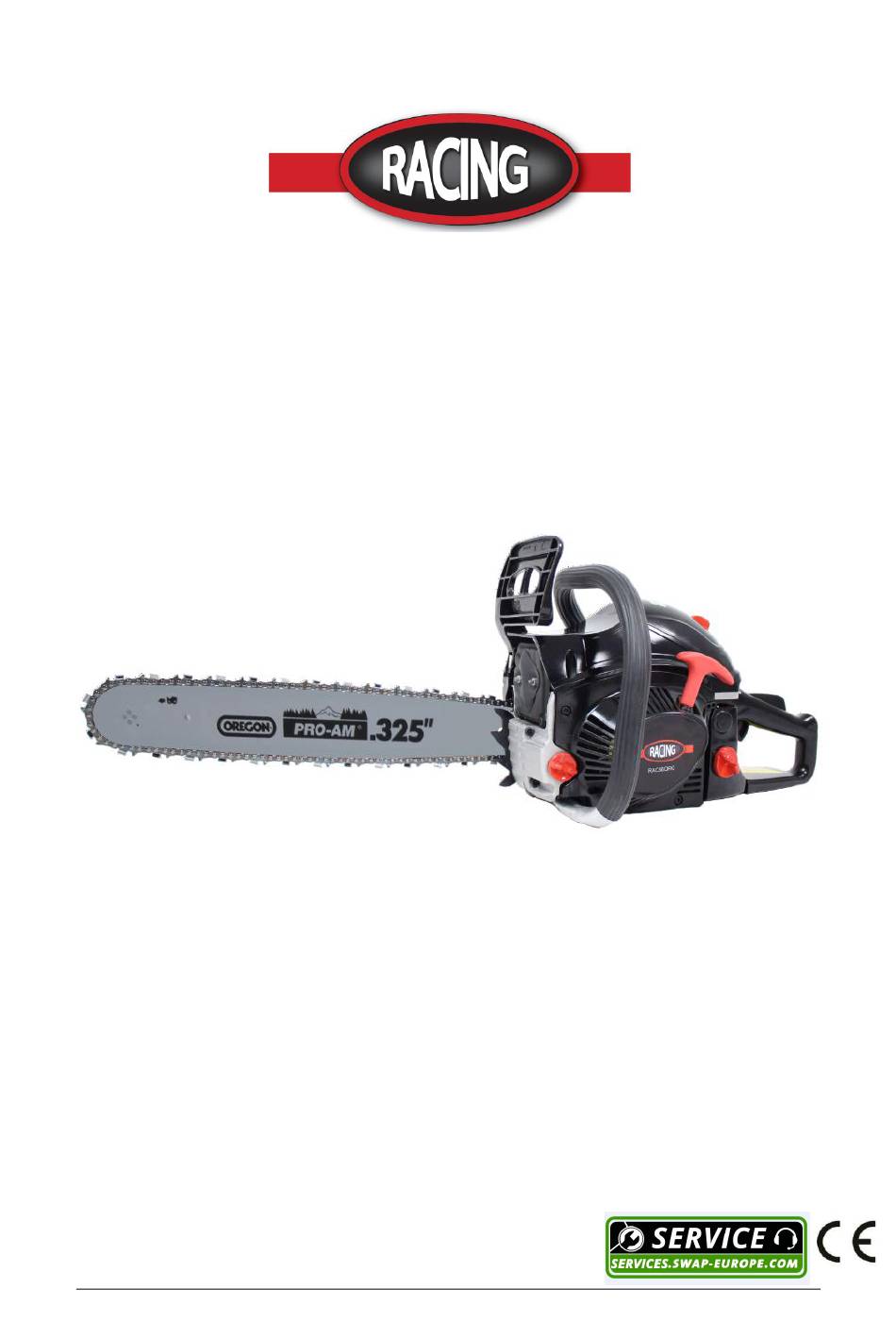

- Page 1 ORIGINAL INSTRUCTIONS GASOLINE CHAINSAW RAC56ORG-2 INSTRUCTIONS MANUAL Read the instructions before use the tool BUILDER SAS ZI, 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY... -
Page 3: Safety Warnings
1. SAFETY WARNINGS WARNING! When using this type of petrol garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. - Page 4 accessories and before servicing. Keep handles dry, clean and free from oil and grease. Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired. Remove the blade guard before using the tool.
- Page 5 Follow the instructions for lubrication, tension and chain change accessories. A chain whose tension and lubrication are incorrect can either break or increase the risk of rebound. Keep handles dry, clean and free of oil and grease. Oily, greasy grips are slippery and cause loss of control.
- Page 6 cutting. Bounce results from improper use of the tool and / or incorrect operating procedures or conditions and can be avoided by taking the appropriate precautions specified below: Hold the saw with both hands firmly with the thumbs and fingers encircling the handles of the saw and place your body and arms to allow you to withstand the rebound forces.
- Page 7 Symbols Warning symbol. Read and refer to these operating instructions. Wear safety equipment that includes a helmet, protective helmet and protective goggles. Guarantee sound power level. This tool must be used by persons trained to cut down trees; Read this instruction manual! The contact of the end of the bar with any object must be avoided.
-
Page 8: Your Product
2. YOUR PRODUCT a. Description... - Page 9 8- Fuel tank 18- Fastening nut 9- Starter rope 19- Ignition switch 10- Oil tank 20- Choke lever b. Technical data Model RAC56ORG-2 Type of engine RY1E46FB-2 (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Oil tank volume 260cm³...
-
Page 10: Assembly
3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves during assembly. 1) Pull the guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover. 3) Attach the spiked bumper and screw it in place. - Page 11 5) Reinstall the cover and screw it with the two nuts. 6) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. Check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain.
-
Page 12: Filling The Fuel Tank
4. FILLING THE FUEL TANK 1) Fuel WARNING: When filling the tank: The chainsaw must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. -
Page 13: Operation
5. OPERATION Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting. The unit should always be filled with fuel and useful. Check the level of filling and refill when necessary. - Page 14 In both cases, the saw must remain away from the operator's body. Let the engine warm up. When the engine starts, return the choke to its original position. Push the safety trigger and the accelerator throttle to start the operation. NOTE: If the engine stalls when starting, push the choke to the initial position and pull the cord again.
- Page 15 3. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws. If these screws require readjustment, have the machine serviced by your service center. Stop the tool and tighten the needle L until it stops. Do not force it. Then set it to its initial number of turns as shown below.
- Page 16 d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 17 b. Trunk on the ground Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation.
-
Page 18: Maintenance And Storage
MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. - Page 19 e. Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 20 g. Chain saw Check each time the cutter and cutting angles are as shown below. h. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).
- Page 21 Warranty We guarantee this product for 2 full years. The warranty period for this item starts on the day of purchase. You can prove the date of purchase by sending us the original receipt. We insure over the entire warranty period: •...
-
Page 22: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: GASOLINE CHAINSAW RAC56ORG-2 Serial number: 20200700001-20200700650 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives: EMC Directive 2014/30/UE Emission directive (EU) 2016/1628 &...
