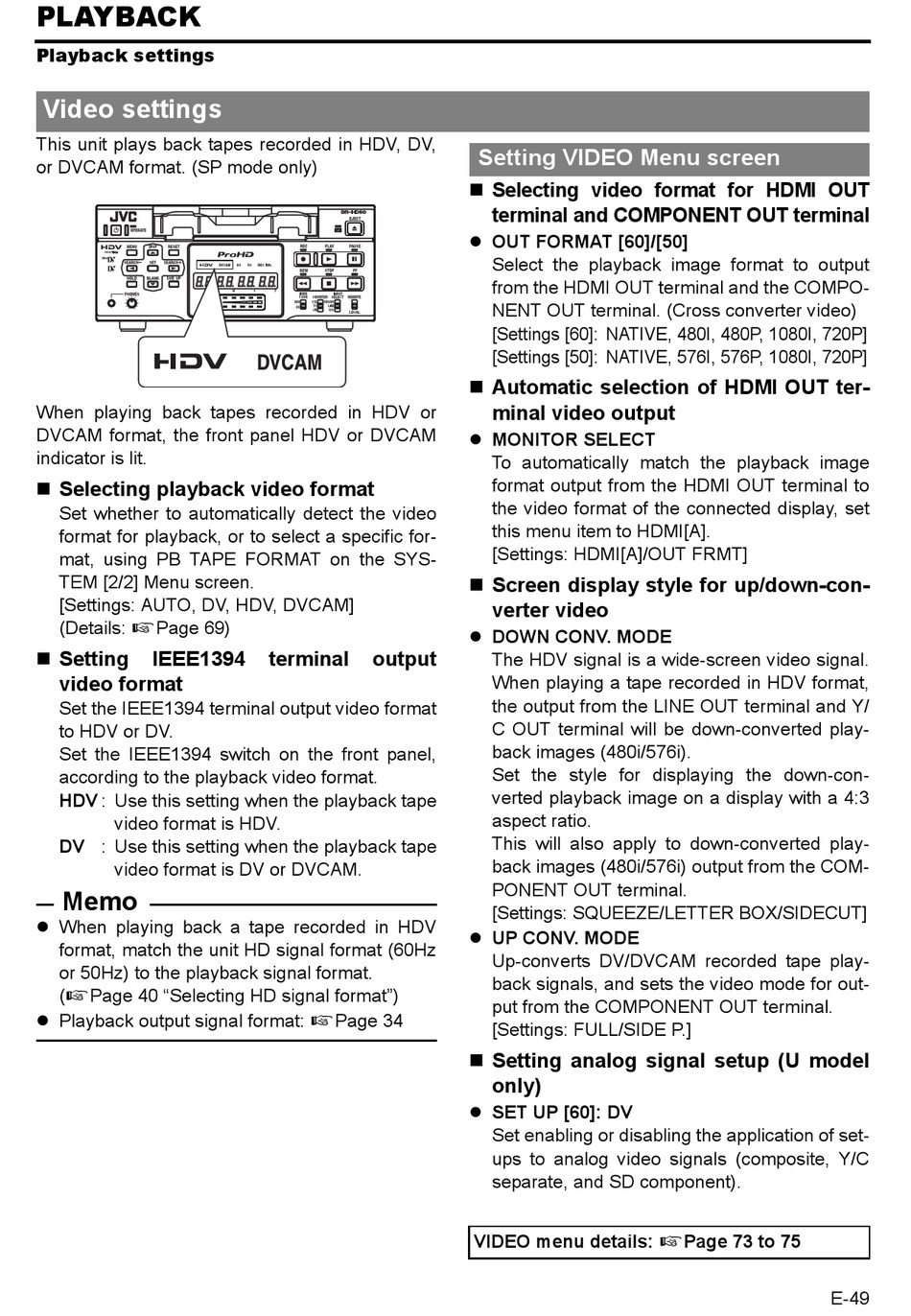

PLAYBACK

Playback settings

Video settings
This unit plays back tapes recorded in HDV, DV,
or DVCAM format. (SP mode only)
When playing back tapes recorded in HDV or
DVCAM format, the front panel HDV or DVCAM
indicator is lit.
Selecting playback video format
Set whether to automatically detect the video
format for playback, or to select a specific for-
mat, using PB TAPE FORMAT on the SYS-
TEM [2/2] Menu screen.
[Settings: AUTO, DV, HDV, DVCAM]
(Details: XPage 69)
Setting IEEE1394
video format
Set the IEEE1394 terminal output video format
to HDV or DV.
Set the IEEE1394 switch on the front panel,
according to the playback video format.
HDV : Use this setting when the playback tape
video format is HDV.
DV : Use this setting when the playback tape
video format is DV or DVCAM.
Memo
When playing back a tape recorded in HDV
format, match the unit HD signal format (60Hz
or 50Hz) to the playback signal format.
(XPage 40 "Selecting HD signal format")
Playback output signal format: XPage 34
terminal output
Setting VIDEO Menu screen
Selecting video format for HDMI OUT
terminal and COMPONENT OUT terminal
OUT FORMAT [60]/[50]
Select the playback image format to output
from the HDMI OUT terminal and the COMPO-
NENT OUT terminal. (Cross converter video)
[Settings [60]: NATIVE, 480I, 480P, 1080I, 720P]
[Settings [50]: NATIVE, 576I, 576P, 1080I, 720P]
Automatic selection of HDMI OUT ter-
minal video output
MONITOR SELECT
To automatically match the playback image
format output from the HDMI OUT terminal to
the video format of the connected display, set
this menu item to HDMI[A].
[Settings: HDMI[A]/OUT FRMT]
Screen display style for up/down-con-
verter video
DOWN CONV. MODE
The HDV signal is a wide-screen video signal.
When playing a tape recorded in HDV format,
the output from the LINE OUT terminal and Y/
C OUT terminal will be down-converted play-
back images (480i/576i).
Set the style for displaying the down-con-
verted playback image on a display with a 4:3
aspect ratio.
This will also apply to down-converted play-
back images (480i/576i) output from the COM-
PONENT OUT terminal.
[Settings: SQUEEZE/LETTER BOX/SIDECUT]
UP CONV. MODE
Up-converts DV/DVCAM recorded tape play-
back signals, and sets the video mode for out-
put from the COMPONENT OUT terminal.
[Settings: FULL/SIDE P.]
Setting analog signal setup (U model
only)
SET UP [60]: DV
Set enabling or disabling the application of set-
ups to analog video signals (composite, Y/C
separate, and SD component).
VIDEO menu details: XPage 73 to 75
