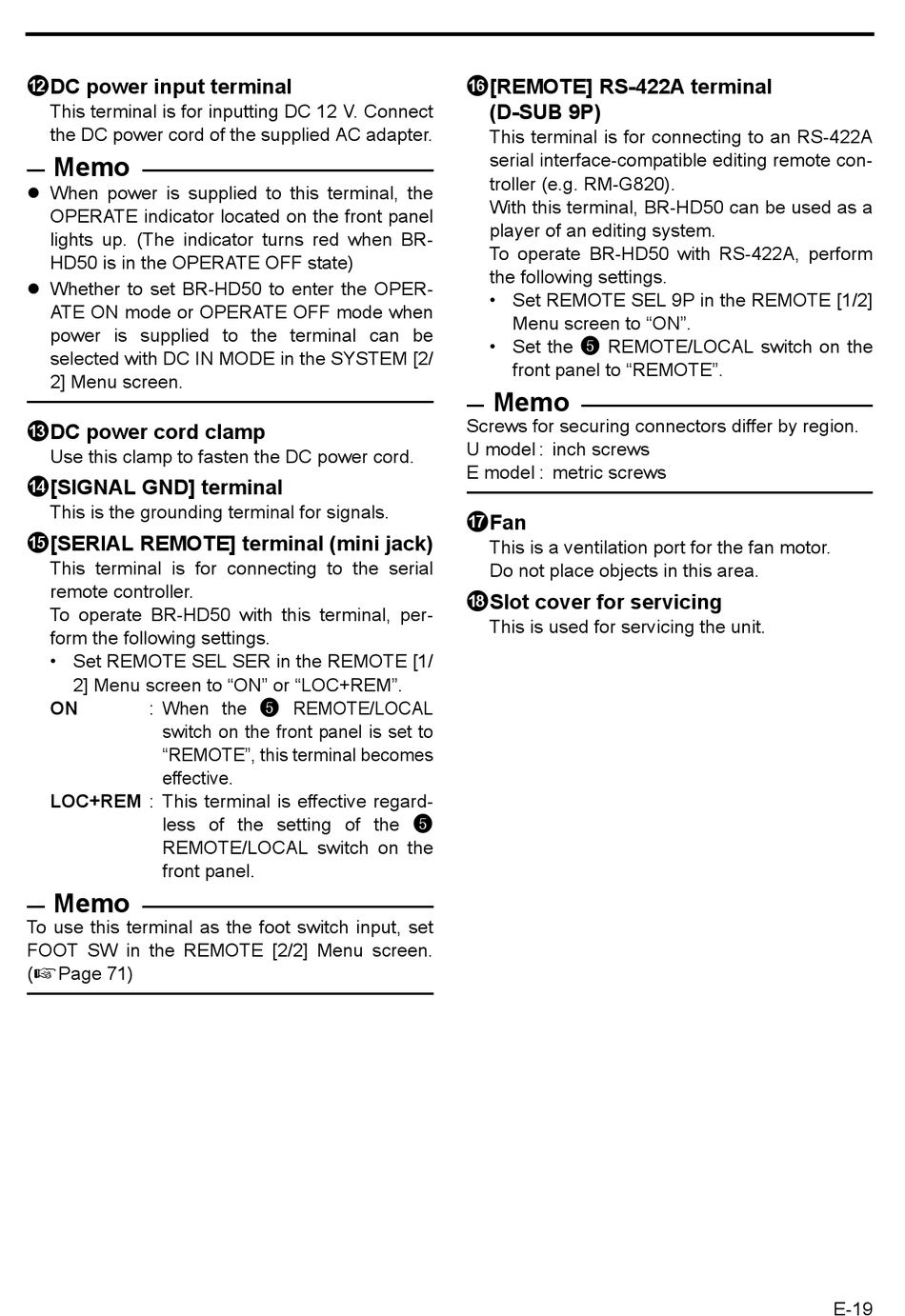

bDC power input terminal
This terminal is for inputting DC 12 V. Connect
the DC power cord of the supplied AC adapter.
Memo
When power is supplied to this terminal, the
OPERATE indicator located on the front panel
lights up. (The indicator turns red when BR-
HD50 is in the OPERATE OFF state)
Whether to set BR-HD50 to enter the OPER-
ATE ON mode or OPERATE OFF mode when
power is supplied to the terminal can be
selected with DC IN MODE in the SYSTEM [2/
2] Menu screen.
cDC power cord clamp
Use this clamp to fasten the DC power cord.
d[SIGNAL GND] terminal
This is the grounding terminal for signals.
e[SERIAL REMOTE] terminal (mini jack)
This terminal is for connecting to the serial
remote controller.
To operate BR-HD50 with this terminal, per-
form the following settings.
• Set REMOTE SEL SER in the REMOTE [1/
2] Menu screen to "ON" or "LOC+REM".
ON : When the 5 REMOTE/LOCAL
switch on the front panel is set to
"REMOTE", this terminal becomes
effective.
LOC+REM : This terminal is effective regard-
less of the setting of the 5
REMOTE/LOCAL switch on the
front panel.
Memo
To use this terminal as the foot switch input, set
FOOT SW in the REMOTE [2/2] Menu screen.
(XPage 71)
f[REMOTE] RS-422A terminal
(D-SUB 9P)
This terminal is for connecting to an RS-422A
serial interface-compatible editing remote con-
troller (e.g. RM-G820).
With this terminal, BR-HD50 can be used as a
player of an editing system.
To operate BR-HD50 with RS-422A, perform
the following settings.
• Set REMOTE SEL 9P in the REMOTE [1/2]
Menu screen to "ON".
• Set the 5 REMOTE/LOCAL switch on the
front panel to "REMOTE".
Memo
Screws for securing connectors differ by region.
U model : inch screws
E model : metric screws
gFan
This is a ventilation port for the fan motor.
Do not place objects in this area.
hSlot cover for servicing
This is used for servicing the unit.
E-19
