Summary of Contents for SKF LINCOLN 774

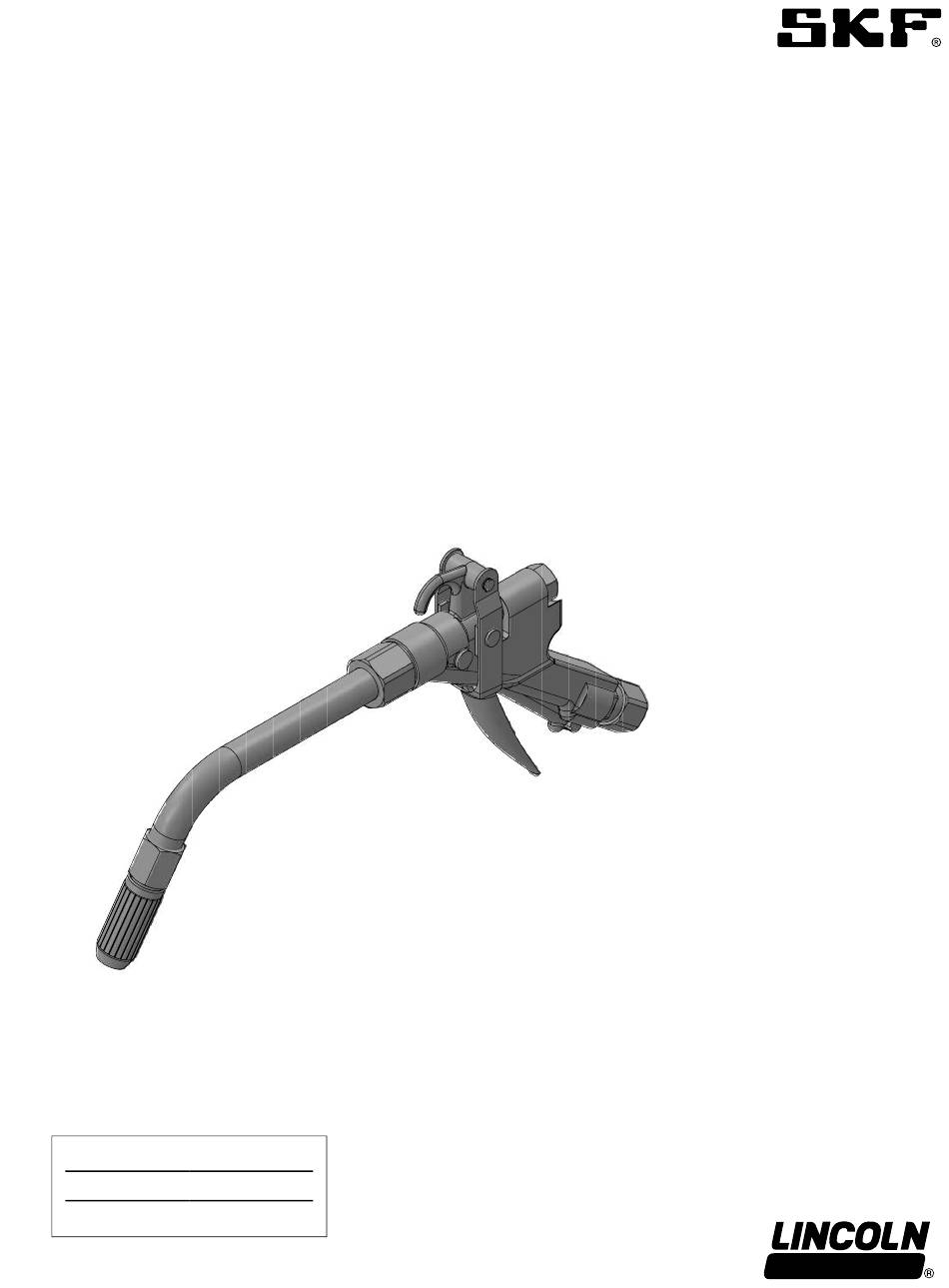

- Page 1 User and maintenance instructions Flow guns Models 774, 775, 776 and 82906 Model 774 shown Date of issue May 2023 Form number 404116 Version Indicates change...
-
Page 2: Table Of Contents
Contents Safety Explanation of signal words for safety Model 774 dimensions* Model 775 dimensions* Model 776 dimensions* Model 82906 dimensions* Operation Non-drip nozzle Troubleshooting* Parts list* Illustrated parts breakdown Warranty Indicates change... -
Page 3: Safety
Safety* Explanation of signal CAUTION Do not operate equipment without words for safety wearing personal protective gear The assembly must be installed, maintained Wear eye protection Protective and repaired exclusively by persons familiar equipment such as dust mask, non-skid with the instructions safety shoes, hard hat, or hearing pro- NOTE... -
Page 4: Model 774 Dimensions
Fig. 1* Model 774 dimensions For dispensing fluids Maximum operating pressure 1 000 psi 17 / in (445 mm) 9 in (229 mm) 7 / in (194 mm) 1 / in NP Indicates change Fig. 2* Model 775 dimensions For dispensing fluids Maximum operating pressure 1 000 psi 19 / in (495 mm) -
Page 5: Model 776 Dimensions
Fig. 3* Model 776 dimensions For dispensing fluids Maximum operating pressure 1 000 psi 25 / in (646 mm) 9 in (229 mm) 7 / in (194 mm) 1 / in NP / in NP Indicates change Fig. 4* Model 82906, series”C” dimensions For dispensing fluids Maximum operating pressure 1 000 psi 7 / in... -
Page 6: Operation
This kit will safely limit the pressures caused by thermal expansion Contact your local SKF representative and refer to manual 430260 for more details Failure to include thermal relief... -
Page 7: Parts List
Parts list* Item Description Part number Quantity Nozzle assembly 273508 Flow gun 82906 Extension 339149* Non-drip nozzle 277814* Nozzle and cap assembly 82932 Chain and washer nozzle 92655 Relief fitting assembly 5680 Nozzle cap 14920 Gasket OD x thick 34567 Non-drip nozzle assembly 82642 Hose assembly... -
Page 8: Illustrated Parts Breakdown
Fig. IPB 1* Model 774 Nozzle assembly Indicates change Fig. IPB 2* Model 775 Nozzle assembly Indicates change... - Page 9 Fig. IPB 3* Model 776 Non-drip nozzle assembly Indicates change Fig. IPB 4* Model 82906 13 14 15 16 17 18 19 20 Refer to manual 403221 for swivel 90464 Indicates change...
- Page 10 This page left intentionally blank...
- Page 11 This page left intentionally blank...
-
Page 12: Warranty
® SKF and Lincoln are registered trademarks of the SKF Group © SKF Group 2023 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted Every care has been taken to ensure the accuracy...
