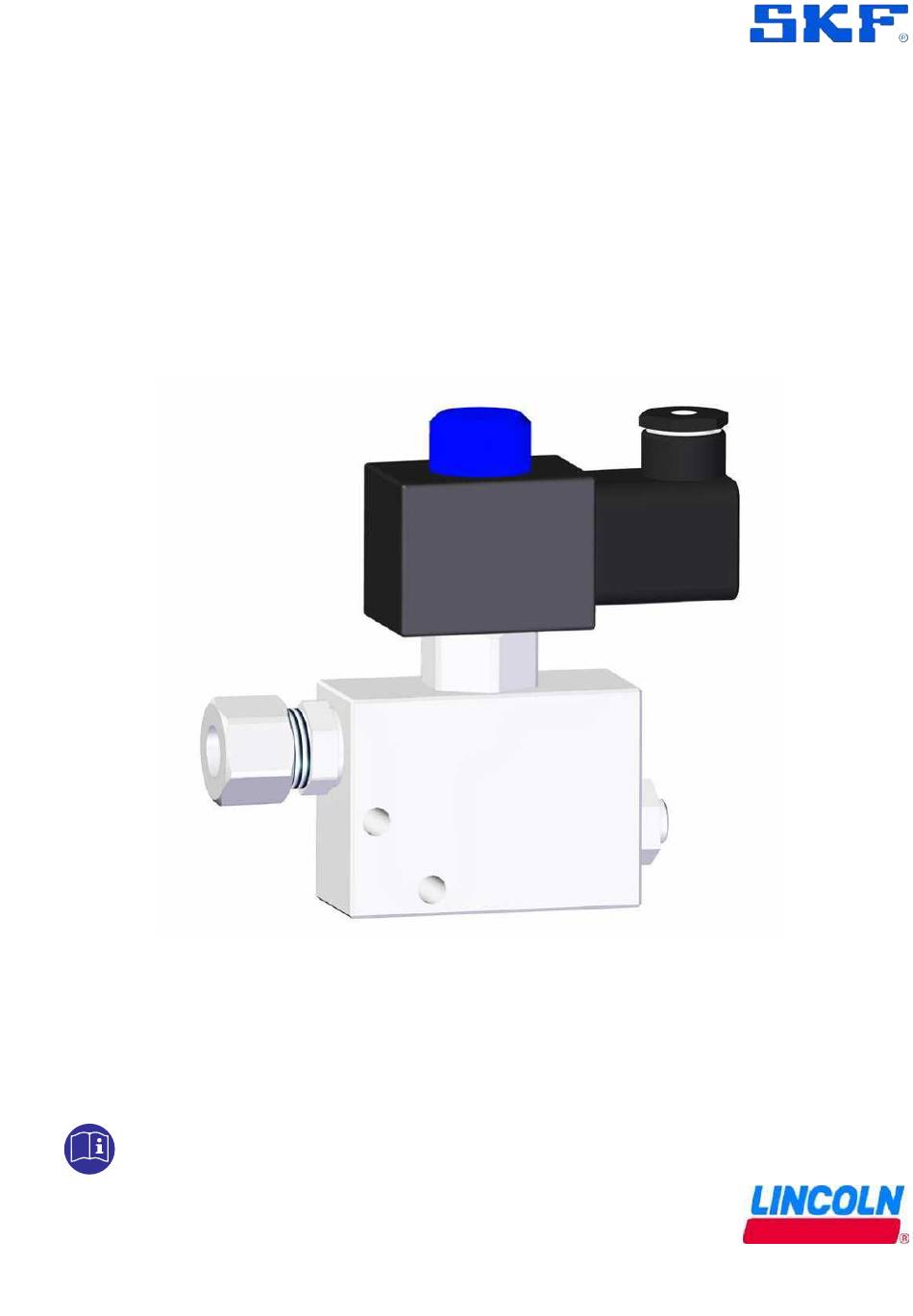

Owner's manual
Shut-off valve CLV-OS
Date:
Document no.:
Version:
Read this manual before
installing or commissioning the
product and keep it at hand for
later reference!
15.12.2023
CLV-OS_EN
2C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lincoln CLV-OS and is the answer not in the manual?

Questions and answers

Summary of Contents for SKF Lincoln CLV-OS

  • Page 1 Owner‘s manual Shut-off valve CLV-OS Date: 15.12.2023 Document no.: CLV-OS_EN Version: Read this manual before installing or commissioning the product and keep it at hand for later reference!
  • Page 2 13. Appendix ................. 14 Table of contents 13.1 China RoHS table ..............14 Table of contents ................2 Safety alerts, visual presentation, and layout ......... 3 1. Safety instructions ............... 4 1.1 General safety instructions ............ 4 1.2 General behavior when handling the product ....... 4 1.3 Intended use ................
  • Page 3 Safety alerts, visual presentation, and layout While reading these instructions, you will encounter various symbols, illustrations, and text layouts intended to help you navigate and understand the instructions. Their meaning is explained below. Safety alerts: Activities that present specific hazards (to life and limb or possible damage to property) are indicated by safety alerts.
  • Page 4: General Safety Instructions

    Unauthorized and disassembly. modifications and changes are therefore prohibited. Only original SKF spare parts and SKF accessories may be used. • Any unclear points regarding proper condition or correct 1.5 Foreseeable misuse assembly/operation must be clarified. Operation is prohibited until issues have been clarified.
  • Page 5: Emergency Shutdown

    • Repairs or modifications to the drive pressure gauges, min./max. markings, or oil level gauges must be • Alterations to the control circuit board beyond adjustment of clearly visible. Observe the mounting position requirements. lubrication times and interval times or replacement in case of defect Drill required holes only on non-critical, non-load-bearing parts of •...
  • Page 6: General Information

    2.6 Solid lubricants 2. Lubricants Solid lubricants may only be used after prior consultation with SKF. 2.1 General information When solid lubricants are used in lubrication systems, the following rules generally apply: Lubricants are selected specifically for the respective application.
  • Page 7: Overview, Functional Description

    3. Overview, functional description 3.1 General description CLV-OS is a bistable electrically controlled shut-off valve. In a lubrication system, the lubrication channels controlled by one pumping center are separated from each other with shut-off valves. The CLV-OS valve can also be used directly from the machine to be lubricated (interlocking), if needed.
  • Page 8: Technical Data

    Symbols and codes CLV-OS-xxx-yy-U Abbreviation Description CLV: Shut-off valve, Closing Line Valve Lubrication system type, SKF Safeoil xxx: control voltage, 24 V DC ±10% control voltage, 230 V AC ±10% 50 Hz De-energized closed, Normally Closed De-energized open, Normally Open no symbol connections, pipe Ø...
  • Page 9 Example: De-energised closed, normally closed Control voltage, 24 VDC Lubrication system type, SKF safe oil Closing line valve Connections: pipe Ø12 mm Table 4 Example Type Code CLV-OS-24-NC 12385995 CLV-OS-24-NO 12802640 CLV-OS-230-NC 12802620 CLV-OS-230-NO 12802630 CLV-OS-24-NC-U 12802650 CLV-OS-24-NO-U 12802660...
  • Page 10: Return Shipment

    5. Delivery, returns, storage 5.4 Storage temperature range For parts not filled with lubricant, the permitted storage 5.1 Delivery temperature is the same as the permitted ambient temperature range (see “Technical data”). After receipt of the shipment, it must be inspected for any shipping damage and for completeness according to the 5.5 Storage conditions for products filled shipping documents.
  • Page 11: First Start-Up

    Technical data 7. Operation 7.2 Manual operation If the SKF SAFEOIL system is designed with NC-type of shut-off The control voltage to the CLV-OS shut-off valve is connected valves, open the shut-off valve of the channel to be pressurized either from a lubrication control unit or from the interlocking before the pressurization of the piping so that the lubricant can system of the machine to be lubricated.
  • Page 12: Maintenance And Repair

    8. Maintenance and repair 8.1 Maintenance Regular and appropriate maintenance is a prerequisite to detect and clear faults in time. The specific timelines have to be determined, verified at regular intervals and adapted by the operator based on the operating conditions. If needed, use the below table for regular maintenance activities.
  • Page 13: Shutdown, Disposal

    10. Repairs 11. Shutdown, disposal < 11.1 Temporary shutdown WARNING Risk of injury Temporary shutdowns should be done by a course of action to At a minimum, the following safety measures be defined by the operator. must be taken before any repairs: •...
  • Page 14 13. Appendix 13.1 China RoHS table Table 9 China RoHS table...
  • Page 15 ® SKF and Lincoln are registered trademarks of the SKF Group. ™ eLube is a trademark of the SKF Group. © SKF Group 2023 Reprint or reproduction of the contents of this information - even in part - is permitted only with SKF's prior written consent.
