SKF Lincoln 85307 Installation Instructions Manual

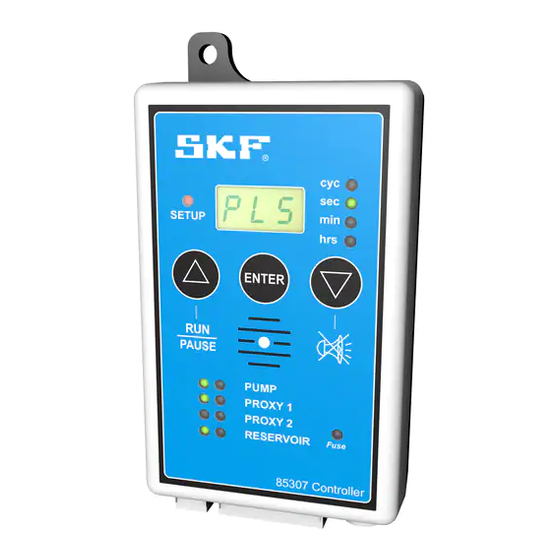

Electronic lubrication control unit. single line system
Hide thumbs Also See for Lincoln 85307:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Installation instructions
Electronic lubrication control unit
Model 85307; Single line system
Date of issue
July 2018
Form number
404773
Version
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lincoln 85307 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SKF Lincoln 85307

Summary of Contents for SKF Lincoln 85307

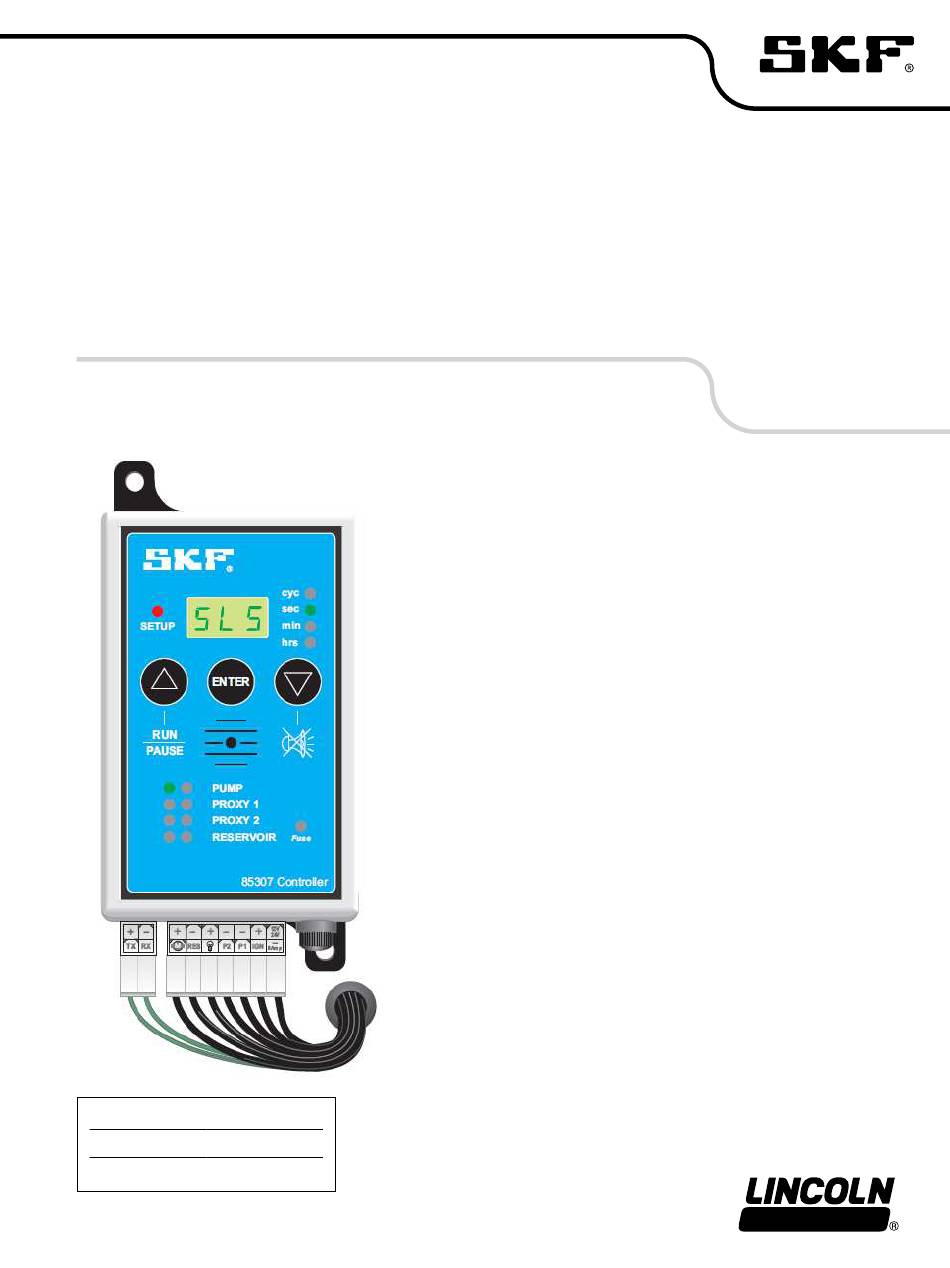

  • Page 1 Installation instructions Electronic lubrication control unit Model 85307; Single line system Date of issue July 2018 Form number 404773 Version...

  • Page 2: Table Of Contents

    Contents Description..... . . Speciications ....Features .

  • Page 3: Description

    Description Features Controller 85307 is a universal electronic • Runs progressive, single line and dual control unit compatible with dual line, single line lubrication systems. line parallel and progressive lubrication • Timing intervals from 5 seconds to systems. It gives lexibility and control over 24 hours.

  • Page 4: Safety

    Safety Explanation of signal WARNING  words for safety • Never weld on machine while main switch of machine is on. Ensure main Read and carefully observe operating switch is off and correctly tagged. instructions before unpacking and operating Welding on machine can cause equipment.

  • Page 5: Keypad Layout

    Fig. 1 Keypad layout Item Description Enter button Run/Pause Setup indicator Mounting bracket LED display Cycle indicator Second indicator Minute indicator Hour indicator Select value down or silent buzzer Blown fuse indicator Fuse holder 8A Power positive/negative Ignition input/Aux power output positive Sensor 1 positive/negative Sensor 2 positive/negative...

  • Page 6: Panel Description

    Panel description Fig. 2 SLS = single line systems SETUP Fig. 3 PLS = Progressive line systems SETUP Fig. 4 dls = dual line systems SETUP Fig. 5 n-O = normally open (sensors) SETUP Fig. 6 n-C = normally closed (sensors) SETUP...
  • Page 7 Fig. 7 L -S = External lamp steady (continues supply) SETUP Fig. 8 L -F = External lamp lashing (pulsed supply) SETUP Fig. 9 nFE = non fatal error (pump continues on Low Level Fault) SETUP Fig. 10 r = Run time in cycles SETUP Fig.
  • Page 8 Fig. 12 F = Fault time in seconds, minutes or hours SETUP Fig. 13 U = Vent time in seconds, minutes or hours SETUP Fig. 14 rCC = Run cycle counter SETUP Fig. 15 YES = Conirms program changes SETUP Fig.
  • Page 9 Fig. 17 t = Time out or dwell time for sensors SETUP Fig. 18 FE = fatal errors (pump stops on Low Level Fault) SETUP Fig. 19 nO = Do not select selection SETUP Fig. 20 r = Run time in seconds, minutes or hours SETUP Fig.

  • Page 10: Single Line System Using Pressure Switch

    Single line system using pressure switch Fig. 22 SETUP SETUP SETUP ENTER ENTER ENTER PAUSE PAUSE PAUSE PUMP PUMP PUMP PROXY 1 PROXY 1 PROXY 1 PROXY 2 PROXY 2 PROXY 2 RESERVOIR RESERVOIR RESERVOIR Fuse Fuse Fuse 85307 Controller 85307 Controller 85307 Controller 8Amp...
  • Page 11 Fig. 23 STEP 5 5 P (pause) appears in display. Press Δ to change time (Fig. 23 A). 6 Press ENTER to conirm pause time. In example, pause time of LED changes from seconds to minutes to hours. Amount 4 hours is conirmed (Fig. 23 B). displayed indicates what pause time functions at when applied.
  • Page 12 Fig. 24 SETUP SETUP ENTER ENTER PAUSE PAUSE PUMP PUMP PROXY 1 PROXY 1 PROXY 2 PROXY 2 RESERVOIR RESERVOIR Fuse Fuse 85307 Controller 85307 Controller 8Amp 8Amp 7 Run time will default to that of cycles. Display shows either 8 Pressure switch time out displays.
  • Page 13 Fig. 25 SETUP SETUP ENTER ENTER PAUSE PAUSE PUMP PUMP PROXY 1 PROXY 1 PROXY 2 PROXY 2 RESERVOIR RESERVOIR Fuse Fuse 85307 Controller 85307 Controller 8Amp 8Amp 10 n-O (normally open) displays indicating whether pressure switch 12 nO displays. Green LED on PROXY 2 illuminates. For 2nd proxy, is normally open or normally closed.
  • Page 14 Fig. 26 SETUP SETUP ENTER ENTER PAUSE PAUSE PUMP PUMP PROXY 1 PROXY 1 PROXY 2 PROXY 2 RESERVOIR RESERVOIR Fuse Fuse 85307 Controller 85307 Controller 8Amp 8Amp 16 U (vent) displays indicating time in seconds, minutes or hours of 17 nO displays.
  • Page 15 Fig. 27 SETUP SETUP ENTER ENTER PAUSE PAUSE PUMP PUMP PROXY 1 PROXY 1 PROXY 2 PROXY 2 RESERVOIR RESERVOIR Fuse Fuse 85307 Controller 85307 Controller 8Amp 8Amp 21 n-O displays indicating whether sensor is normally open or 23 FE (fatal error) or nFE (non fatal error) appears in display. normally closed.
  • Page 16 Fig. 28 SETUP SETUP ENTER ENTER PAUSE PAUSE PUMP PUMP PROXY 1 PROXY 1 PROXY 2 PROXY 2 RESERVOIR RESERVOIR Fuse Fuse 85307 Controller 85307 Controller 8Amp 8Amp 24 L - F (lamp lashing) displays. This option is for an external 26 tSt appears in display indicating test mode of setup procedure.

  • Page 17: Run Cycle Mode

    Run cycle mode Fig. 29 After power is terminated on unit and then switched on again, unit proceeds in run mode. All devices teen selected display (Fig. 29). NOTE After each cycle received, amount decreases by 1 until all cycles SETUP have been reached and unit proceeds to pause time.

  • Page 18: Running System (Pump Pause)

    Running system (pump pause) Fig. 31 Controller goes into pause time when required run time is reached. Pause time counts down from what it was setup for to zero and then resumes run time (Fig. 31). Green LED is steady next to PUMP indicating pump is there by not turning while in pause mode.

  • Page 19: Single Line Systems With Pressure Switch

    Diagram 1 Single line systems with pressure switch 24 V Item Description External warning Low level sensor Motor Power switch Power supply Pressure switch 1 Top row represents back of controller. Bottom row represents front of controller.

  • Page 20: Fault Indications

    Fig. 33 Fault indications Item Description Press RUN/PAUSE to reset faults. Fault indication - counts up from seconds to minutes to hours indicating how long fault has been active. Press down button to silence buzzer. Blown fuse indication. Replace with 8A fuse. Change fuse here.
  • Page 21 This page left intentionally blank.
  • Page 22 This page left intentionally blank.
  • Page 23 This page left intentionally blank.

  • Page 24: Warranty

    | lincolnindustrial.com ® SKF and Lincoln are registered trademarks of the SKF Group. © SKF Group 2018 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy of the information contained in this publication but no liability can be conirmed for any loss or damage whether direct, indirect or consequential arising out of the use of the information contained herein.
