EVM User's Guide: TMUXS7614DEVM
TMUXS7614D Evaluation Module
Description
The TMUXS7614DEVM is used to evaluate the
performance of the TMUXS7614D. The evaluation
module (EVM) comes with the TMUXS7614D device
soldered on. The EVM allows for engineers to easily
evaluate the TMUXS7614D for applications, such
as test and measurement. The TMUXS7614DEVM
connects to a USB2ANY
separately on ti.com) through the SPI_L_Connect
header. Users can choose to use an SPI with this
header if desired. Headers are also provided for
each of the source and drain pins. Multiple terminals
provide power to the device with an option for the user

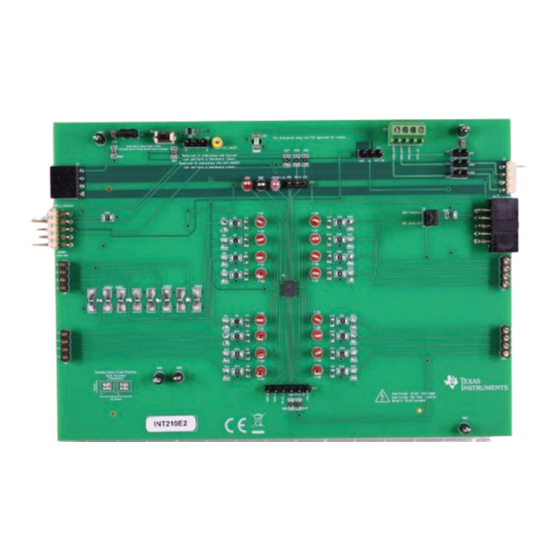

TMUXS7614DEVM (Top View)
SCDU039B – MAY 2024 – REVISED APRIL 2025
Submit Document Feedback
controller (ordered
Copyright © 2025 Texas Instruments Incorporated
to provide a defined digital logic supply voltage. The
digital logic supply voltage can be supplied from the
USB2ANY as well.
Features
• TMUXS7614D pre-soldered on board
• 16 test points on I/Os
• Four SMB connectors
• LED indicator for VL supply
• Reset button
• External PC control in tandem with TI evaluation
software
• SPI GUI
TMUXS7614DEVM (Bottom View)
Description
TMUXS7614D Evaluation Module 1
