User's Guide
TMUX-8RQX-EVM

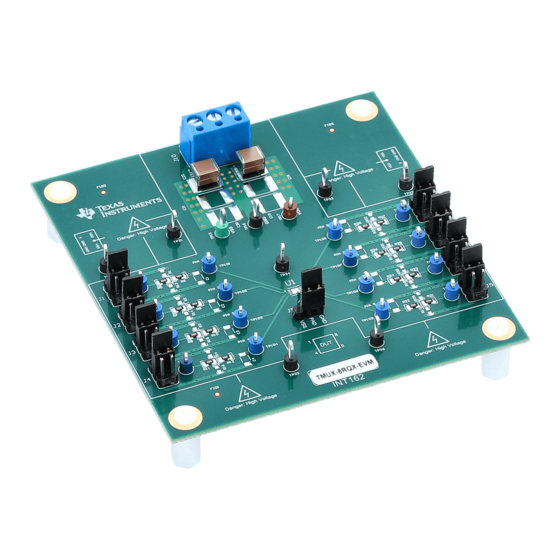

This document is the EVM user's guide for the TMUX-8RQX-EVM. This board is designed for TI's mid-voltage
analog switch and multiplexers in an 8-pin RQX package, which includes devices such as TMUX7219.
