Anzzi FR-AZ274 Installation Manual

FR-AZ274
Installation Guide
For more information visit
www.ANZZI.com or call
1-844-44-ANZZI

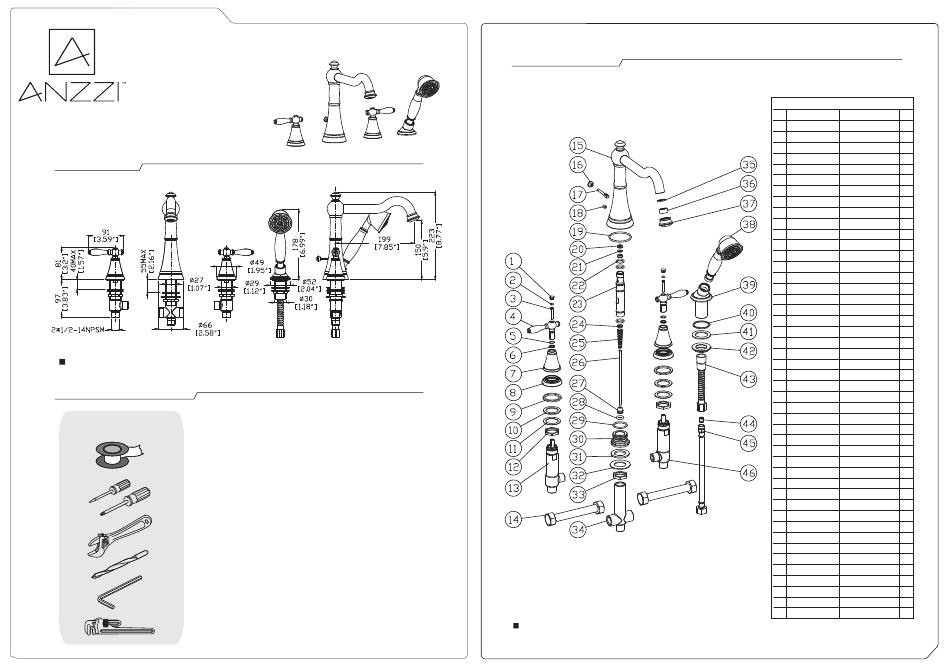

DIMENSIONS
For Reference only (unit = mm [inch] )
FAUCET MAINTENANCE
CARE INSTRUCTIONS
RECOMMENDED TOOLS
To keep your faucet looking its best, please follow
these simple care instructions:
DO:
1. Remove as much surface dirt and film using
clear water and a soft cotton cloth.
2. Use any of the following to remove tough
surface film and build-up:
- Mild liquid detergent
- Non-acidic, non-abrasive gentle liquid cleanser
- Non-abrasive liquid polisher.
3. Once clean, rinse faucet with clear water to
dry with soft cotton cloth.
DO NOT:
1. Use abrasive cleansers, cloths, or paper towels.
2. Use any cleaning agents containing acids, polish,
waxes, alcohol, ammonia, bleach, solvents or any
other corrosive or harsh chemical cleansers.
thoroughly remove cleaner or polish and blot
EXPLODED DRAWING
Please read the followings before installing and usage.
Notes For reference only. We reserve the right :
to make changes without any notice.
NO. Qty
Part No Part Desc
CTHB0064 CAP
01 2
CTRR0029 O-RING
02 2
CTST1013 SCREW
03 2
CTHZ0462 HANDLE
04 2
CTRR0149 O-RING
05 2
CTRP0082 CLIP
06 2
07 CTCZ0228 ESCUTCHEON 2
08 CTLZ0026 FLANGE 2
CTWR0025 WASHER
09 2
CTWR0276 WASHER
10 2
CTWT0065 WASHER
11 2
CTNT0022 NUT
12 2
13 ATBA0177-XR CARTRIDGE 1
14 ATBP0157 HOSE 2
15 ATBF0172 SPOUT 1
16 CTHB0067 PULL KNOB 1
CTMB0679 PULL ROD
17 1
CTST0137 SCREW
18 1
19 CTRR0055 O-RING 1
20 CTRR0138 GASKET 2
21 CTWB0048 WASHER 1
22 CTRR0082 O-RING 3
23 CTPB0468 SHANK 1
24 CTRP0067 RING 1
25 1
CTBT0077 SPRING
26 CTMB0593 ROD 1
27 CTDB0133 BASE 1
28 CTRR0139 O-RING 1
29 CTRR0137 O-RING 1
30 CTDB0131 BASE SEAT 1
31 1
CTWR0217 WASHER
32 1
CTWT0038 WASHER
33 1
CTNB0156 NUT
34 CTPB0427 SHANK 1
35 CTWR0021 WASHER 1
36 CTQP0029 REGULATOR 1
1
37 CTXB0043 HOUSING
38 1
ATBE0043 SHOWER
39 1
CTDB0042 HOLDER
40 1
CTWR0060 WASHER
41 1
CTWR0061 WASHER
42 CTNB0016 NUT 1
43 ATBP0070 HOSE 1
44 1
ATBA0100 CHECK VALVE
45 1
ATBP0071 HOSE
46 1
ATBA0177-XD CARTRIDGE
