Summary of Contents for Anzzi SP-AZ075

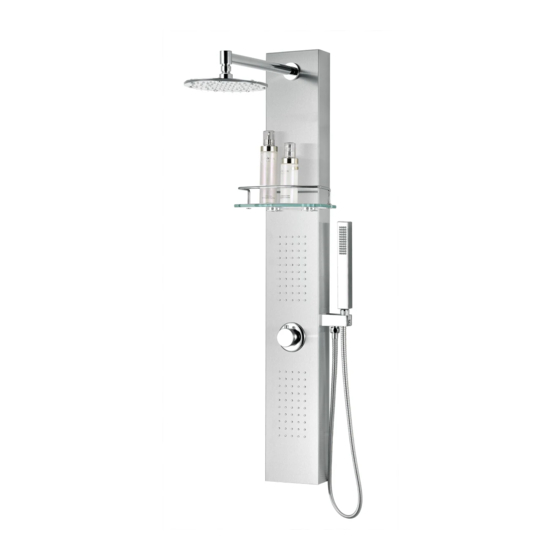

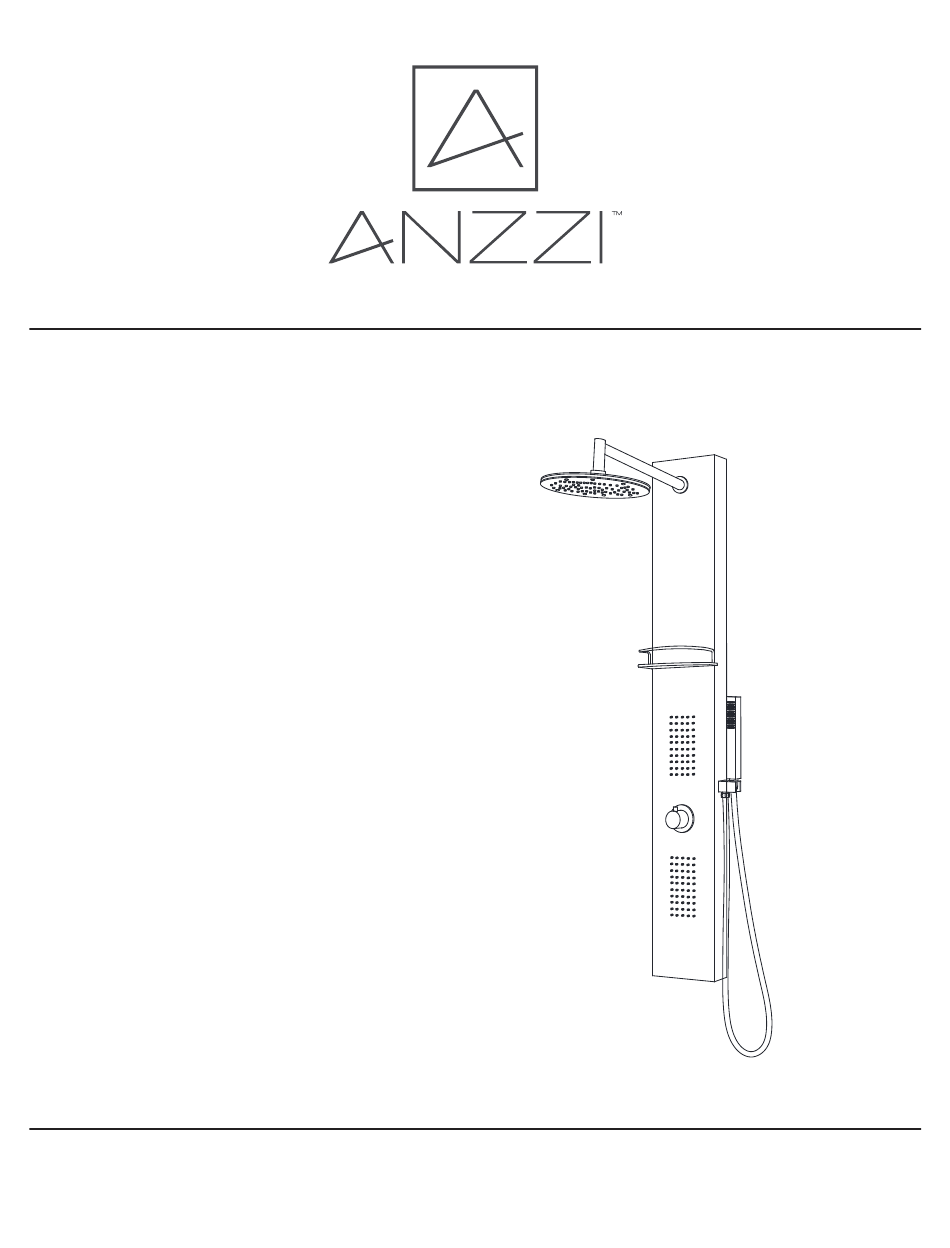

- Page 1 INSTALL GUIDE Model# SP-AZ075 SP-AZ8104 PERFECTION IS OUR TRADITION™ v2.0516...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
PARTS LIST Component no. Component Material head shower arm bar brass flange brass body one way joint clip pvc hose clamp brass glass shelf tempered glass knob plate cover knob zinc body jet fixing bar function cartridge faucet brass hand shower hand shower holder flexible hose 1. -
Page 4: Before You Start
Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2... -
Page 5: Spec Drawing
SPEC DRAWING 20.18" Perfection is our Tradition™ SP-AZ0?? Material: Stainless Steel Finish: Brushed Handles: 1 Jets: Shower: Ø7.677” Sprayer: 60” reach Weight: 14.11 lbs Height: 43.31” Supply: 1/2” connections 5.91" Flow: 2.5 gpm Features Heavy Rain™ Showerhead Acu-Stream™ high pressure body jets Euro-Grip™... -
Page 6: Installation
INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”... - Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver tighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
- Page 8 INSTALLATION (HANDSHOWER) Figure 1 Step 1A Insert the shower wand holder through the pre-drilled hole on the shower panel. Step 1B Install the water supply hose for the shower wand onto the holder, as shown. Step 1C Make sure all O-rings are inserted to prevent leakage. Step 1D Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection.
- Page 9 INSTALLATION (HANDSHOWER) Figure 2 1 Setting 3 Setting Hand Hand Shower Shower Step 2A Finally, install the shower wand to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
- Page 10 INSTALLATION (SHOWER HEAD) Figure 3 Step 3A Install the shower arm to the shower panel, using the rubber washer and nut on the opposite side to tighten. Step 3B Makes sure the shower arm is sitting correctly before installed the shower head. Step 3C Screw the shower head onto the shower arm.
- Page 11 INSTALLATION Figure 4 Remove the old existing shower head and shower head arm assembly Step 4A Step 4B Hold the plastic base against the wall, connect the 1/2" brass extender joint to the existing outlet. Use waterproof plumbing tape to secure the connection and prevent leaks PERFECTION IS OUR TRADITION™...
- Page 12 INSTALLATION (WALL MOUNTING) Figure 5 Carefully hang the shower panel on the secured mounting brackets . PERFECTION IS OUR TRADITION™ pg. 10...
- Page 13 INSTALLATION Figure 6 Step 6 Connect shower panel water supply hose to the existing plumbing PERFECTION IS OUR TRADITION™ pg. 11...
-
Page 14: Care & Maintenance
CARE AND MAINTENANCE ANZZI™ products are crafted with superior quality standards and workmanship and are engineered to stand the test of time. However, that does not mean the product can be neglected and will need some care and cleaning. It is recommended to use regular soap and hot water along with a non-abrasive cloth or sponge to regularly clean the product. -
Page 15: Warranty
ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective. - Page 19 Email..................I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
- Page 20 Perfection is our Tradition™...
