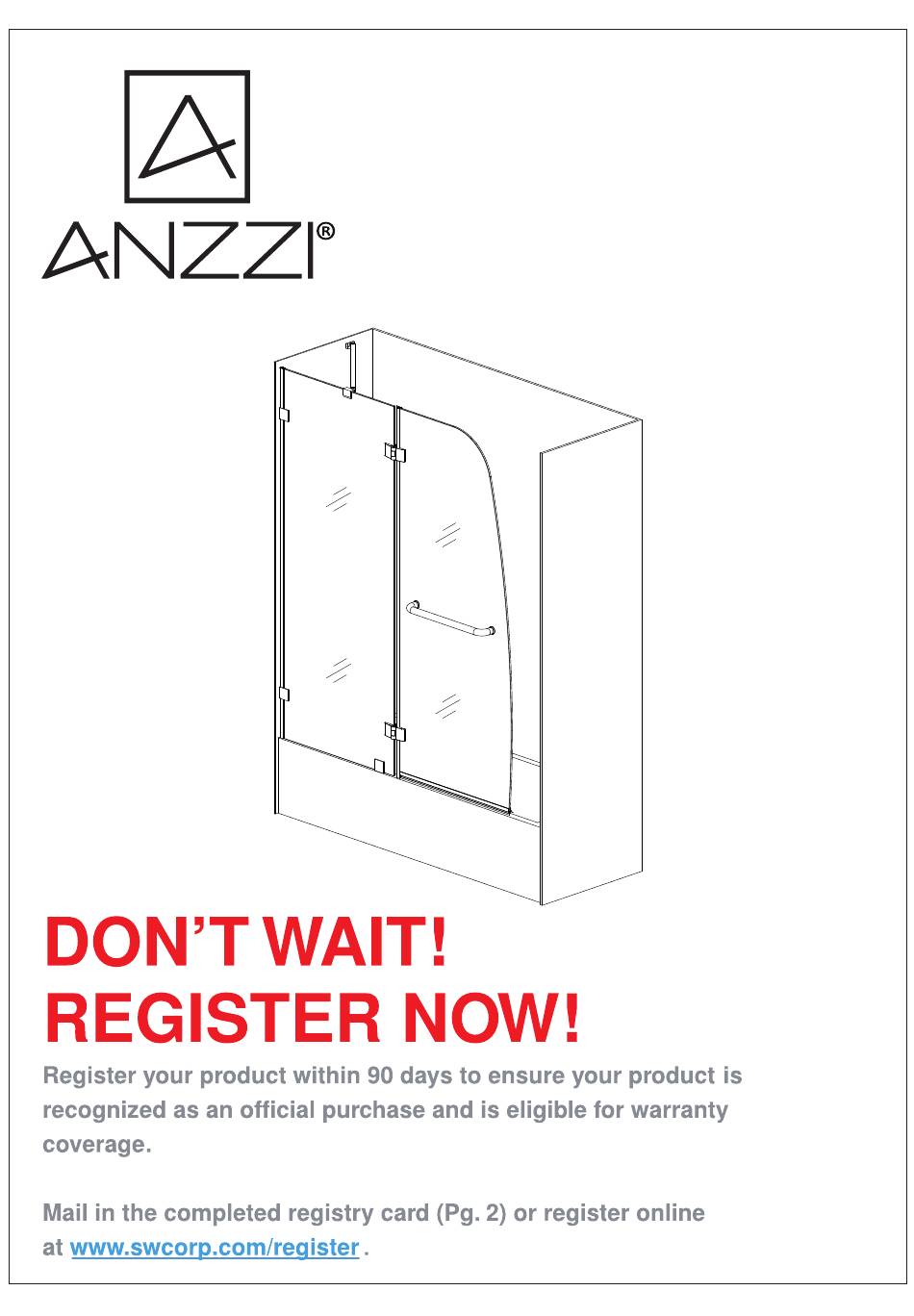

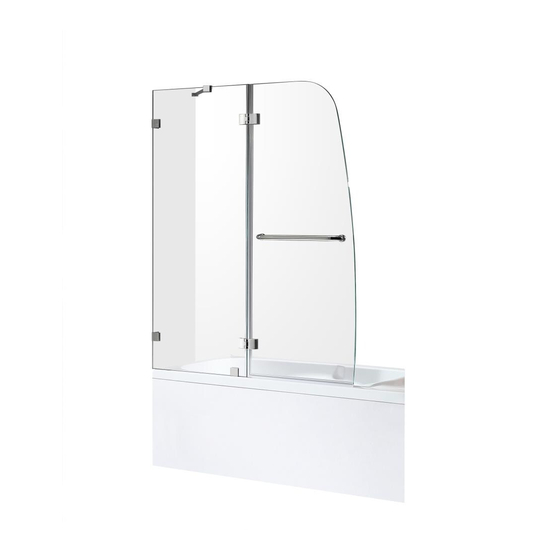

- Page 1 ITEM: SD-AZ11-01**(SD-AZ8076-01**) ANZZI GLASS SHOWER DOOR INSTALLATION & OPERATION MANUAL V2.0 10/30/2022 V 2.0-This version supersedes all previous versions as of 10/30/2022...
- Page 4 eye protection...
- Page 5 1"(25.4mm）...
- Page 6 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. [01]x1 [07]x1 [10]x1 [12]x1 [06]x1 [09]x1 [02]x1 [03]x2 [04]x3 [05]x3 [08]x2 [11]x1 ST5x40 [13]x1 [14]x1 [15]x1 [16]x1 [17]x1 ST4x20...
- Page 7 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Part Qty. Part Description Qty. Description [01] [12] Bumper Strip Fixed Panel [02] [13] Screw ST4x20 Support Bar [03] [14] Small Anchor 6x28 Glass Support [04] [15]...
- Page 8 SD-AZ11-01**(SD-AZ8076-01**) 48"x58" 48"[1220mm] 23.4"[595mm] 23.6"[600mm] 6.6"[167mm] 6.6"[167mm] 7.1"[180mm] 3.9"[100mm] 15.7"[400mm] 57.4"[1458mm] 58"[1473mm] 42.7"[1086mm] 27.5"[700mm] 7.1"[180mm] 5.9"[151mm] 6.6"[167mm] 2.9"[73mm]...
- Page 9 To avoid personal injury or property damage, identify components and read all instructions before installing. This model requires a minimum 1" (25.4mm) of tub deck space for installation. This manual shows left side installation. For right side installation, transpose all instructions.
- Page 10 This shower door must be mounted to a stud. Minimum threshold space is required. IMPORTANT: Using a stud finder, ensure the wall intended to hold the door has a stud at the installation point. A stud in this location must be identified to mountthe support bar in order to proceed with the installation.
- Page 11 Place Anchor 2 of Fixed Panel Bottom Clip [11] to the marked location and mark the screw hole on the deck. (Fig 3.1) Remove Anchor 2 and drill a 1/8" hole at the marked location if drilling into acrylic or wood.
- Page 12 Loosenthe screwsat the back of the Clamp until it isn't protruding fromthe side of groove and push it into the Fixed Panel [01] until it stops. Adjust the Support Bar [02] until the Fixed Seat touches the wall surface and the angle formed by the wall and the Support Bar [02] is about 45°.
- Page 13 Gently place the Door Panel [07] on the deck with 0.6" thickness Pads(not provided) between. Remove the Screws of Hinge Assembly [08] and install to the Fixed Panel [01] and Door Panel [07] as figure shows. Install the Hinge, Gasket 2 and Sleeve from the outside and Gasket 1 andClamp from the inside.
- Page 14 Carefully remove the Corner Protectors from the Door Panel [07] and attach the Hinge-Side Vinyl Seal [06] to the side of it. (Fig 6.1) Make sure the Hinge-Side Vinyl Seal [06] is 0.1" above the Deck and the Flange of the Hinge-Side Vinyl Seal [06] is behind the Fixed Panel [01].
- Page 15 Disassemble the Handle Set [10] and install to the Door Panel [07]. Install Handle, Flange and Gasket 1 through the front of Door Panel [07]. Install Gasket 2, Knob and Lever through the back of Door Panel [07]. (Fig 7.1, Fig 7.2) Apply a good quality Silicone Sealant at the inner corner formed by the Deck and Fixed Panel [01].
- Page 16 with a soft cloth after using...
