Anzzi KF-AZ031 Installation Manual

Perfection is our Tradition
1-844-44-ANZZI or visit www.ANZZI.com
Step 4 Parts list
3
2
4
1
5
6
7
9
10
17
18
19
20
21
22
23
24
25
2
T M
NO. PART NAME
1 Shower
2 Shower hose
3 Shower sleeve
4 Spout
5 Ring
6 O-ring
7 Connector
8 Holding ring
9 Ring
11
10 Body
12
13 11 Index
12 Screw
8
13 Handle
14
14 Trim cap
15
Cartridge locknut
15
Cartridge
16
16
17 Base
18 O-ring
19
Threaded sleeve
20 Copper tube
21 Quick connect
22
Plastic base
23 Gasket assembly
24 Lock nut
25 Screw
26 Weight
27 Allen key
27
26

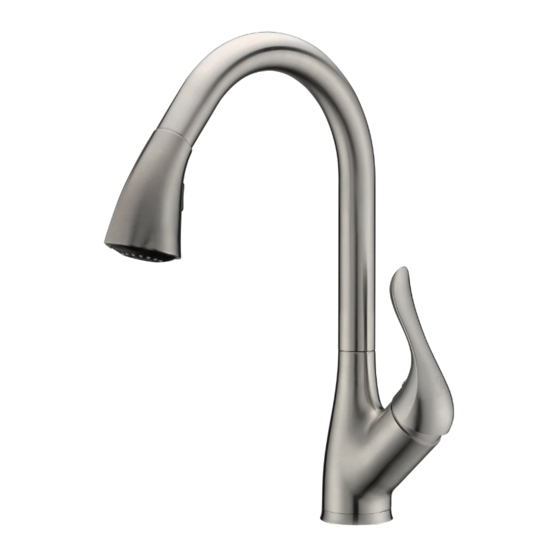

SINGLE HANDLE PULL-DOWN
KITCHEN FAUCET
ASME A112.18.1/CSA B125.1
The tools might be applied to the following places:
KF-AZ031
INSTALLATION MANUAL
RECOMMENDED TOOLS
Screwdriver Channel Locks Goggles
WARNING:
Please keep the
tool for future
use!
Adjustable Wrench Teflon tape Allen key
Attention:
for easy installation, you will need:
1.To read all the installation instruction completely before
beginning.
2.To read all the warning, attention and maitenance
information.
