Anzzi FR-AZ073 Installation Manual

FR-AZ073
Installation Guide
For more information visit
www.ANZZI.com or call
1-844-44-ANZZI

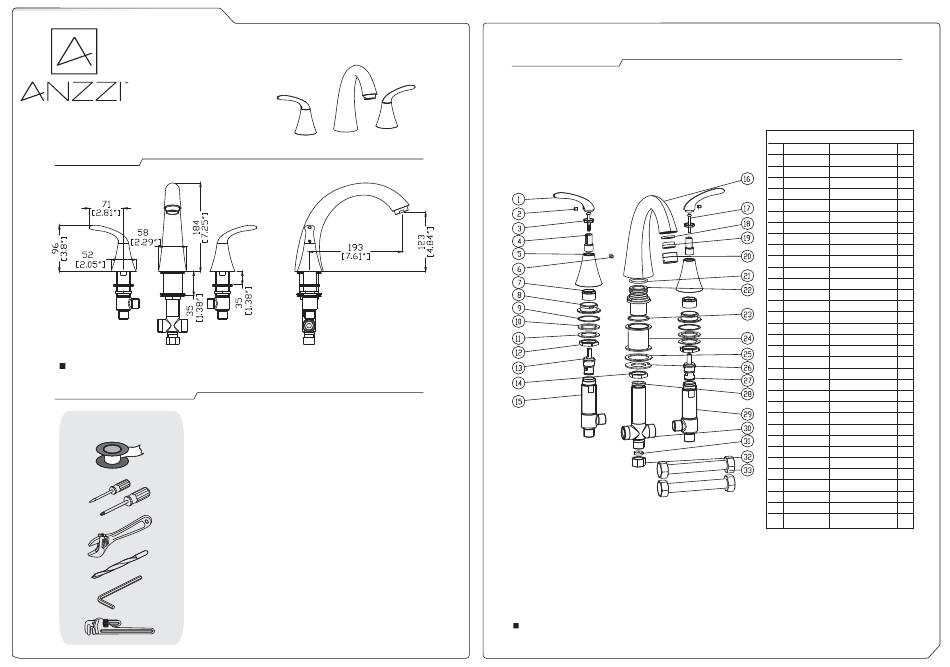

DIMENSIONS
For Reference only (unit = mm [inch] )
FAUCET MAINTENANCE
CARE INSTRUCTIONS
RECOMMENDED TOOLS
To keep your faucet looking its best, please follow
these simple care instructions:
DO:
1. Remove as much surface dirt and film using
clear water and a soft cotton cloth.
2. Use any of the following to remove tough
surface film and build-up:
- Mild liquid detergent
- Non-acidic, non-abrasive gentle liquid cleanser
- Non-abrasive liquid polisher.
3. Once clean, rinse faucet with clear water to
dry with soft cotton cloth.
DO NOT:
1. Use abrasive cleansers, cloths, or paper towels.
2. Use any cleaning agents containing acids, polish,
waxes, alcohol, ammonia, bleach, solvents or any
other corrosive or harsh chemical cleansers.
thoroughly remove cleaner or polish and blot
EXPLODED DRAWING
Please read the followings before installing and usage.
Notes For reference only. We reserve the right :
to make changes without any notice.
NO. Part No Part Desc Qty
CT HZ0474 HANDLE
01 2
CTST0117 SCREW
02 2
CTCP0429 CAP
03 2
CTCZ0237 STEM
04 2
CTCZ0163 CAP
05 2
06 CTST013 7 SCREW 1
CTNZ0004 NUT
07 2
CTNB0326 NUT
08 2
CTWR0347 WASHER
09 2
10 CTWR0276 WASHER 2
11 CTWT0065 WASHER 2
CTNT0022 NUT
12 2
ATBA0128 CARTRIDGE
13 1
14 CTNB0156 NUT 1
15 CTPB0500 VAVLE 1
CTFB0222 SPOUT
16 1
CTST0182 SCREW
17 2
18 CTWR0018 WASHER 1
19 CTQP0030 AERATOR 1
20 CTXB0021 AERATOR COVER 1
CTRR0137 O RING
21 1
-
22 CTTB0035 SEATING 1
23 CTWR0060 WASHER 1
24 CTCT0035 HOUSING 1
25 CTWR0115 WASHER 1
26 CTWT0038 WASHER 1
27 ATBA0127 CARTRIDGE 1
28 CTWR0146 WASHER 1
29 CTPB0501 VAVLE 1
30 1
CTPB0427 SHANK
31 CTWR0088 WASHER 1
32 CTTB0014 PLUG 1
33 ATBP0157 HOSE 2
