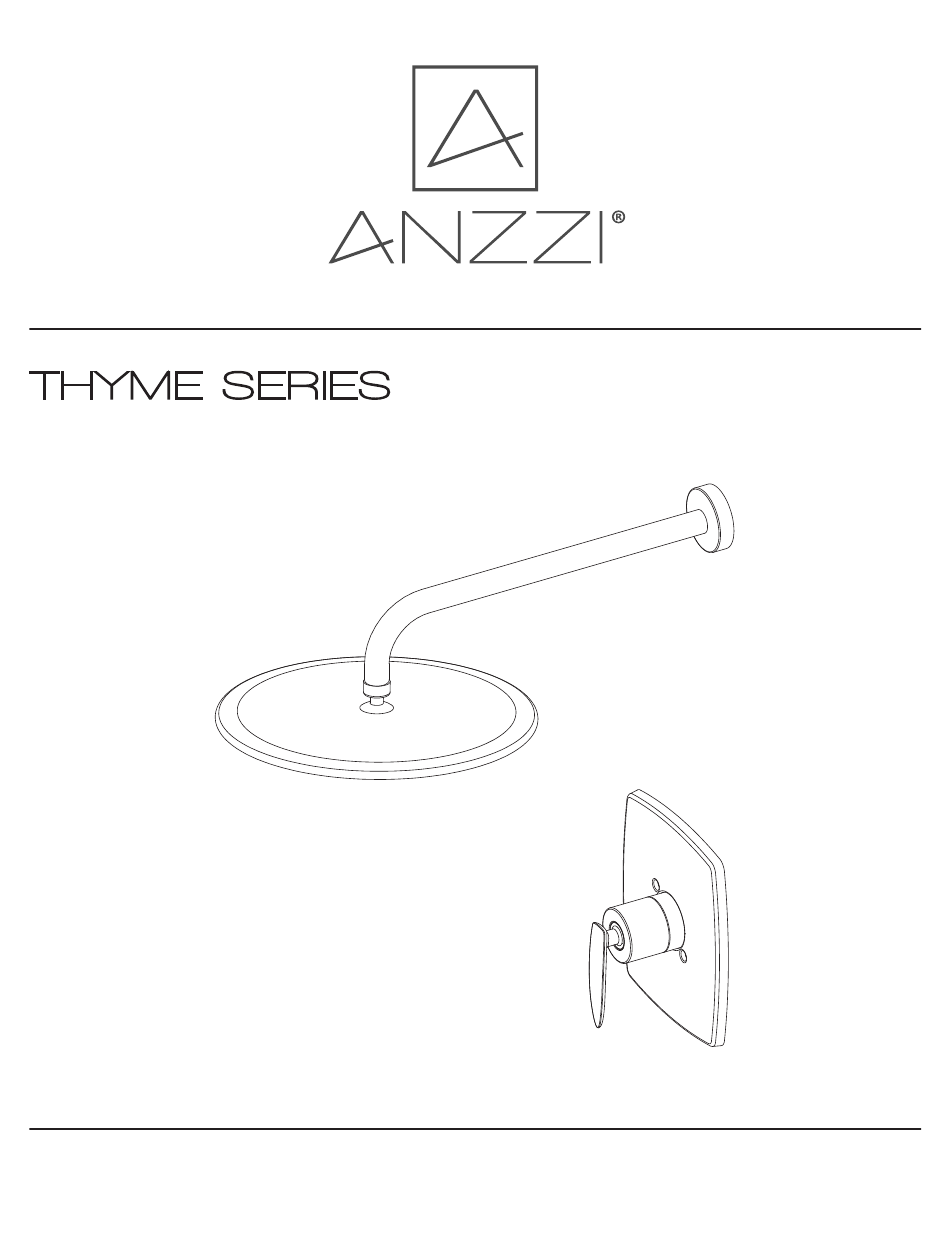

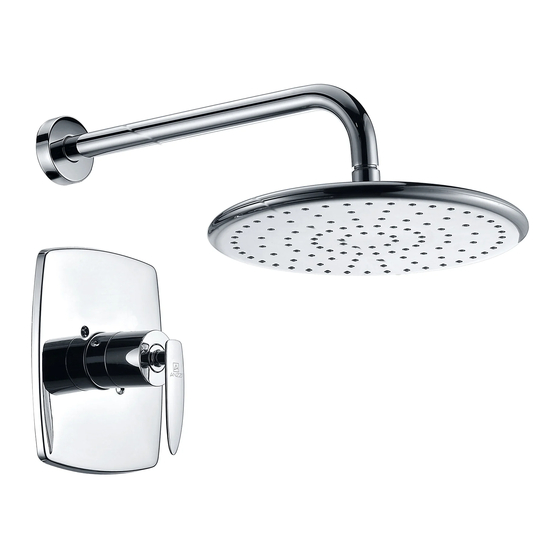

- Page 1 THYME SERIES INSTALL GUIDE Model# SH-AZ030 PERFECTION IS OUR TRADITION™ v3.0521...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI® Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
PARTS LIST NO . PART NAME Flange Shower arm Shower head Screw Protect cover Cartridge locknut Handle adapter Cartridge Sleeve Body Check valve Washer End cap Handle Trim plate Joint Joint Screw O-ring ASME A112.18.1/CSA B125.1 PERFECTION IS OUR TRADITION™ pg. -
Page 4: Before You Start
BEFORE YOU START Recommended Items Screwdriver Channel Locks Goggles Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 305-614-4070. -
Page 5: Spec Drawing
SPEC DRAWING [inches] PERFECTION IS OUR TRADITION™ pg. 3... -
Page 6: Installation
INSTALLATION Figure 1 Step 1A Remove the protective covers (5a) by turning counter clockwise and sliding them out. Step 1B Do not remove protective cover (5b) until you make sure the cover is flush with the finished wall. Step 1C Using a Philips screwdriver, unscrew and remove the two screws (4). - Page 7 INSTALLATION Figure 2 Step 2A Connect all plumbing lines to the faucet valve as shown. Step 2B Make sure the hot and cold supply lines are connected to the pertaining sides. PERFECTION IS OUR TRADITION™ pg. 5...
- Page 8 INSTALLATION Figure 3 Step 3A Turn on water and allow it to run for 1-2 minutes. Step 3B Check all connections and confirm there are no leaks before proceeding. PERFECTION IS OUR TRADITION™ pg. 6...
- Page 9 INSTALLATION Figure 4 O-r i n g O - ring Step 4A Apply Teflon tape to the shower arm (#2) then place shower arm flange (#1) on shower pipe and screw shower arm to the pipe. Step 4B After shower arm is in place screw the shower head (#3) onto the arm. Important: Make sure the O-ring is placed in between the shower arm (#2) and the shower head (#3).
- Page 10 INSTALLATION Figure 5 O- ring Step 5A Put the trim plate (#14) through the faucet valve then fasten it with screws (#17) and tighten using screw driver. Step 5B Place the mixing valve handle (#13), secure with set screw (#12). Step 5C Finally, insert the index (#20).
- Page 11 INSTALLATION Blank Page PERFECTION IS OUR TRADITION™ pg. 9...
- Page 12 INSTALLATION Figure 7 FINAL Check the connections pointed by the arrows for any kind of leaks and re-tighten if necessary. Important: Please make sure not to over tighten. PERFECTION IS OUR TRADITION™ pg. 10...
-
Page 13: Care & Maintenance
Wipe all surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and dry any overspray that lands on nearby surfaces. DO NOT ALLOW THE CLEANER TO SOAK. Following these simple principles will ensure you ANZZI product will remain as lustrous and stun - ®... -
Page 14: Warranty
® Perfection is our Tradition™ *Shipping and handling fees are not covered under the ANZZI® Warranty. This warranty is in effect as of January, 2016. This warranty supersedes all previous warranties and/or claims both stated and implied. This warranty is subject to change without notice. - Page 15 PRODUCT AND WARRANTY REGISTRATION To register your product and activate your Limited Lifetime Warranty contact us at 305-614-4070 or email us at support@ANZZI.com. Or, if preferable, fill out the form below then scan/fax/mail us a copy. Email: support@ANZZI.com In need of replacement parts?
- Page 16 Perfection is our Tradition™...
