Anzzi FR-AZ473 Installation Manual

FR-AZ473 FR-AZ473
Installation Guide Installation Guide
For more information visit For more information visit
TM
www.ANZZI.com or call www.ANZZI.com or call
1-844-44-ANZZI 1-844-44-ANZZI
NITE 3 PC SINGLE LEVER ROMAN
TUB FILLER FAUCET W/TRANSFER VALVE
DIMENSIONS
n For Reference only (unit = mm [inch] )
FAUCET MAINTENANCE
CARE INSTRUCTIONS
RECOMMENDED TOOLS
To keep your faucet looking its best, please follow
these simple care instructions:
DO:
1. Remove as much surface dirt and film using
2. Use any of the following to remove tough
3. Once clean, rinse faucet with clear water to
DO NOT:
1. Use abrasive cleansers, cloths, or paper towels.
2. Use any cleaning agents containing acids, polish,
clear water and a soft cotton cloth.
surface film and build-up:
- Mild liquid detergent
- Non-acidic, non-abrasive gentle liquid cleanser
- Non-abrasive liquid polisher.
thoroughly remove cleaner or polish and blot
dry with soft cotton cloth.
waxes, alcohol, ammonia, bleach, solvents or any
other corrosive or harsh chemical cleansers.

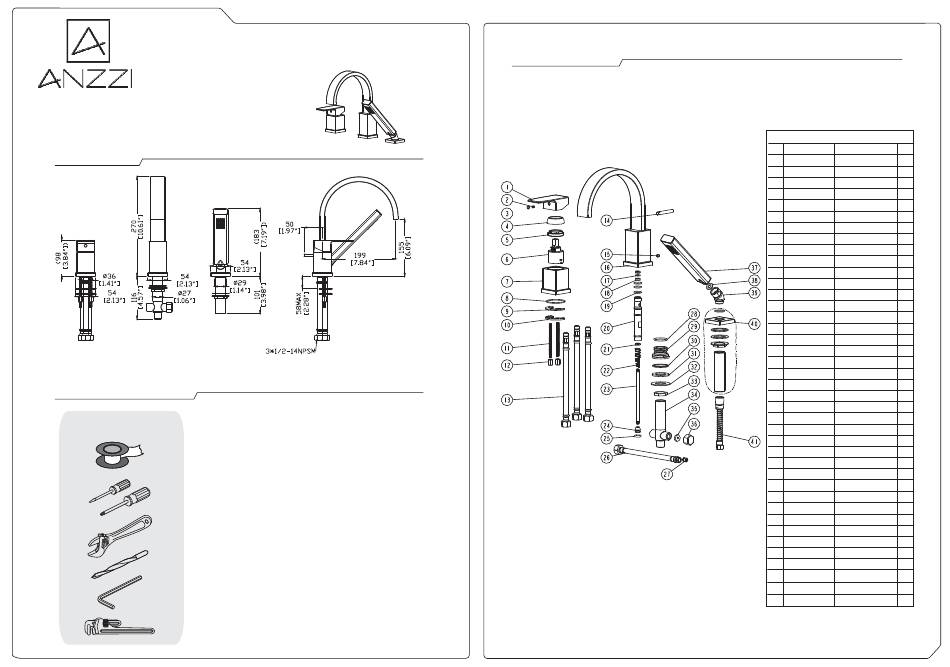

EXPLODED DRAWING
Please read the followings before installing and usage.
n Notes For reference only. We reserve the right
:
to make changes without any notice.
NO. Qty
Part No Part Desc
1
CTHZ0340 HANDLE
01
1
CTST0117 SCREW
02
1
CTCP0072 CAP
03
1
CTCB0185 COVER
04
1
CTKB0065 RETAINER
05
1
ATBA0042 CARTRIDGE
06
1
CTYB0692 BODY
07
1
08 CTRR0085 O-RING
1
CTWR0282 GASKET
09
1
CTWT0071 GASKET
10
2
CTST0013 SCREW
11
2
12 CTNB0321 NUT
3
13 ATBP0312 HOSE
1
CTMB0588 PULL-ROD
14
1
CTST0153 SCREW
15
1
16 ATBF0195 SPOUT
1
17 CTWB0048 WASHER
2
18 CTRR0138 SEAL
3
CTRR0082 O-RING
19
1
20 CTPB0468 SHANK
21 1
CTRP0067 RING
1
22 CTBT0077 SPRING
1
23 CTMB0593 ROD
1
24 CTDB0133 BASE
1
25 CTRR0139 O-RING
1
26 ATBP0311 HOSE
1
27
ATBA0100 CHECK VALVE
1
28 CTRR0137 O-RING
1
29 CTDB0131 SEAT
1
30 CTWR0060 WASHER
1
31
CTWR0217 WASHER
1
32
CTWT0038 WASHER
1
33 CTNB0156 NUT
34 1
CTPB0188 SHANK
35 1
CTWR0088 WASHER
36 1
CTTB0014 STOP
37 1
ATBE0245 SHOWER
38 1
CTWR0341 WASHER
39 1
ATBL0026 CONNECTOR
40 1
ATBD0080 HOLDER
41 1
ATBP0070 HOSE
