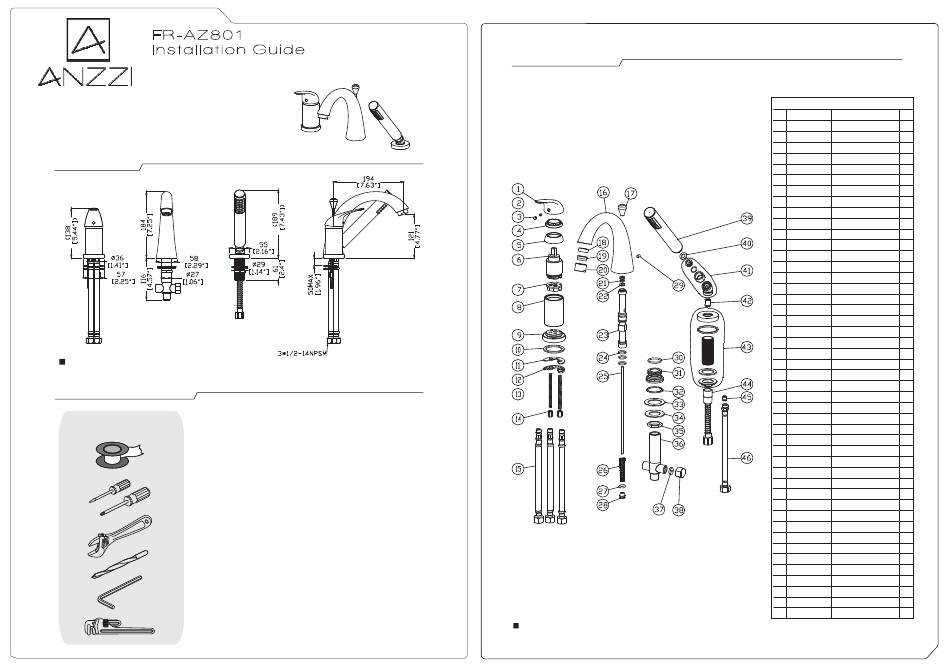

Anzzi FR-AZ801 Installation Manual

FR-AZ801
Installation Guide
TM
DIMENSIONS
For Reference only (unit = mm [inch] )
FAUCET MAINTENANCE
CARE INSTRUCTIONS
RECOMMENDED TOOLS
To keep your faucet looking its best, please follow
these simple care instructions:
DO:
1. Remove as much surface dirt and film using
clear water and a soft cotton cloth.
2. Use any of the following to remove tough
surface film and build-up:
- Mild liquid detergent
- Non-acidic, non-abrasive gentle liquid cleanser
- Non-abrasive liquid polisher.
3. Once clean, rinse faucet with clear water to
dry with soft cotton cloth.
DO NOT:
1. Use abrasive cleansers, cloths, or paper towels.
2. Use any cleaning agents containing acids, polish,
waxes, alcohol, ammonia, bleach, solvents or any
other corrosive or harsh chemical cleansers.
thoroughly remove cleaner or polish and blot
EXPLODED DRAWING
Please read the followings before installing and usage.
Notes For reference only. We reserve the right :
to make changes without any notice.
NO. Part No Qty
Part Desc
CTHZ0312 HANDLE
01 1
CTST0117 SCREW
02 1
CTCP0072 CAP
03 1
CTKB0065 RETAINER
04 1
CTCP0192 COVER
05 1
ATBA0138 CARTRIDGE
06 1
07 ATBA0169 CHECK VALVE 1
08 CTCB0704 SLEEVE 1
CTDB0468 BASE SEAT
09 1
CTWR0156 WASHER
10 1
CTWR0282 GASKET
11 1
CTWT0071 GASKET
12 1
13 CTST0013 SCREW 2
14 CTNB0321 NUT 2
15 ATBP0312 HOSE 3
16 CTFB0220 SPOUT 1
CTHB0269 TIP
17 1
CTWR0018 WASHER
18 1
19 CTQP0030 FLOW REGULATOR 1
20 CTXB0021 HOUSING 1
2 1
CTWB0089 WASHER 1
22 CTRR0138 WASHER 2
23 CTPB0549 SHANK 1
24 CTRR0082 O-RING 3
25 1
CTMT0044 LIFT ROD
26 CTBT0070 SPRING 1
27 CTRR0139 O-RING 1
28 CTDB0133 STOP 1
29 CTST0137 SCREW 1
30 CTRR0137 O-RING 1
31 1
CTDB0131 BASE SEAT
32 1
CTWR0060 WASHER
33 1
CTWR0115 WASHER
34 CTWT0038 WASHER 1
35 CTNB0156 NUT 1
36 CTPB0188 SHANK 1
1
37 CTWR0088 WASHER
38 1
CTTB0014 BLOCK
39 1
ATBE0141 SHOWER
40 1
CTWR0341 WASHER
41 1
ATBL0026 ADAPTER
42 ATBA4028 CHECK VALVE 1
43 ATBD0093 HOLDER 1
44 1
ATBP0070 HOSE
45 1
ATBA0100 CHECK VALVE
46 1
ATBP0311 HOSE
