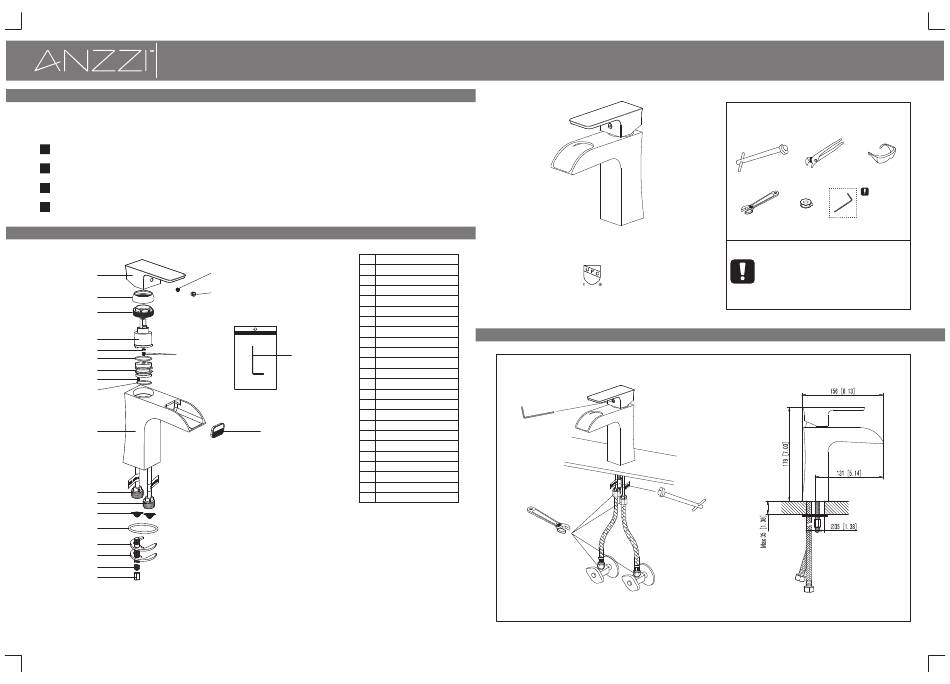

Anzzi L-AZ019 Installation Manual

Perfection is our Tradition
1-844-44-ANZZI or visit www.ANZZI.com
Step 3 Cleaning and care
Daily cleaning and care are required in order to keep the product shining and
properly working.
1 Clean it with water and dry it with soft cloth.
2 Clean the product with gentle liquid or glass cleaner.
Don't use acid cleaner.
3
4 Don't clean with abrasive material, abrasive paper or knife.
Step 4 Parts list
2
1
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
22
T M
NO. PART NAME
1 Handle
2 Screw
3 Index
Trim cap
4
5 Cartridge lock nut
Cartridge
6
7 Flow restricter
8 Screen filter
O-ring
9
23
Cartridge seat
10
11 Screw
O-ring
12
Body
13
14 Aerator
Copper tube(hot water)
15
16 Copper tube(cold water)
14
Mesh
17
O-ring
18
19 Rubber washer
20 Clamp
21 Screw
22 Lock nut
23 Allen key
SINGLE HANDLE LAVATORY FAUCET
ASME A112.18.1/CSA B125.1
The tools might be applied to the following places:
L-AZ019
INSTALLATION MANUAL
RECOMMENDED TOOLS
Basin wrench Channel Locks Goggles
WARNING:
Please keep the
tool for future
use!
Adjustable Wrench Teflon tape Allen key
Attention:
for easy installation, you will need:
1.To read all the installation instruction completely before
beginning.
2.To read all the warning, attention and maitenance
information.
3.To purchase the proper supply lines.
