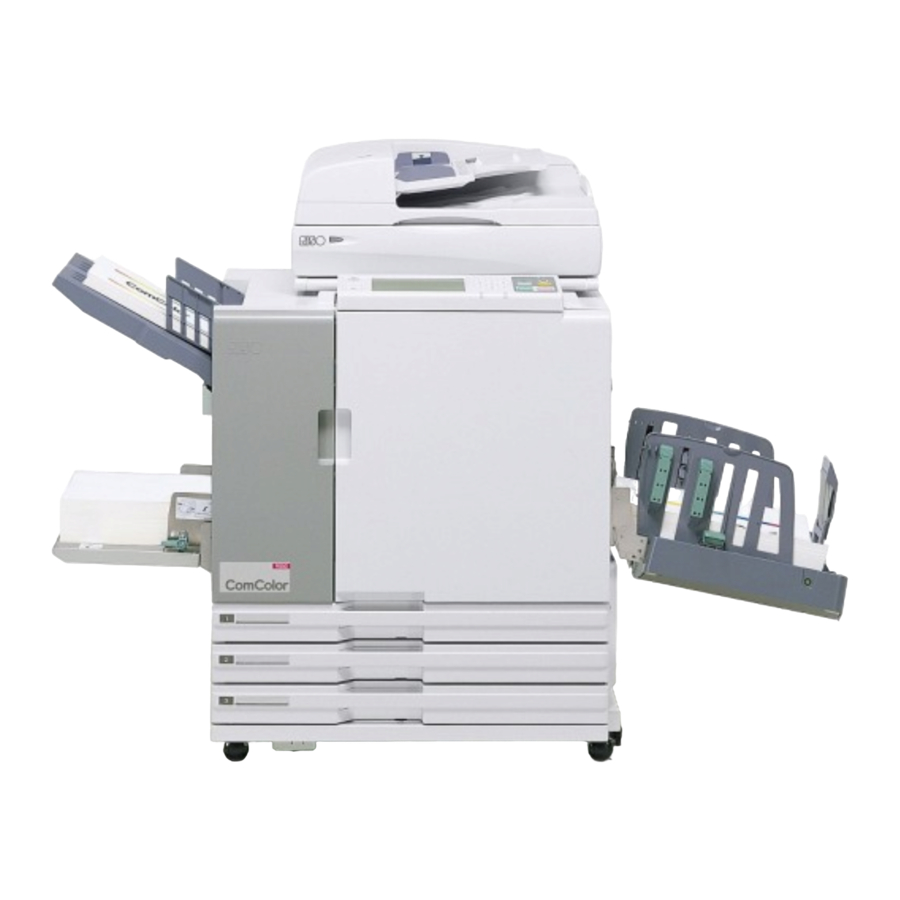

Riso Comcolor Series, Comcolor 3050 / 3010 Manual

A4 / A3 Producing a Copy

Please note: Comcolor models 3050 and 3010 will not print full A3 size as they have a maximum print width of 210mm. Model 3010 is equipped with a single paper feed tray

1. Load the original(s) in the ADF of the Comcolor scanner in the following orientation:


2. Select "Copy" Mode
   Please note login may be required.

3. The "Copy Mode" panel will now appear:

   1. The "Color Mode" should be set to "Auto" This can be changed to "Black" if you want to convert colour documents to black and white
   2. "Feed Tray" should be set to "Auto"
      In this setting the output paper size will be matched to your original size.

4. Select number of copies required.

   1. Press green "Start" button
   2. Press red "Pause" button to pause job if required

Enlarging A4 to A3

Please note: Comcolor models 3050 and 3010 will not print full A3 size as they have a maximum print width of 210mm. Model 3010 is equipped with a single paper feed tray

1. Load the A4 original(s) in the ADF of the Comcolor scanner in the following orientation:


2. Select "Copy" Mode
   Please note login may be required.

3. The "Copy Mode" panel will now appear:

   1. The "Color Mode" should be set to "Auto" This can be changed to "Black" if you want to convert colour documents to black and white
   2. Select "Reproduction Size"
      Choose: 141% A4 - > A3
      Select OK
   3. Select "Feed Tray"
   4. Choose the Feed Tray containing A3 size (normally Feed Tray 3) Select OK
4. Select number of copies required.

   1. Press green "Start" button

Reducing A3 to A4

1. Load the A3 original(s) in the ADF of the Comcolor scanner in the following orientation:


2. Select "Copy" Mode
   Please note login may be required.

3. The "Copy Mode" panel will now appear:

   1. The "Color Mode" should be set to "Auto" This can be changed to "Black" if you want to convert colour documents to black and white
   2. Select "Reproduction Size"
      Choose: 71% A3 - > A4
      Select OK
   3. Select "Feed Tray"
   4. Choose a Feed Tray containing A4 size
4. Select number of copies required.

   1. . Press green "Start" button

Producing Double Sided Copies

1. Firstly complete sections A to C.

   1. Select "Duplex / Simplex"
2. The "Duplex / Simplex" panel will appear:
   1. In the "Original" sec on one of the following:

      1. "Simplex" if your originals are single sided
      2. "Duplex" if your originals are double-sided.
   2. In the "Output" sec on one of the following:

      1. "Simplex" if you require single sided copies
      2. "Duplex" if you require double-sided copies.
   3. For duplex originals and/or copies specify how pages are turned in "Paging Direction"

      1. Select "Left / Right"

      2. Select "Top / Bo om"

   4. Press "OK"

Multi -up

1. Firstly complete sections A to C
   1. Select "Functions" Tab

2. 1. In "Functions" select "Multi -up"

   2. In "Multi -up" select one of the following:

      1. "Plural" to copy multiple images of different pages onto a single sheet
      2. "Single" to copy multiple images of the same original onto a single sheet.
   3. In "Pages / Sheet" specify how many images to be placed on one sheet:

      1. Select 2, 4, or 8 images per sheet
      2. "Output Image show a preview of the image with current settings applied.
   4. Press "OK"

Stapling

(Optional finishing unit required)

1. Firstly complete sections A to C
   1. Select "Functions" Tab

2. 1. In "Functions" select "Staple / Punch"

   2. In the "Multi -up" sec on
      1. In "Binding Side" select side of sheet(s) to be stapled. Choose "Left, Right or Upper"

      2. In "Staple" select stapling op on: Choose "1 Position" or "2 Position"


   3. Press "OK"

General Machine Care

Cleaning the Scanner Glass
Ensure both sections of scanner glass (shown here in blue) are kept clean to avoid marks on copies

Using the Scanner
When using the scanner place originals face up and as far into the document feeder as possible
Ensure side guides are firm against the originals

Loading Paper
Always ensure the guides on the paper tray are firm against the paper
The locking levers must be in the down position

Paper
When reloading paper stock always use complete reams of fresh paper.
DO NOT USE any of the following

• Paper that is damp or curled
• Glossy or coated papers
• Film or transparencies

Operational Panel Layout
