THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
60 minutes approx
assembly time
This product is intended for domestic use only , not for commercial purposes.
Tall Storage Unit
Two adults
assembly required
Range Name:ISLA
Box 1 Dimensions:W91.5 x D49x H22(cm)
Product Dimensions:W40 x D30x H170(cm)
Page 1-19
V-2.0
Advertisement
Related Manuals for DUSK ISLA Tall Storage Unit
Summary of Contents for DUSK ISLA Tall Storage Unit

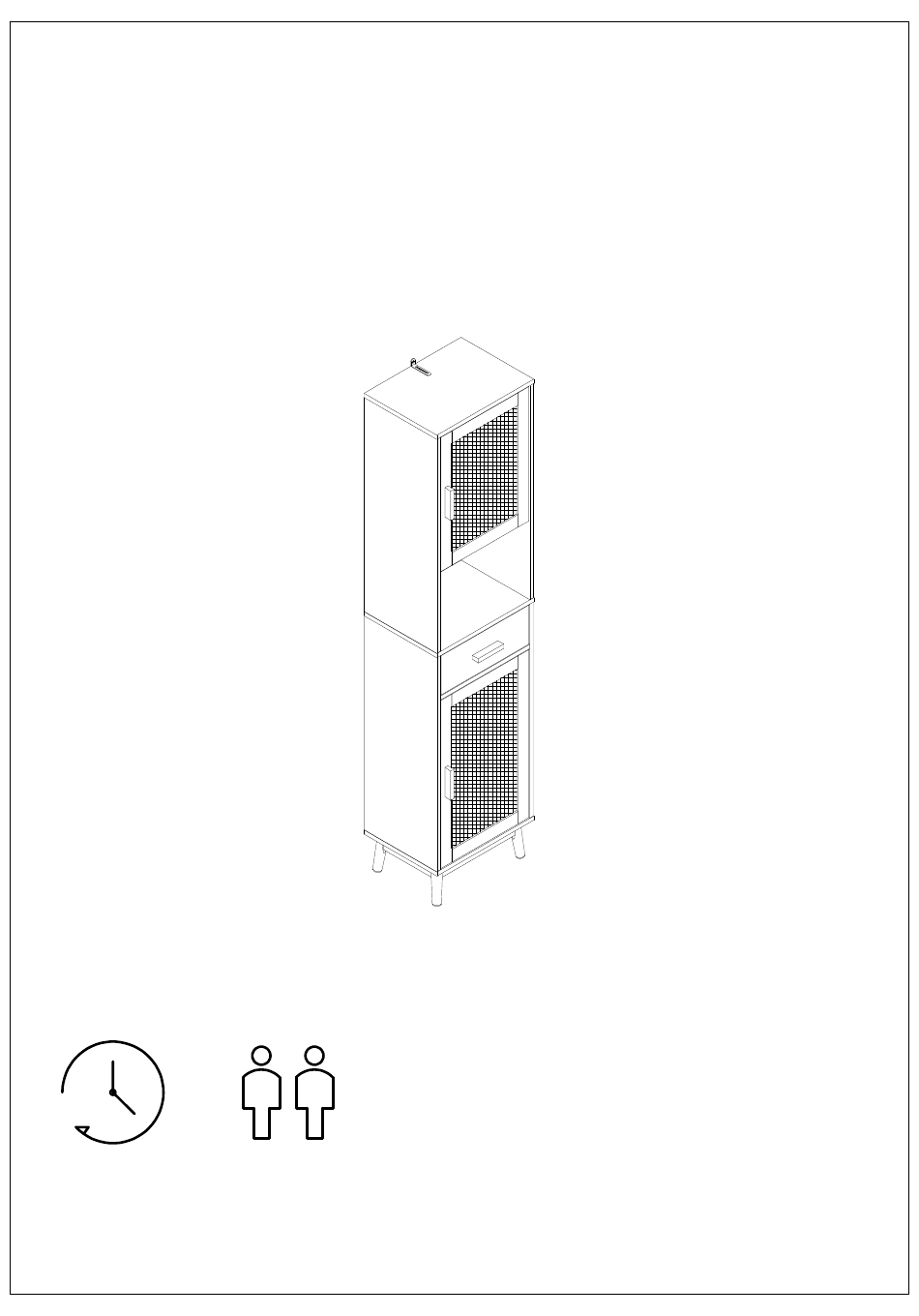

- Page 1 DUSK . COM Range Name:ISLA Box 1 Dimensions:W91.5 x D49x H22(cm) Product Dimensions:W40 x D30x H170(cm) LIVING BEDROOM DINING Tall Storage Unit THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION PLEASE READ AND KEEP FOR FUTURE REFERENCE. 60 minutes approx Two adults...
- Page 2 Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor, It's best to identify all of the parts and fittings to build your dressing table, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new cabinet In the room you'd like it to be located.
- Page 3 Parts check list Page 3-19...
- Page 4 Parts check list Before you begin building your Isla Tall Storage Unit ,please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Box No...
- Page 5 Step 1 2pcs SAFETY RELEASE TAB Slider J = J-1 and J-2 Step 2 8pcs 4pcs 2pcs Fixed cam bolt(A) into the board 5 and board 1, fixed plastic stopper(K) to the board 8 with screw(E) as shown. Page 5-19...
- Page 6 Step 3 Fixed cam bolt(A) into the board 2 and 4pcs board 3 as shown. Attached board 2 and board 3 to board 4 Step 4 with wooden dowel(C),put cam(B) in the 4pcs board 4 then turn clockwise to tighten as shown.
- Page 7 Step 5 4pcs 4pcs 4pcs Attached board1 to board 2 and board 3 with wooden dowel(C), put cam(B) in the board 2 and board 3 then turn clockwise to tighten,stick the hole with sticker(O) as shown. Step 6 Put the board 19 into cabinet as shown. Page 7-19...
- Page 8 Step 7 4pcs 4pcs Attached board 5 to board 2 and board 3 with wooden dowel(C) then use screw(D) to fix as shown. Step 8 4pcs 6pcs 1pcs 2pcs Fix plastic stopper(K) to board 6 with screw(E). Fix cam bolt(A) to the board 7 and board 8. Page 8-19 Fix runner(J-1) to the board 6 and board 7 with screw(E) as shown.
- Page 9 Step 9 4pcs Attached board 6 and board 7 to board 8 then put cam(B) into the board 8 then turn clockwise to tighten as shown. Step 10 4pcs 4pcs Attached the bottom board 18 to the board 6 and 7 with wooden dowel(C) then use screw(D) to fix as shown.
- Page 10 Step 11 Connect leg 16 to the frame on the board 18, put metal plate(S) and (R) onto the screw 1pcs rod(Q) at first then tighten the screw rod(Q) 4pcs with an Allan wrench,finally stick the foot pads(T) onto the legs as shown. 4pcs 4pcs 4pcs...
- Page 11 Step 13 Attached board 11 and board 12 to the board 13 with screw(D). 4pcs Fix cam bolt(A) to the board 10 4pcs and fix the handle(W) to the 4pcs board 10 with screw(H). 4pcs Put the board 14 into the bottom groove of the board 11 and board 2pcs 12 as shown.
- Page 12 Step 14 Connect the top cabinet to the bottom cabinet with wooden dowel(C) first then 4pcs put the cam(B) into the board 6 and 4pcs board 7 turn clockwise to tighten, 4pcs stick the holes with sticker(O) as shown. Page 12-19...
- Page 13 Step 15 8pcs Insert the shelf support(U) to the cabinet then put the board 9 into the cabinet as shown. Page 13-19...
- Page 14 Step 16 Put the drawer into the cabinet as shown. Page 14-19...
- Page 15 Step 17 8pcs 4pcs 4pcs 2pcs Fix the hinge(V) to the board 15 and board 17 with screw(G) then fix the handle(W) to the board 15 and board 17 with screw(H) as shown. Page 15-19...
- Page 16 Step 18 16pcs Fix the door 15 and 17 to the cabinet with screw(G) as shown. Page 16-19...
- Page 17 Step 19 12pcs 12pcs Fix the back bracket(P) to the back of the cabinet with screw(F) as shown. Page 17-19...
- Page 18 Step 20 1pcs 1pcs Fix the L wall fixing(L) to the cabinet with screw(I) as shown. Page 18-19...
- Page 19 Step 21 1pcs 1pcs Drill holes on your wall and install anti-tipping device as shown. Page 19-19...
