THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
30 minutes approx
assembly time
This product is intended for domestic use only , not for commercial purposes.
Storage Trunk
Two adults
assembly required
Range Name:IsIa
Product Dimensions:L90 x W39 x H45(cm)
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK IsIa
Summary of Contents for DUSK IsIa

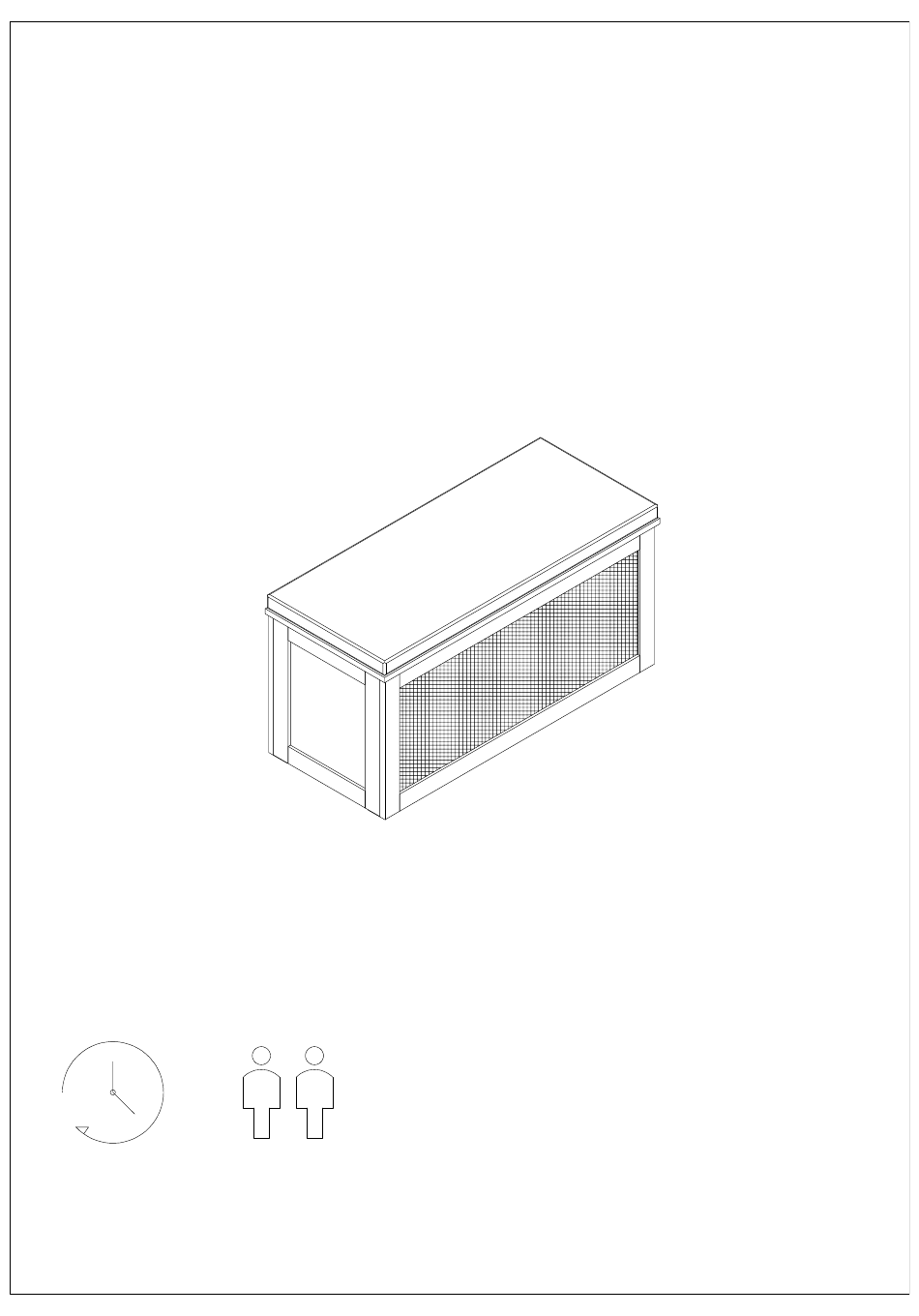

- Page 1 DUSK . COM Range Name:IsIa Product Dimensions:L90 x W39 x H45(cm) LIVING BEDROOM DINING Storage Trunk THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION PLEASE READ AND KEEP FOR FUTURE REFERENCE. 30 minutes approx Two adults assembly time assembly required This product is intended for domestic use only , not for commercial purposes.
-
Page 2: Care And Maintenance
Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor, It's best to identify all of the parts and fittings to build your Cabinet, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new Cabinet In the room you'd like it to be located. -
Page 3: Parts Checklist
Parts check list Please check you have all the parts listed below with your product: Do not discard any of the packaging until you have checked that you have all the parts and the pack of fixings. Page 3... -
Page 4: Tool Required
Fittings check list Please check you have all the fittings listed below with your product: M6x30mm Wood dowel x8pcs ( +1 extra ) 36mm cam bolt x12pcs ( +1 extra ) M15x9.5mm cam x12pcs +1 extra ! M3x12mm Screw x24pcs ( +2 extra ) M4x14mm Screw x8pcs Hinge x3pcs ( +1 extra ) - Page 5 Step 1 12pcs Fix bolt (B) into board 3 and board 8 as shown. Step 2 4pcs 6pcs 4pcs Attach board 4 and board 5 to board 8 with wooden dowel (A) first then put cam (C) into board 4 and board 5 then turn clockwise to tighten,stick the cam hole with sticker(I) as shown.
- Page 6 Step 3 Put board 6 into cabinet as shown. Step 4 4pcs 6pcs 4pcs Attach board 3 to board 4 and board 5 and board 7 with wooden dowel (A) first then put cam (C) into board 4and board 5 then turn clockwiseto tighten,stick the cam hole with sticker(I) as shown.
- Page 7 Step 5 4pcs Stick the foot pad (H) onto the bottom edge of board 4 and board 5 as shown. Step 6 15pcs 3pcs × × × ×3 Fix hinge (F) into board 2 with screw (D) as shown. Page 7...
- Page 8 Step 7 Fix board 2 to board 3 with screw (D) as shown. 9pcs × Step 8 8pcs 2pcs × ×4 Fix hinge (G) to board 2 and board 3 as shown. ×4 Page 8...
- Page 9 Step 9 Page 9...
