DUSK . COM
LIVING BEDROOM DINING
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

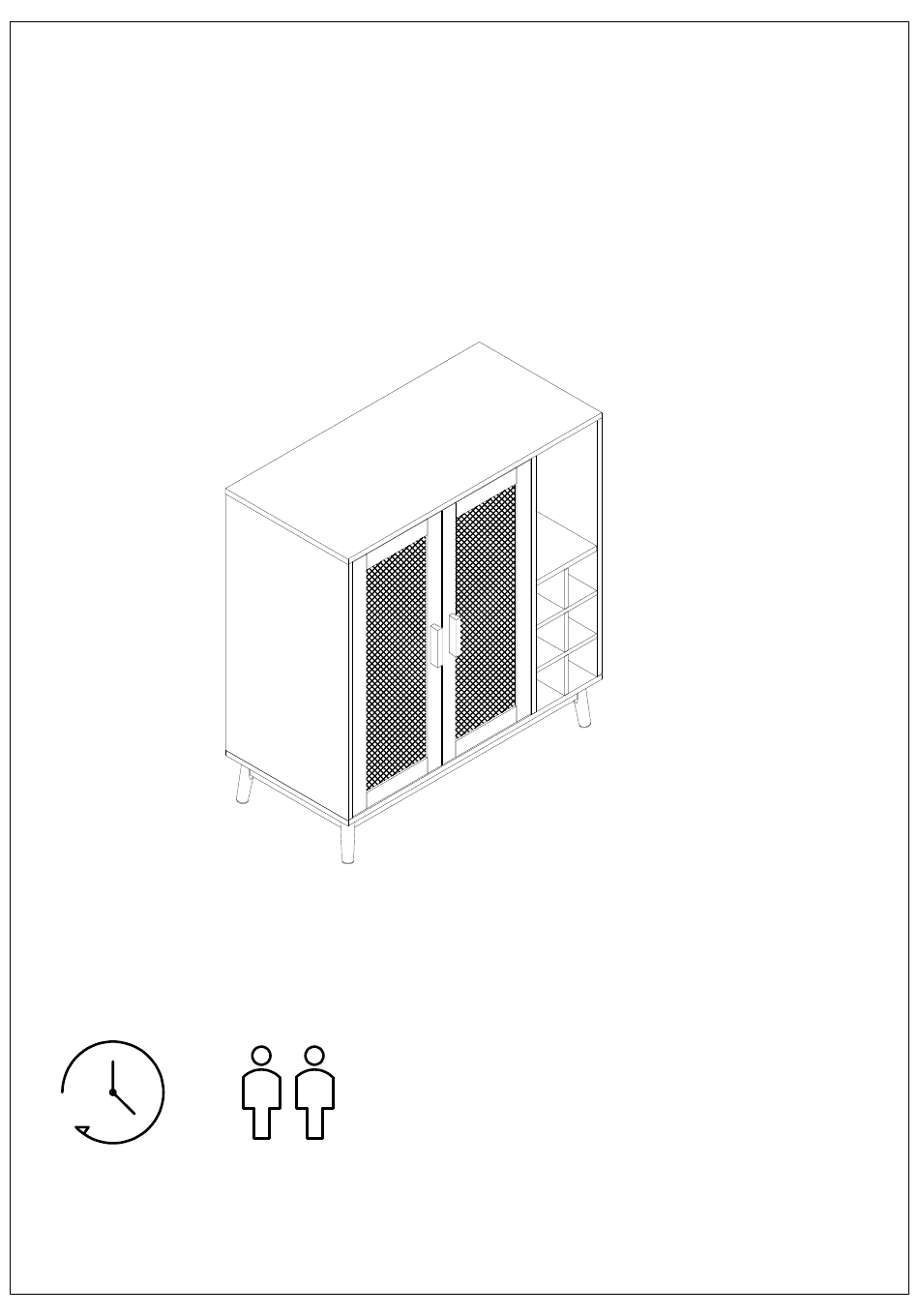

60 minutes approx
assembly time
This product is intended for domestic use only , not for commercial purposes.
Drink cabinet
Two adults
assembly required
Range Name:ISLA
Box 1 Dimensions:W 97x D48.8 x H23.5(cm)
Product Dimensions:W 83x D40 x H88(cm)
Page 1-13
V-2.0
Advertisement
Related Manuals for DUSK ISLA Drink cabinet
Summary of Contents for DUSK ISLA Drink cabinet
- Page 1 DUSK . COM Range Name:ISLA Box 1 Dimensions:W 97x D48.8 x H23.5(cm) Product Dimensions:W 83x D40 x H88(cm) LIVING BEDROOM DINING Drink cabinet THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION PLEASE READ AND KEEP FOR FUTURE REFERENCE. 60 minutes approx...
-
Page 2: Care And Maintenance
Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor, It's best to identify all of the parts and fittings to build your dressing table, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new cabinet In the room you'd like it to be located. -
Page 3: Parts Checklist
Parts check list Page 3-13... - Page 4 Parts check list Before you begin building your Isla Drink cabinet ,please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Box No...
- Page 5 Fix cam bolt(A) to board 1 and board 4. Step 1 Fix (L) wall fixing to board 1 and board 4 14pcs with screw (I). Fix plasctic stopper(K) to 2pcs board 1 with screw (E)as shown. 2pcs 1pcs 2pcs Turn over board 4 then fix cam bolt(A) to the back side as shown.
- Page 6 Step 2 Attach board 3 and board 4 with wooden dowel(C),put cam(B) into board 6 then 4pcs turn clockwise to tighten as shown. 4pcs Step 3 4pcs Attach board 2 and board 4 put cam(B) into board 5 then turn clockwise to tighten as shown.
- Page 7 Step 4 Put board 11 into cabinet as shown. Attach board 1 to board 2 Step 5 and board 3 and board 4 with wooden dowel(C), 6pcs put cam(B) into board 2 and 6pcs board 3 and board 4 then 6pcs turn clockwise to tighten, stick the cam hole with...
- Page 8 Step 6 Put board 12 and board 13 to the cabinet as shown. Step 7 Fix plastic stopper K to board 10 with screw (E) 2pcs as shown. 1pcs Page 8-13...
- Page 9 Step 8 Attach board 10 to board 2 and board 3 and board 4 with wooden dowel(C) then 6pcs use screw(D) to fix them as shown. 6pcs Connect leg 16 to the frame on the board 10, Step 9 put metal plate(S) and (R) onto the screw rod(Q) at first then tighten the 1pcs screw rod(Q) with an Allan wrench(N),...
- Page 10 Step 10 Fix hinge(J) to board 14 with screw(G). Fix handle(B) to board 14 with screw(H) 8pcs 4pcs 4pcs 2pcs Step 11 Insert shelf support(U) to board 2 and board 4 then put board 7 into cabinet 4pcs as shown. Page 10-13...
- Page 11 Step 12 Put board 8 and board 9 into cabinet as shown. Step 13 Fix back bracket P with screw(P) as shown. 14pcs 14pcs Page 11-13...
- Page 12 Step 14 Fix board 14 to board 2 and board 4 16pcs with screw(G) as shown. Page 12-13...
- Page 13 Step 15 2pcs Drill holes on your wall and 2pcs install anti-tipping device as shown. Page 13-13...
