DUSK . COM
LIVING BEDROOM DINING
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
45 minutes approx
assembly time
This product is intended for domestic use only , not for commercial purposes.

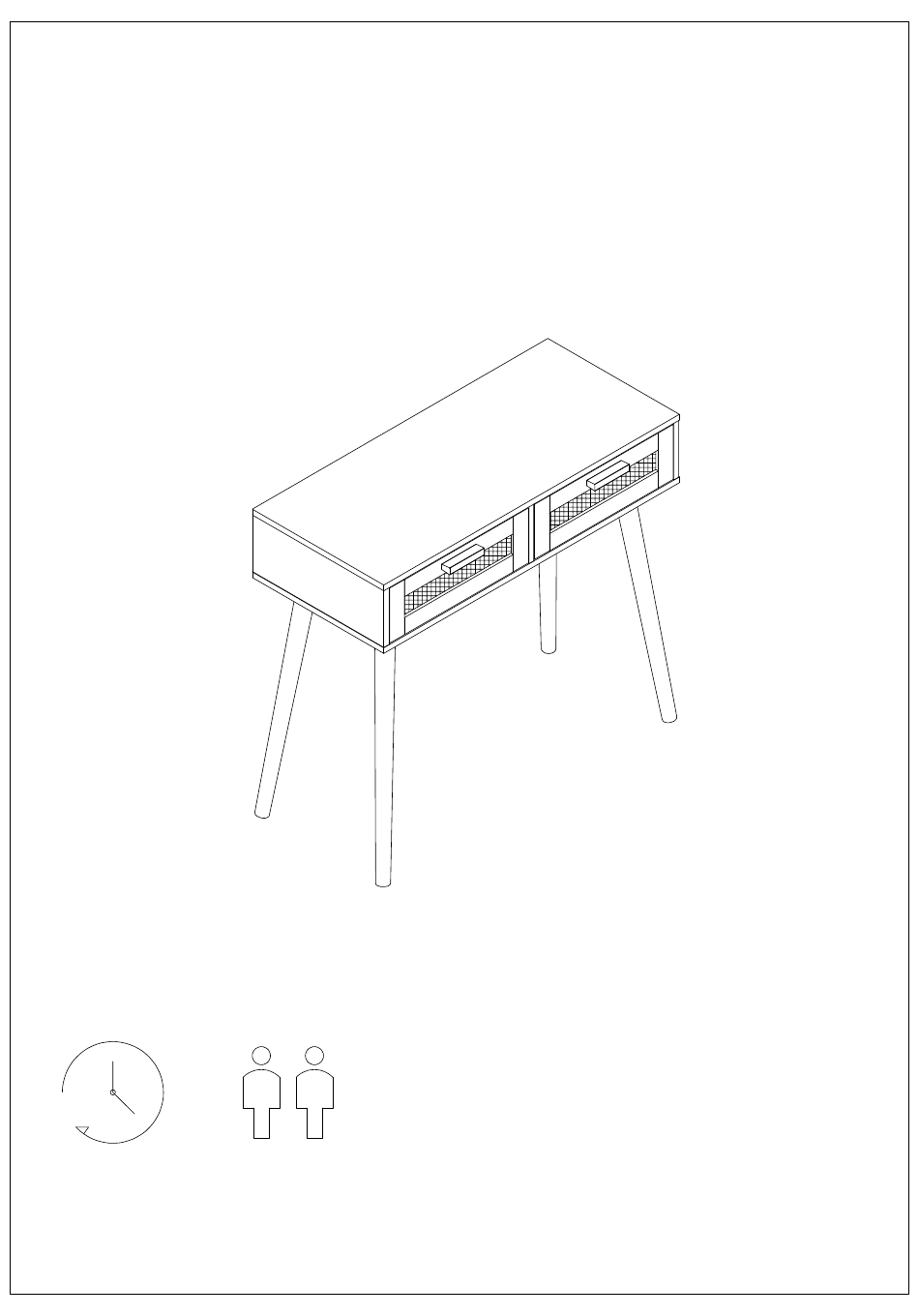

Dressing Tab
Two adults
assembly required
Range Name:ISLA
Box1 Dimensions:W103 x D48 x H15(cm)
Product Dimensions:W90 x D40 x H80(cm)
le
Page 1-13
V-2.0
Advertisement
Related Manuals for DUSK ISLA Dressing Tab
Summary of Contents for DUSK ISLA Dressing Tab
- Page 1 DUSK . COM Range Name:ISLA Box1 Dimensions:W103 x D48 x H15(cm) Product Dimensions:W90 x D40 x H80(cm) LIVING BEDROOM DINING Dressing Tab THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION PLEASE READ AND KEEP FOR FUTURE REFERENCE. 45 minutes approx Two adults...
-
Page 2: Care And Maintenance
Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor, It's best to identify all of the parts and fittings to build your dressing table, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new dressing table In the room you'd like it to be located. -
Page 3: Parts Checklist
Parts check list Please check you have all the parts listed below with your product: Do not discard any of the packaging until you have checked that you have all the parts and the pack of fixings. Page 3-13... - Page 4 Parts checklist Before you begin building your Isla Dressing Table, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Box No Part Description Quantity Box No Part Number...
- Page 5 Step 1 4pcs SAFETY RELEASE TAB Slider J = J-1 and J-2 Step 2 4pcs 2pcs Fix runner (J-1) to the board 2 and 4 with screw(E) as shown. Page 5-13...
- Page 6 Step 3 4pcs 2pcs Fix runner (J-1) to the 2 side of board 3with screw(E) as shown. Step 4 6pcs 2pcs 2pcs Fix bolt(A) to the board 1 first and then fix wall fixing (F) with screw (G )as shown. Page 6-13...
- Page 7 Step 5 Attached board 2 and board 3 and board 4 to the board 1 with wooden dowel(C) and put cam(B) into board 2 and board 3 and 4 then turn clockwise to tighten, 6pcs stick the cam hole with sticker(K) as shown. 6pcs 6pcs Step 6...
- Page 8 Attched the frame board 9 and board 10 to the board 5 with Step 7 wooden dowel(C) first,then use L fitting(M) to fix the screw (L) as shown. 4pcs 8pcs Step 8 Fix leg 7 and leg 8 to the board 5 with screw (L) use L fitting(M) as shown.
- Page 9 Step 9 16pcs Fix screw (N) as shown. Step 10 16pcs 4pcs 4pcs Fix L bracket (P) with screw(G) as shown. Page 9-13...
- Page 10 Step 11 4pcs Fix screw (R) use L fitting (M) as shown. Step 12 Attached the bottom frame to the board 2 and board 3 and board 4 with wooden 6pcs dowel(C) then fix them with screw(D). 6pcs Page 10-13...
- Page 11 Step 13 Fix back bracket(S) with screw (Q) as shown. 6pcs 6pcs Step 14 Fix runner (J-2) to the board 12 and board 14 with screw (E) as shown. 8pcs 4pcs Page 11-13...
- Page 12 Step 15 Fix board 11 to board 12 and board 14 with screw(D). 8pcs Put board 13 into the drawer as shown. Step 16 8pcs 8pcs 4pcs 8pcs 2pcs Attach board 15 to board 12 and board 14 then Fix bolt(A) into board 15 put cam (B)into board 12 and board 14 then turn then fix the handle (T) onto the clockwise to tighten,stick the cam hole...
- Page 13 Step 17 Drill a hole in the wall first,put the plug (H) into the hole first,fix the table to the wall with screw (D) as shown. 2pcs 2pcs Step 18 Page 13-13...
