Isabella Textured TV Stand
Up to 20 minutes
assembly time
This product is intended for domestic use only,not for commercial purposes.
Two person
assembly
Range Name : Isabella
Box 1 Dimensions : W153×D51×H16.5cm
Product Dimensions: W140×D40×H50cm
P-1-8
V-2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK Isabella Textured TV Stand
Summary of Contents for DUSK Isabella Textured TV Stand

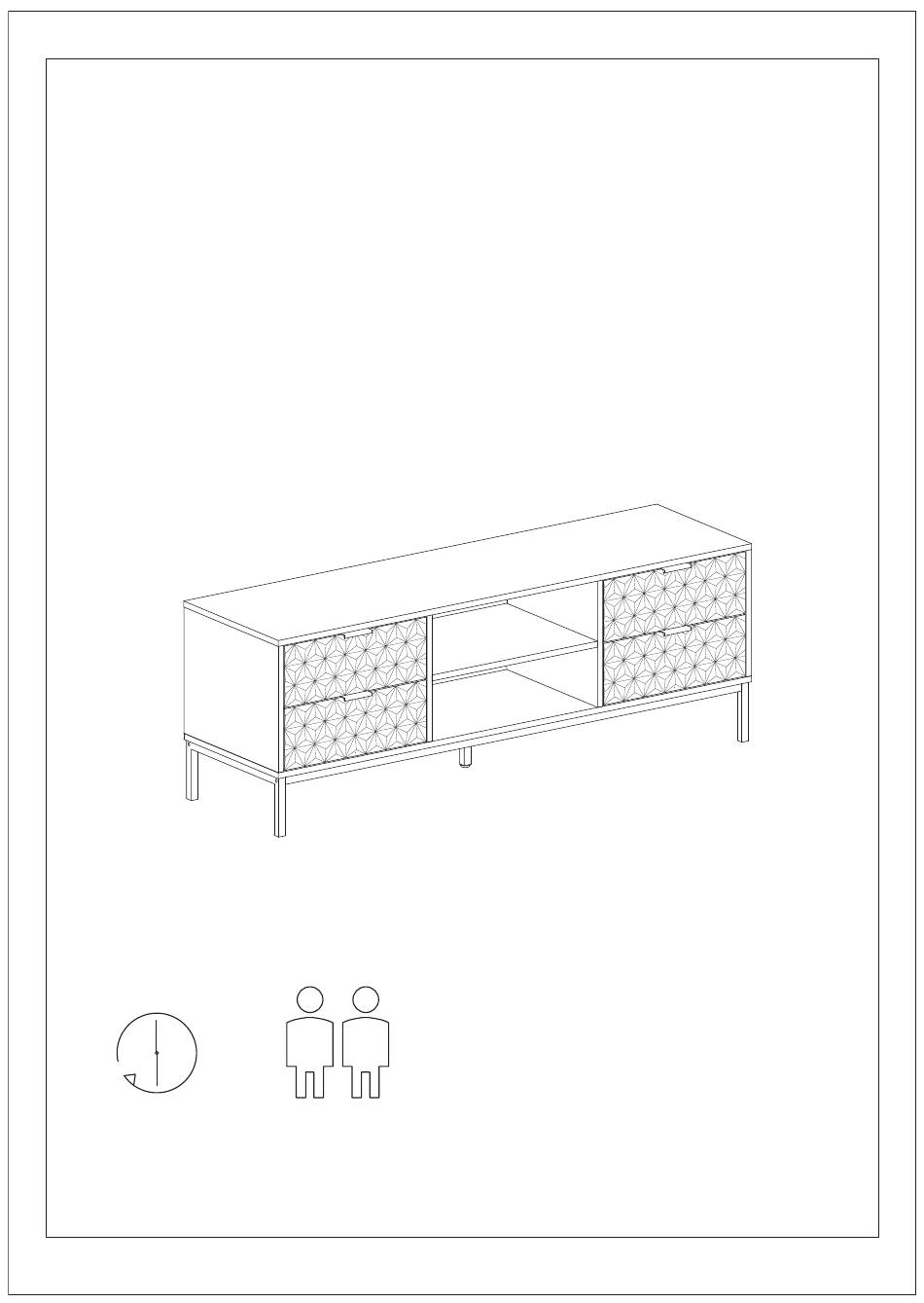

- Page 1 DUSK.COM Range Name : Isabella Box 1 Dimensions : W153×D51×H16.5cm LIVING I BEDROOM I DINING Product Dimensions: W140×D40×H50cm Isabella Textured TV Stand Up to 20 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 TOP TIP We recommend that you assemble the Isabella Textured TV Stand in the room you'd like it to be located. This will help prevent any risk of damage to the frame whilst moving it.
- Page 3 Parts list ×4 P-3-8 V-2.0...
- Page 4 Parts list Before you begin building your Isabella Textured TV Stand,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Description Part Description Part Number...
- Page 5 1. Attach parts to the top. M6*45mm Bolt 8pcs 2. Attach parts to left and right middle panel. 3. Attach shelf panel to middle panels. M6*45mm Bolt Ø15x12mm Cam Lock Ø8x30mm Wood Dowel 4pcs 4pcs 2pcs 4. Attach panels to the top. P-5-8 Ø15x12mm Cam Lock Ø8x30mm Wood Dowel...
- Page 6 5. Attach side panels to the top. Ø15x12mm Cam Lock Ø8x30mm Wood Dowel 4pcs 2pcs 6. Assemble back panel. Cover 12pcs 7. Attach bottom panel to the frame. P-6-8 4mm Allen Key M7*40mm Screw Ø8x30mm Wood Dowel 4pcs 8pcs V-2.0...
- Page 7 8. Attach connection tubes to side legs and tighten screw to only 70%. 4mm Allen Key M6*35mm Screw 4pcs 9. Attach frame to the bottom panel and tighten screws to 100%. Attach centre tube to bottom panel and assemble with centre leg. 4mm Allen Key M6*12mm Centre Leg...
- Page 8 11. Attach drawer front to drawer side panel. 12. Attach bottom panel to the frame. M6*45mm Bolt Ø15x12mm Cam Lock Cover 16pcs 16pcs 16pcs 13. Attach drawer back panel to the frame. 14. Attach the handle. Handle M4x38mm Screw M3.5x14mm Screw 4pcs 16pcs 8pcs...
