ShowPro Colour Ranger 48 User Manual

Hide thumbs

Advertisement

Table of Contents

User Manual
Colour Ranger 48
LEDWSH482

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Colour Ranger 48 and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro Colour Ranger 48

Summary of Contents for ShowPro Colour Ranger 48

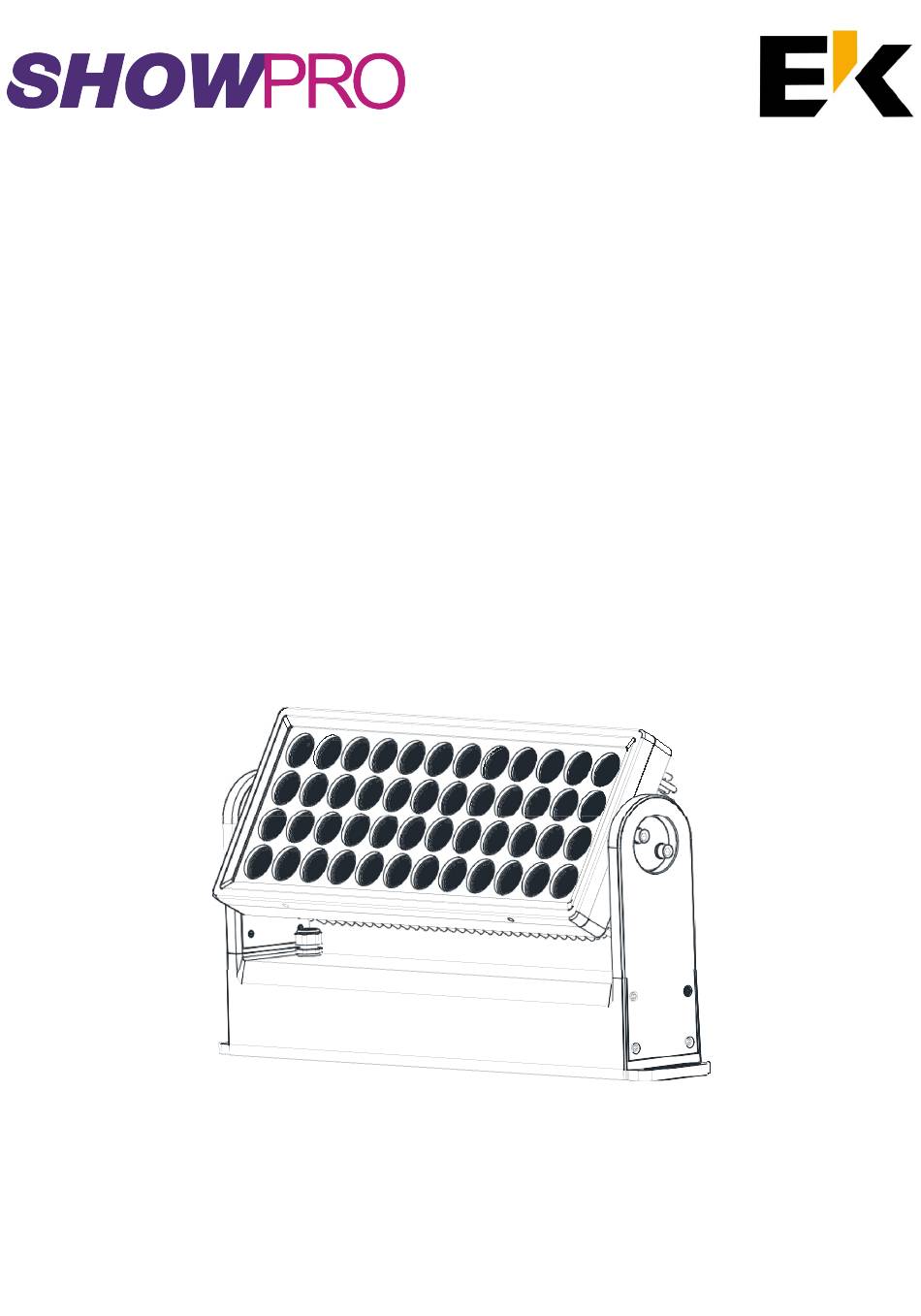

  • Page 1 User Manual Colour Ranger 48 LEDWSH482...
  • Page 2 WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction -The products referred to in this manual conform to the European Community Directives and are therefore marked with CE.

  • Page 3: Specifications

    INTRODUCTION The Colour Ranger Q48A is an RGBW IP65-rated wash light with an advanced thermal (fan less) design. FEATURES • 48 x 13.8W RGBW LEDs deliver 23K lumens of perfectly blended colour • 4 zone independent control of horizontal sections •...
  • Page 4 PHOTOMETRICS Beam Angle 8° Distance(m) 63900 7100 2560 1300 126900 14100 5080 2590 1270 Output(Lux) 21150 2350 2120 136800 15200 5470 2790 1370 344700 38300 13790 7040 3450...
  • Page 5 DIMENSION...
  • Page 6 OVERVIEW 1. LED panel 5. DMX IN (5-pole XLR): 1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C. 2. MECHANICAL SYSTEM for individual positioning of LED panels 6. HEATSINK 3. HOLES for fixing to the ground 7.

  • Page 7: Dmx Mode

    DMX/Power Connections and DMX address code setting MORE DMX512 控台 DMX MODE Fixture Fixture Fixture Fixture 4 channels 6 channels 10 channels 16 channels RDMCONNECTIONS...

  • Page 8: Installation

    INSTALLATION The Colour Ranger Q48A may be set up on a solid and even surface using the fastening devices of the base (2). Stable mounting clips are required for fixing. Also make sure to comply with all safety warnings.
  • Page 9 RDM Function Main Menu Menu level 2 Menu level 3 Remark DMX address Default：1 Default：10CH DMX MODE 10CH 16CH Default：Off Dimmer1 Dimmer Mode Dimmer2 Dimmer3 600Hz Default:1200Hz 1200Hz 2000Hz LED Frequency 4000Hz 6000Hz 25kHZ White Balance 8200 (Red) 8201 (Green) 8202 (Blue) 8203 (White) Specific PIDS...

  • Page 10: Dmx Chart

    DMX Chart Percent/Setting Function Value Remark 000-255 0~100% 000-255 0~100% Green 000-255 0~100% Blue 000-255 0~100% White Percent/Setting Function Value Remark 000-255 0~100% Dimmer 000-255 0~100% 000-255 0~100% Green 000-255 0~100% Blue 000-255 0~100% White 000-010 NO Function Strobe 011-255 Strobe Slow to Fast 10CH Percent/Setting Function...
  • Page 11 R 0% G 100%~0% 071~090 B 100% R 0%~100% G 0% 091~110 B 100% R 100% G 0% 111~130 B 100%~0% R 100% G 0%~100% 131~150 B 0%~100% R 100%~0% G 100%~0% 151~170 B 100% R 100% G 100% 171~200 Color Macro B 100% W100%...
  • Page 12 000-051 Preset dimmer speed from display menu 052-101 Dimmer speed mode off 102-152 Dimmer speed mode1 (fast speed) Dimmer Speed Mode 153-203 Dimmer speed mode2 (middle speed) 204-255 Dimmer speed mode3 (slow speed) 16CH Percent/Setting Function Value Remark 000-255 0~100% Red 1 000-255 0~100% Green 1...

  • Page 13: Maintenance And Cleaning The Unit

    MAINTENANCE MAINTENANCE AND CLEANING THE UNIT - Make sure there is no persons under the fixture when installing. - Switch off the unit, unplug the main cable and wait until the unit has cooled down. - All screws used for installing the device and any of its parts should be tightly fastened and should not be corroded.

This manual is also suitable for:

Ledwsh482
