Summary of Contents for ShowPro X-Blinder

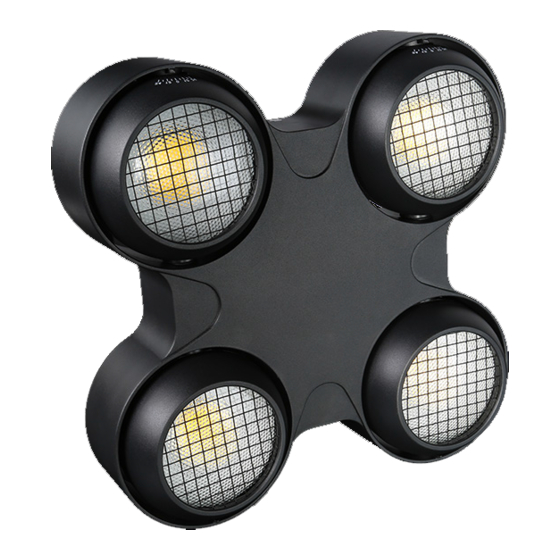

- Page 1 LED audience blinder with a modern design and advanced features designed to reproduce the look and feel of the classic incandescent effect...
-
Page 2: Table Of Contents
Features OVERVIEW Rear view Front view DIMENSIONS CONTROL MENU OVERVIEW Control Panel Function Menu DMX FUNCTION CHART 9-channel mode 1-channel mode 3-channel mode 4-channel mode MAINTENANCE PACKING CONTENT - X-Blinder - Power cord - User manual - Warranty Card www.showtech.com.au... - Page 3 WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with .
-
Page 4: Introduction
INTRODUCTION The X-Blinder is a warm white LED audience blinder with a modern design and advanced FEATURES - 4 x 100W warm white LEDs - Flicker-free output with selectable PWM frequencies for worry-free video - Smooth 16-bit dimming curves accurately mimic conventional fades - Unique rugged die-cast body designed for mounting versatility - Individual heads swivel independently in 24°... -
Page 5: Overview
OVERVIEW Rear View Mounting bracket Menu Buttons Display DMX In Power In DMX Out Power Out Safety cable attachment point Front View DMX Programming note: Head number as shown corresponds to DMX address sequence of individual heads www.showtech.com.au... -
Page 6: Dimensions
DIMENSIONS CONTROL MENU OVERVIEW CONTROL PANEL BUTTON FUNCTION Menu Selects operating mode or exits submenus Scrolls up through option lists or selects higher value Down Scrolls down through option lists or selects lower value Enter Activates displayed menu option or selected value www.showtech.com.au... -
Page 7: Function Menu
FUNCTION MENU MODE OPTIONS / VALUES DESCRIPTION Auto Show Auto 1 –6 Speed 0–100 Automatic programs Dimmer Sets the intensity of the light output Static 0-255 Strobe Selects the strobe frequency No dimmer Dimmer Mode Select curves Dimmer 1 –3 Dimmer 1 (fast) ~ Dimmer 3 (slow) Display backlight always on Turns o display backlight... -
Page 8: Dmx Function Chart
DMX FUNCTION CHART Channel Function Value Percent/Setting 9-CHANNEL MODE Dimmer H 000 - 255 0–100% Dimmer L 000 - 255 0–100% 000 - 010 No function Strobe 011 - 132 0–20 Hz (All pods) 133 - 255 0–20 Hz (Random strobe macros) White 1 000 - 255 0–100% White 2... - Page 9 T5A 250V ø5*20...
