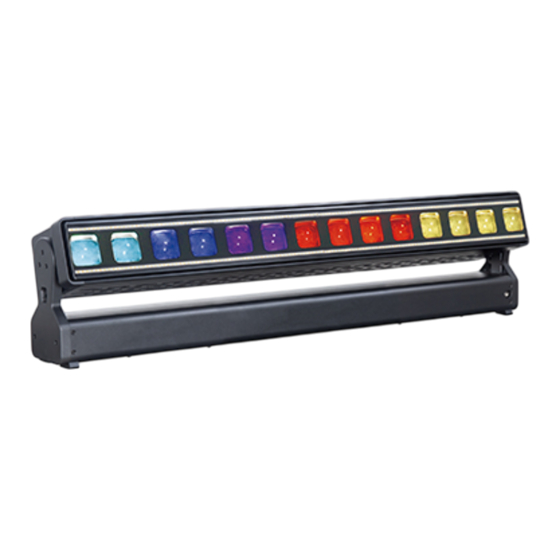

ShowPro DIAMONDBACK LEDDIA100 Manual

Tour pack of 3
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

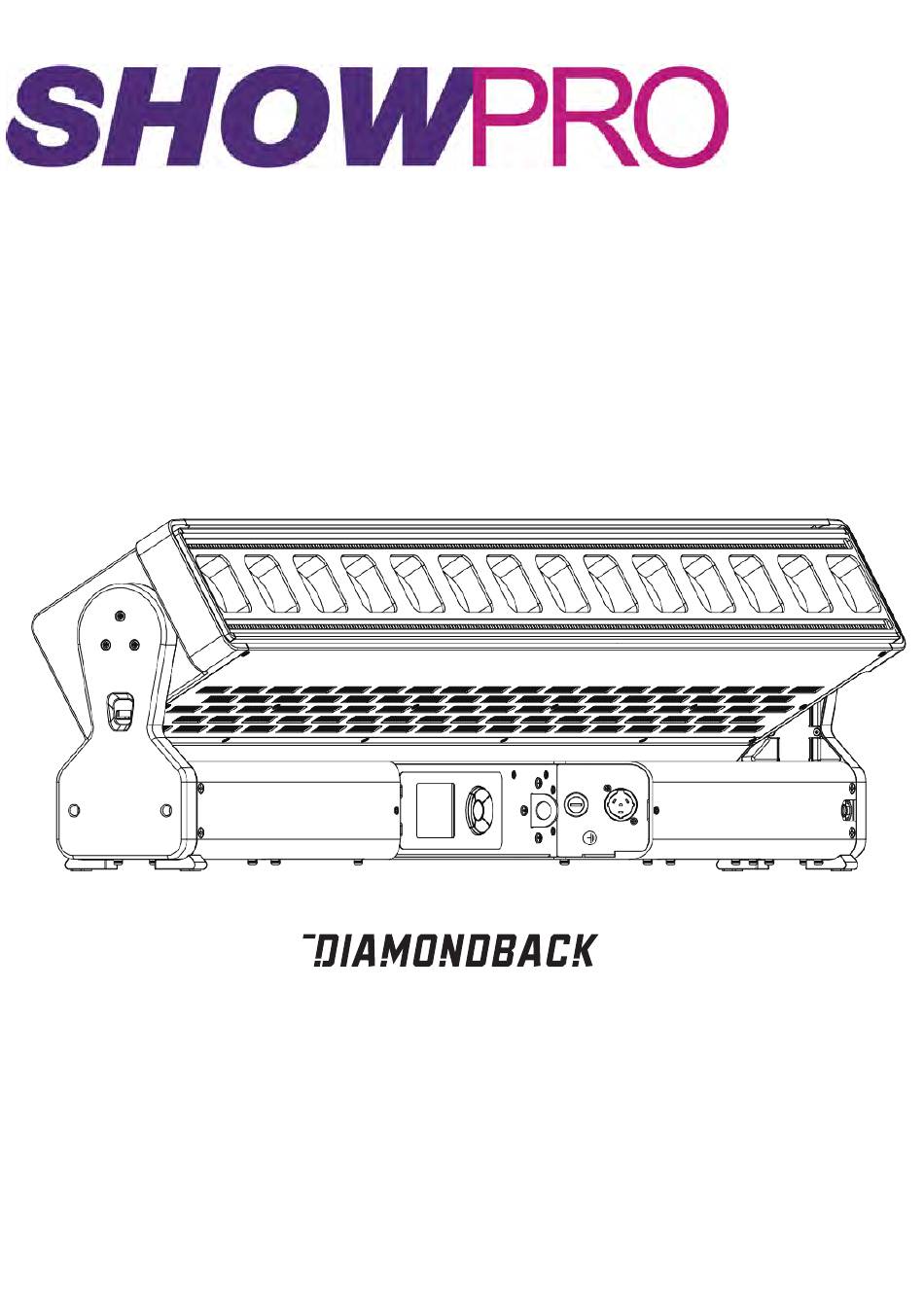

DIAMONDBACK
Tour Pack of 3
MANUAL
LEDDIA100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIAMONDBACK LEDDIA100 and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro DIAMONDBACK LEDDIA100

Summary of Contents for ShowPro DIAMONDBACK LEDDIA100

  • Page 1 DIAMONDBACK Tour Pack of 3 MANUAL LEDDIA100...
  • Page 2 INTRODUCTION PIXEL-MAPPABLE FULL-COLOR LED STROBE/BEAM/WASH MOVING BAR WITH ZOOM FEATURES • 1100W RGBW+CW+WW LED to produce perfect colour blending and stunning strobe effects • Ultra high brightness of 60000lm • Zoom range from 3°~56° • White color temperature from 2700K~8000K, WW: Ra≥90 •...
  • Page 3 SAFETY WARNING!Before carrying out any operations with the unit,carefully read this instruction manual and keep it with care for future reference,It contains important information about the installation,user and maintenance of the unit. General instruction -The products referred to in this manual conform to the European Community Directives and are therefore marked wihth CE.

  • Page 4: Maintenance And Cleaning The Unit

    MAINTENANCE MAINTENANCE AND CLEANING THE UNIT - Make sure the area below the installation place is free from unwanted person during setup. - Switch off the unit,unplug the main cable and wait till the unit has cooled down. - All screws used for installing the device and any of its parts should be tightly fastened and should not be corroded.
  • Page 5 OVERVIEW 7 - 2 7 - 1 1. Art-Net In/Out 6. Fan for ventilation 2. DMX IN/OUT 7-1. Side Lock 3. Control Panel 7-2. Side Lock Pins 4. Fuse 8. Tilt Lock 5. Power In 9. Omega Adapting Holes DOWN LEFT RIGHT ENTER...
  • Page 6 PHOTOMETRICS Beam Angle 3° φ17cm φ28cm φ57cm φ85cm φ133cm Diameter（cm) Distance (m) 3200 1152 7800 2808 1900 12000 4320 1080 Illuminance(Lux) RGBW 22000 7920 1980 24000 8640 2160 Beam Angle 34° φ185cm φ308cm φ616cm φ925cm φ1233cm Diameter（cm) Distance (m) 1400 Illuminance(Lux) RGBW 2500...
  • Page 7 DIMENSION 150.7...

  • Page 8: Installation

    INSTALLATION The Diamondback may be set up on a solid and even surface. By means of the fixing facilities of the baseplate,the unit can also be mounted upside down to a cross arm. For fixing, stablemounting clips are required. The bolts of the brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop).

  • Page 9: Power Connection

    POWER CONNECTION Using Power Con In Power cable connected in series Attention: due to the power rating Power In one 1.5mm² power cable can connect 1 unit maximum Do not connect more than 1 unit in series with one power cable Do not use damage power cable WARNING Turn off the power when the units are not in use...

  • Page 10: Ethernet Connection

    DATA CONNECTION ETHERNET CONNECTION DMX CONNECTION...
  • Page 11 DATA CONNECTION Depending on the length of the DMX cable run, or other factors, it may be advisable to install a terminator at the last fixture in the run. The illustration below shows the correct placement of a 120Ω 0.25W resistor in a terminator, as well as the standard DMX signal pin-outs.

  • Page 12: Dmx Channels

    DMX CHANNELS 88Ch Mode Function Value Percent/Setting / NET +NET Warm White2 000-255 0~100% 000-255 0~100% 000-255 0~100% 000-255 0~100% Cool White13 000-255 0~100% Warm White13 000-255 0~100% Cool White14 000-255 0~100% Warm White14 000-255 0~100% PIXEL CONTROL...
  • Page 13 MENU NO. Main Menu Menu level 1 Menu level 2 Menu level3 Menu level4 Default Description for use DMX Address 1-512 14CH 32CH 118CH DMX Channel 32CH 91CH 119CH 88CH SETUP Protocol Artnet Artnet only controls color DMX+Artnet Universe 0-255 Start Channel 1-512 Custom IP Address 2.133.139.215...
  • Page 14 MENU NO. Main Menu Menu level 1 Menu level 2 Menu level3 Menu level4 Default Description for use System Errors DISP:V1.0 NET-V1.0 System Version CTR1-XY:V1.0 CTR2-MOTOR:V1.0 Total Hours 0~65000H Led Hours Reset Partial Hours 0~65000H Go Back INFORMATION Total Hours 0~65000H Fixture Hours Reset...
  • Page 15 DMX CHANNELS 14Ch Mode Function Value Percent/Setting / NET +NET Tilt 000-255 0~100% Zoom 000-255 From narrow to wide beam 000-003 Light OFF 004-103 Strobe from low (1Hz) to fast (25Hz) 104-107 Light ON 108-207 Pulsation from slow (0.5 Hz) to fast (25 Hz) Strobe 208-212 Light ON 213-225 Random Slow Strobe...
  • Page 16 DMX CHANNELS 32 Ch Mode Function Value Percent/Setting / NET +NET 213-225 Random Slow Strobe 226-238 Random Medium Strobe Strobe 239-251 Random Fast Strobe 252-255 Light ON Dimmer 000-255 0~100% 000-009 OFF 010-255 CTO 8000K~2700K 000-009 OFF Background CTO 010-255 CTO 8000K~2700K 000-005 No Function 006-015 Effect 1 016-023 Effect 2...
  • Page 17 DMX CHANNELS 32 Ch Mode Function Value Percent/Setting / NET +NET 000-124 Normal Effects speed 125-130 Static 131-255 Dynamic 000-003 Light OFF 004-103 Strobe from low (1Hz) to fast (25Hz) 104-107 Light ON 108-207 Pulsation from slow (0.5 Hz) to fast (25 Hz) White Strobe 208-212 Light ON 213-225 Random Slow Strobe...
  • Page 18 DMX CHANNELS 32 Ch Mode Function Value Percent/Setting / NET +NET 194-201 Effect 25 202-209 Effect 26 210-217 Effect 27 218-224 Effect 28 White Effects 225-232 Effect 29 233-240 Effect 30 241-248 Effect 31 249-255 Effect 32 000-124 Normal White Effects speed 125-130 Static 131-255 Dynamic 000-005 No Function...
  • Page 19 DMX CHANNELS 118Ch Mode Function Value Percent/Setting / NET +NET Warm White2 000-255 0~100% 000-255 0~100% 000-255 0~100% 000-255 0~100% Cool White27 000-255 0~100% Warm White27 000-255 0~100% Cool White28 000-255 0~100% Warm White28 000-255 0~100% 91Ch Mode Function Value Percent/Setting / NET +NET...
  • Page 20 DMX CHANNELS 91Ch Mode Function Value Percent/Setting / NET +NET 201-208 Dimmer Mode 2 209-216 Dimmer Mode 3 Device Setting 217-224 Dimmer Mode 4 225-255 No Function Red1 000-255 0~100% Green1 000-255 0~100% Blue1 000-255 0~100% White1 000-255 0~100% Red2 000-255 0~100% Green2 000-255 0~100%...
  • Page 21 DMX CHANNELS 119Ch Mode Function Value Percent/Setting / NET +NET 108-207 Pulsation from slow (0.5 Hz) to fast (25 Hz) 208-212 Light ON 213-225 Random Slow Strobe Strobe 226-238 Random Medium Strobe 239-251 Random Fast Strobe 252-255 Light ON Dimmer 000-255 0~100% 000-003 Light OFF 004-103 Strobe from low (1Hz) to fast (25Hz)
  • Page 22 DMX CHANNELS 119Ch Mode Function Value Percent/Setting / NET +NET White14 000-255 0~100% Cool White1 000-255 0~100% Warm White1 000-255 0~100% Cool White2 000-255 0~100% Warm White2 000-255 0~100% 000-255 0~100% 000-255 0~100% 000-255 0~100% Cool White27 000-255 0~100% Warm White27 000-255 0~100% Cool White28 000-255 0~100%...
