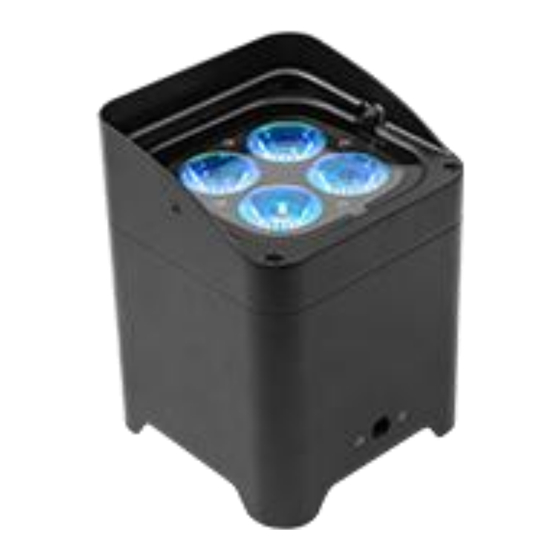

LED UP Quad-4
User Manual
www.showtech.com.au
Table of Contents
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LED UP Quad-4 and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro LED UP Quad-4

Summary of Contents for ShowPro LED UP Quad-4

  • Page 1 LED UP Quad-4 User Manual www.showtech.com.au Table of Contents...

  • Page 2: Table Of Contents

    LED UP Quad-4 1. Safety instructions…………………………………………………………3 1.1 Power Connection ………………………………….……………….4 1.2 Overhead Rigging …………………………………………………...4 1.3 Cleaning and Maintenance ………………………………………6 2. Menu Navigation .…………………………………………………………7 3. DMX Allocation….………………………………………………………….11 4. Technical Specifications ……………………….……………………….15...

  • Page 3: Safety Instructions

    NO USER SERVICABLE PARTS INSIDE. If unit is out of service, please contact your point of purchase. If any troubles arise, remove the power plug and contact your ShowPro representative for repair. Do not open the machine by yourself, it might result a danger of electric shock.

  • Page 4: Power Connection

    LED UP Quad-4 1.1 Power Connection AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC AC Plug Connection Wire AC Live Brown AC Neutral Blue AC Ground Green/Yellow 1.2 Overhead Rigging This item must be built in a way that it can hold 10 times more of its weight for 1 hour without causing any damage.
  • Page 5 LED UP Quad-4 CAUTION: Overhead Items may cause serious injuries when not installed correctly!! If there is concern about the safety DO NOT INSTALL the device. DANGER OF FIRE! When installing the device, make sure there is no highly-flammable material (decoration articles, etc.) within a distance of min.

  • Page 6: Cleaning And Maintenance

    LED UP Quad-4 1.3 Cleaning and Maintenance Please make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year. Make sure before installing that all screws are tightly connected and not corroded. There must be no deformations on the housings, fixations and installations spots Any defects on the electronics, power cables or housing must be repaired for safe use.

  • Page 7: Menu Navigation

    LED UP Quad-4 2.0 Menu Navigation Menu Level 1 Menu Level 2 Menu Level 3 Remark （ Default:10CH， d 1） 5:GB 6:RB Color 7:RG 8:RGB 9:RW 10:GW 11:BW...
  • Page 8 LED UP Quad-4 12:RGW 13:RBW 14:GBW 15:RGBW (Default： RGBW) Default： P 1 Programs （ Default： S100） Program Speed Sound-Active Mode （ Default： 80） Sound Sensitivity...
  • Page 9 LED UP Quad-4 （ Default RGBW=255） User colors regulate Default：OFF Dimmer speed setting drAS : Wireless Automatically Receive 2.4G WiFi drCH: Wireless Setting Manual Receive...
  • Page 10 LED UP Quad-4 (Default： dr 1) dtAS dtCH 1） The signal points is at the lower right corner of display screen, the status prompt of 2.4G WIFI is flashing. 2） Automatic code button to proceed to the automatic mode to be effective...

  • Page 11: Dmx Allocation

    LED UP Quad-4 3.0 DMX Allocation 4-CH Function Value Percent/Setting 000-255 0~100% Green 000-255 0~100% Blue 000-255 0~100% White 000-255 0~100% 6-CH Function Value Percent/Setting Dimmer 000-255 0~100% 000-255 0~100% Green 000-255 0~100% Blue 000-255 0~100% white 000-255 0~100% 000-010...
  • Page 12 LED UP Quad-4 201~205 Color temperature1 206~210 Color temperature2 211-215 Color temperature3 216-220 Color temperature4 221-225 Color temperature5 226-230 Color temperature6 231-235 Color temperature7 236-240 Color temperature8 241-245 Color temperature9 246-250 Color temperature10 251-255 Color temperature11 000-010 NO Function strobe...
  • Page 13 LED UP Quad-4 FUNCTI Step 1 Step 2 Description BLACKOUT Any key- Press “BLACKOUT”, press other keys are BLACKOUT press invalid, power is not saved. Strobe(power save) Available for ： STROBE STROBE AUTO/SOUND/STOBE/FADE/MANUAL/RGBA UVW/Number： 0-9 SPEED Auto program speed SPEED...
  • Page 14 LED UP Quad-4 Functio MANUAL Functio R/G/B/A/U R/G/B/A/U Functio R/G/B/A/U STROBE R： red； G： green； B：blue；A： amber； UV： purple；W： white； Functio Number:0-9 The color on IRC is match with the lighting color. Functio Number:0-9 STROBE Number:0-9 Functio Number:0-9...

  • Page 15: Technical Specifications

    LED UP Quad-4 4.0 Technical Specifications OPTICS LED Specification 4x10W RGBW LED quantity Field Angle 30° Beam Angle 15° Output Control Control method WDMX Compatibility DMX Channels 4,6 and 10 Dimming Curves 4 Modes Dimming Resolution 16 bit Data Connections...
  • Page 16 LED UP Quad-4 Size 137x191x145 mm Cooling System IP Rating...
