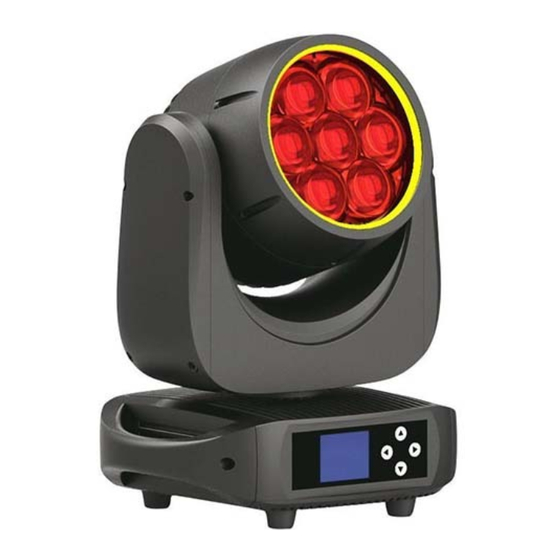

ShowPro NEPTUNE 300 WASH User Manual
  1. Manuals
  2. Brands
  3. ShowPro Manuals
  4. Lighting Equipment
  5. NEPTUNE 300 WASH
  6. User manual

ShowPro NEPTUNE 300 WASH User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NEPTUNE 300 WASH
USER MANUAL
LEDMOV630

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEPTUNE 300 WASH and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro NEPTUNE 300 WASH

Summary of Contents for ShowPro NEPTUNE 300 WASH

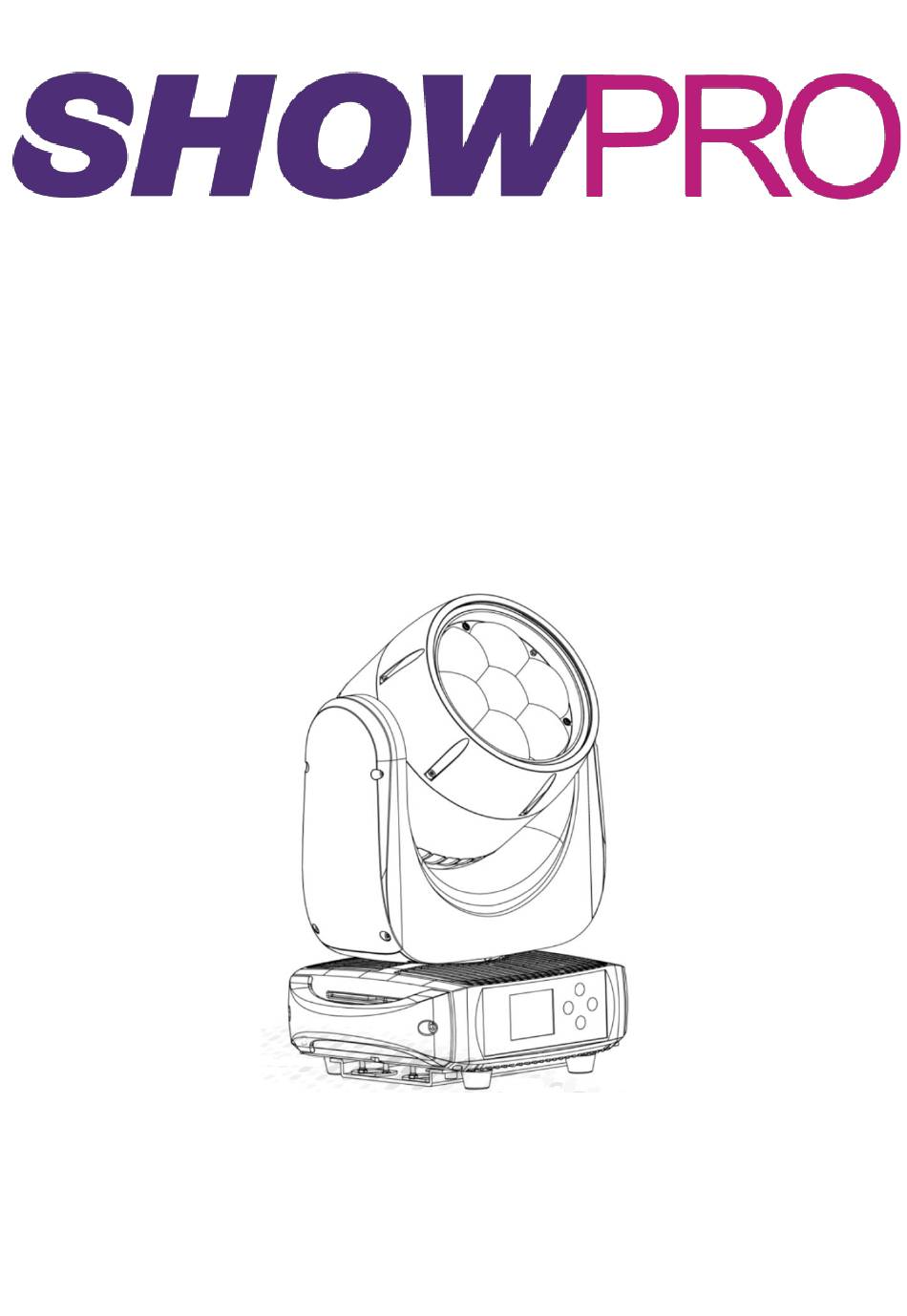

  • Page 1 NEPTUNE 300 WASH USER MANUAL LEDMOV630...

  • Page 2: Technical Specifications

    1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS9662XLEM LED colors 7PCS*40W RGBALC LED Angle Beam Angle：3.5°~35°，Field Angle: 5°~ 45° Power 320W DMX512，RDM，W-DMX（Optional） Control Protocol Voltage Range AC100~240V,50/60Hz Input Current 110V/3A,220V/1.5A Protection IP65 Operation Temperature -20℃~45℃ Dimensions 290x227x375mm Weight 10kg DIMENSIONS...

  • Page 3: Safety Notes

    1.2 Safety Notes IMPORTANT ⚫ This product must be installed by a qualified professional. ⚫ To keep the fixture in good condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes outlined in this manual. ⚫...
  • Page 4 Keep the product well away from flammable materials ⚫ Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from the product. ⚫ Ensure that there is free and unobstructed airflow around the product. Provide a minimum clearance of 150 mm (6 in.) around fans and air vents.

  • Page 5: Truss Installation

    2 INSTALLATION 2.1 MOUNTING Truss installation ◆ Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from the product. ◆ For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture.

  • Page 6: Data Network Requirements

    2.4 Data network requirements ◆ Connect the DMX512 controller to the units in series. A DMX 512 data link is required to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. ◆ Each unit has N DMX channels so the DMX Addresses should increase by increments of 1，...

  • Page 7: Functions And Settings

    3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION ◆ LEFT: Used to access the menu or to return a previous menu option. ◆ RIGHT: Used to select and store the current menu or confirm the current function value or option within a menu. ◆...
  • Page 8 (slow)； 1200Hz (Default) Sets the PWM frequency 2400Hz LED PWM 4000Hz 6000Hz 25000Hz SAVE (Default) Hold after loss of DMX signal ERROR BLACK Blackout after loss of DMX signal Display backlight always on 30s(Default) Turns off display backlight after DISPLAY 30s/1min/2min of inactivity TIME 1min...
  • Page 9 0-255 RED Ring 0-255 GREEN Ring 0-255 BLUE Ring 0-255 TIME 0-255 Select YES to run the steps user YES/NO need. Auto Test Auto Test channel 0-255 Manual control channel TITL 0-255 ZOOM 0-255 0-255 GREEN 0-255 BLUE 0-255 CHANNEL LIME 0-255 STROBE...

  • Page 10: Using A Dmx512 Controller

    4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC(20CH) Value Function CH.1 0-255 CH.2 0-255 PAN FINE CH.3 0-255 PAN FINE CH.4 0-255 TITL FINE CH.5 0-255 PT SPEED CH.6 0-255 INTENSIYT CH.7 0-255 CH.8 0-255 HUE FINE CH.9 0-255 SATURATION NO FUNCTION 1800K...
  • Page 11 025-029 Yellow 030-034 Magenta 035-039 Cyan 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac 075-079 Moss green 080-084 Signal violet 085-089 Red lilac 090-094 Purple red 095-099 Green brown 100-104 Pale green 105-109...
  • Page 12 164-177 FX12 178-191 FX13 192-205 FX14 206-219 FX15 220-233 FX16 234-247 FX17 248-255 Open Ring Speed(SPEED 1 —> 100%) CH.18 0-255 CH.19 0-255 Ring Dimmer CONTROL（EXECUTE AFTER 3 SECONDS） 0-10 NO FUNCTION 11-20 PAN/TILT BLACK ACTIVATED 21-30 PAN/TILT BLACK DEACTIVATED 31-40 PAN INVERT 41-50...
  • Page 13 CH.13 0-255 LIME FINE CH.8 CH.8 CH.14 0-255 DIMMER CH.15 0-255 DIMMER FINE STROBE NO FUNCTION STROBE FROM （SLOD TO FAST,0-25Hz） 10-99 CH.9 CH.9 CH.16 100-109 NO FUNCTION 110-179 LIGHTNING STROBE 180-189 NO FUNCTION 190-255 RANDOM STROBE PRESET COLOR CH.10 CH.17 0-10 NO FUNCTION...
  • Page 14 060-064 May green 065-069 Reseda green 070-074 Blue lilac 075-079 Moss green 080-084 Signal violet 085-089 Red lilac 090-094 Purple red 095-099 Green brown 100-104 Pale green 105-109 Ruby red 110-114 Flame red 115-119 Red orange 120-124 Rose 125-129 Honey yellow 130-134 Light Pin 135-139...
  • Page 15 Ring Speed(SPEED 1 —> 100%) CH.16 CH.18 CH.25 0-255 CH.17 CH.19 CH.26 0-255 Ring Dimmer CONTROL（EXECUTE AFTER 3 SECONDS） 0-10 NO FUNCTION 11-20 PAN/TILT BLACK ACTIVATED 21-30 PAN/TILT BLACK DEACTIVATED 31-40 PAN INVERT 41-50 TILE INVERT 51-60 PAN/TILT INVERT OFF 61-70 LIVE 71-80...
  • Page 16 NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K 4500K CH.12 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K CH.13 0-255 ZOOM CH.14 0-255 RED RING CH.15 0-255 GREEN RING CH.16 0-255 BULE RING Ring Color Presets 000-009 Open 010-014 015-019 GREEN 020-024 BLUE...
  • Page 17 125-129 Honey yellow 130-134 Light Pin 135-139 Deep orange 140-144 Lemmon 145-149 Golden yellow 150-154 Pastel orange 155-159 Cream 160-164 Melon yellow 165-169 Luminous orange 170-174 Luminous yellow 175-179 Open 180-248 Stop Color FX 249-255 Open Color FX Open 10-23 24-37 38-51 52-65...
  • Page 18 101-110 DIMMER OFF 111-120 DIMMER DIM4 121-150 RESERVED 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-220 XY RESET 221-230 ZOOM RESET 231-255 RESERVED PIXEL(24CH) Value Function CH.1 0-255 CH.2 0-255 PAN FINE CH.3 0-255 TILT CH.4 0-255...
  • Page 19 115-119 Red orange 120-124 Rose 125-129 Honey yellow 130-134 Light Pin 135-139 Deep orange 140-144 Lemmon 145-149 Golden yellow 150-154 Pastel orange 155-159 Cream 160-164 Melon yellow 165-169 Luminous orange 170-174 Luminouse yellow 175-179 Open 180-248 Stop Color FX 249-255 Open Color FX Open...
  • Page 20 81-90 POWER 91-100 RESERVED 101-110 DIMMER OFF 111-120 DIMMER DIM4 121-150 RESERVED 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-220 XY RESET 221-230 ZOOM RESET 231-255 RESERVED CH.15 0-255 DIMMER STROBE NO FUNCTION STROBE FROM （SLOD TO FAST，0-25Hz） 10-99 CH.16 100-109...
  • Page 21 Annex 1 PRESET COLOR Value Color Names NO FUNCTION 0-10 RESERVE 11-15 Loving Amber 0.407 0.321 COLOR 1 16-20 Light Salmon 0.499 0.321 COLOR 2 21-25 Scarlet 0.561 0.296 COLOR 3 L164 26-30 Flame Red 0.659 0.302 RESERVE 31-35 Easy White 0.389 0.344 RESERVE...
