Summary of Contents for ShowPro Dreampix Driver 1800 IP

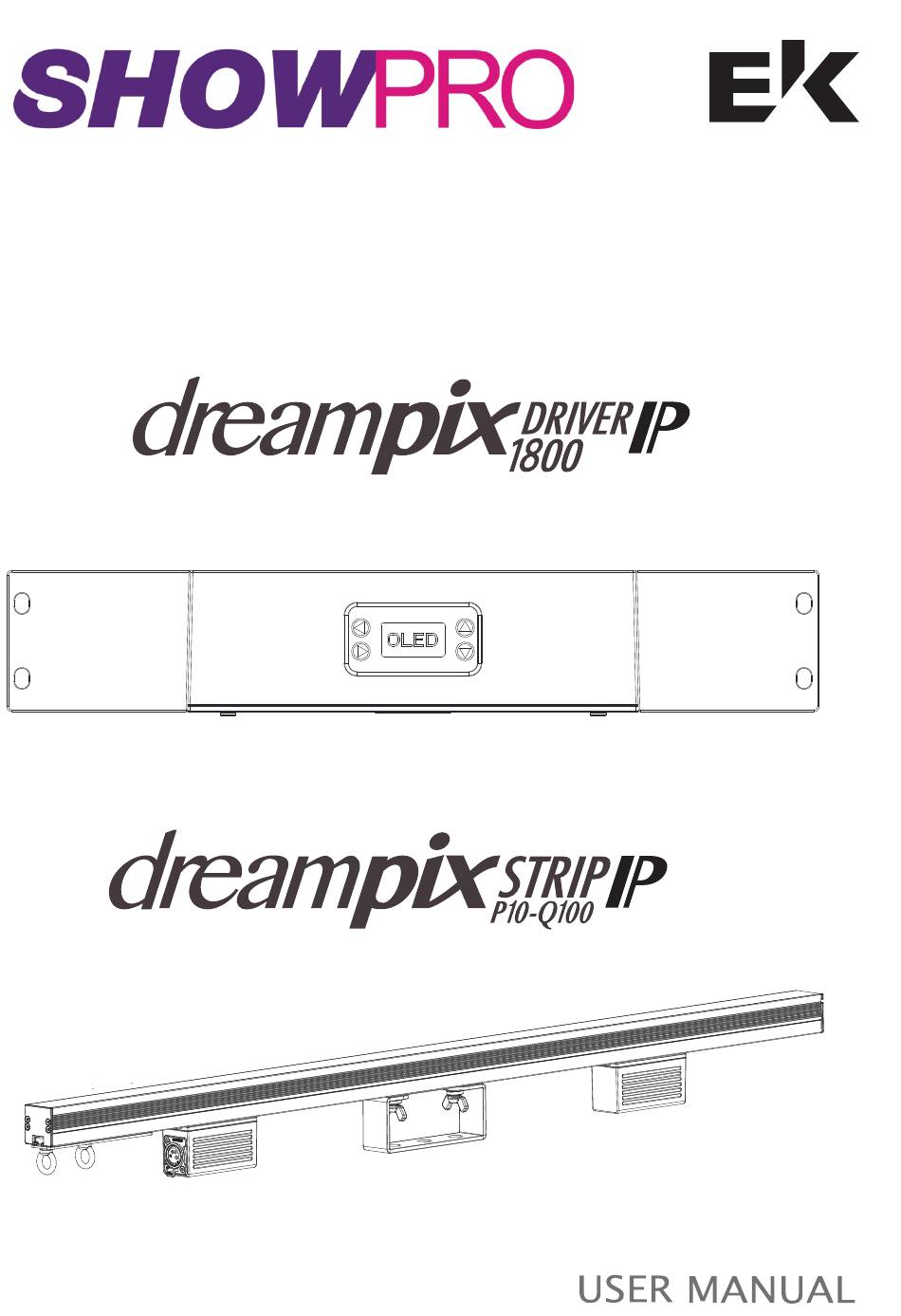

- Page 1 Outdoor-rated networkable Pixel-mappable lighting system.
-
Page 2: Table Of Contents
www.eklights.com CONTENT SAFETY DIMENSION DESCRIPTION INTRODUCTION CONNECTION MENU DMX CHANNEL TROUBLE SHOOTING... -
Page 3: Safety
WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and mai ntenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with •... -
Page 4: Dimension
www.eklights.com DIMENSION DIMENSION 84.5... -
Page 5: Description

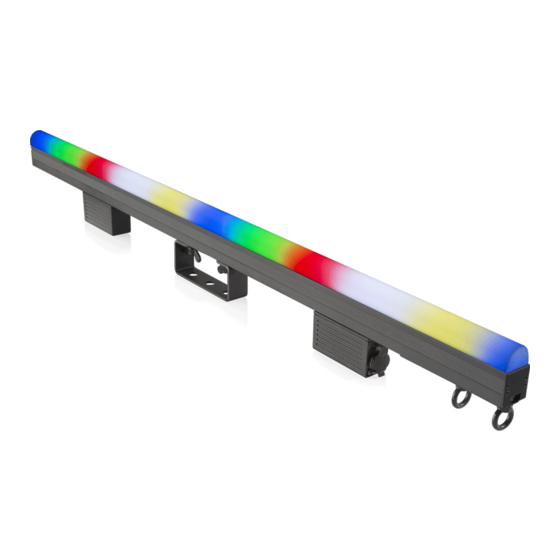

-100 SMD 5050 RGB LEDs (100 x 1 matrix) -Three lens options included: -Endless possibilities for creative arrangements -Art-Net control via DREAMPIX DRIVER 1800 IP DREAMPIX DRIVER & ARTNET INTERFACE - OUTDOOR RATED Powers and controls up to 20 Dreampix Strip IP Fixtures (10 per output) -Rugged IP65 construction built to withstand weather &... -
Page 6: Introduction
www.eklights.com INTRODUCTION Button OLED Display Power In Power Out 4-pin DMX Out Ethernet In Fast Lock Holder Safety Roop Interlocking Hardware Bracket Position Adjustment Knob Bracket 4-Pin Power/Data Out 4-Pin Power/Data In... -
Page 7: Connection
CONNECTION Switch GroupA 10pcs GroupB 10pcs... -
Page 8: Menu
www.eklights.com MENU Art-net(IP 1-126.xxx.xxx.xxx) IP Address IP Address1-10 SACN(IP:1-255.xxx.xxx.xxx) Port A DMX Address 1-512 Default : 1 Pixel 7-Channel 5-Section Personality Default : Pixel 10-Section 25-Section 50-Section 0-246 (Art-net) Default : 0 Universe 1-247 (sACN) Default : 1 Port B Art-net(IP 1-126.xxx.xxx.xxx) IP Address IP Address1-10... - Page 9 MENU Main Menu Submenu Submenu Submenu Remark Automatically nds and addresses No-Yes the products Auto Address Port A Displays the connected products View Linked Fixtures Port B Green LED Output Blue White Fade Scroll Art-Net Port A Kling-Net Device ID Default :Art-Net sACN Protocol...
-
Page 10: Dmx Channel
www.eklights.com DMX CHANNEL 300CH Value Setting/Percent Remark Red1 0-100% 000-255 000-255 Green1 0-100% Pixel 1 000-255 Blue1 0-100% 000-255 Red2 0-100% 000-255 Green2 0-100% Pixel 2 000-255 Blue2 0-100% ***-*** **-**** ***-*** **-**** ***-*** **-**** 295 000-255 Red99 0-100% 296 000-255 Green99 0-100% Pixel 99 Blue99... - Page 11 DMX CHANNEL 000-255 Master Dimmer 1-100% 000-255 Red 0-100% Green 0-100% 000-255 000-255 Blue 0-100% 000-022 NO Function Auto 1 023-037 038-052 Auto 2 053-067 Auto 3 068-082 Auto 4 083-097 Auto 5 098-112 Auto 6 113-127 Auto 7 128-142 Auto 8 Auto 9 143-157...
- Page 12 www.eklights.com DMX CHANNEL 15CH 000-255 Red1 0-100% Green1 0-100% 000-255 Pixel 1: 1-21 000-255 Blue1 0-100% 000-255 Red2 0-100% Pixel 2: 21-40 000-255 Green2 0-100% Blue2 0-100% 000-255 000-255 Red3 0-100% Green3 0-100% 000-255 Pixel 3: 41-60 Blue3 0-100% 000-255 000-255 Red4 0-100%...
- Page 13 DMX CHANNEL 75CH 000-255 Red 1 0-100% 000-255 Green1 0-100% Pixel 1: 1-4 000-255 Blue1 0-100% Red2 0-100% 000-255 Green2 0-100% 000-255 Pixel 2: 5-8 Blue2 0-100% 000-255 ***-*** **-**** ***-*** **-**** ***-*** **-**** 000-255 Red24 0-100% 000-255 Green24 0-100% Pixel 24: 93-96 000-255 Blue24...
-
Page 14: Troubleshooting
www.eklights.com TROUBLESHOOTING Problems Possible causes Checks and remedies No mains supply • Check the power supply voltage • Dimmer fader set to 0 • Increase the value of the DMX channels • to 0 All color faders set • Increase the value of the color channels •...
