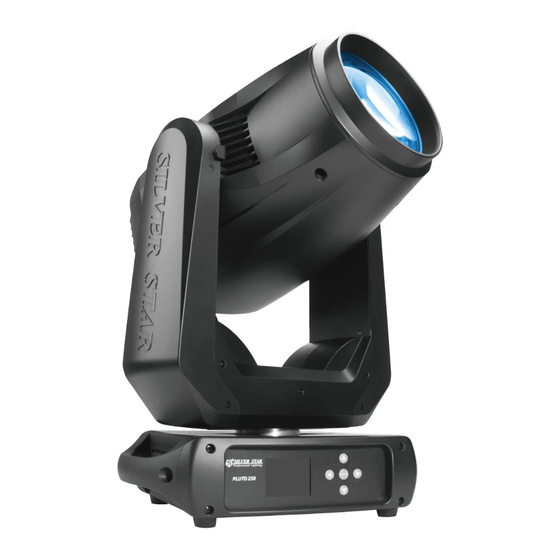

- Page 1 PLUTO 250 USER MANUAL ® PLUTO 250 LEDMOV510...
-
Page 2: Product Introduction
Product Introduction 1.1 Specification Product Code SS662SC Dimenson 358×250×609(mm) Weight 19KG Rated Power 320W Input Voltage AC100~240V Frequency Range 50/60Hz Ambient Temperature 0℃~45℃ Beam Angle 3°~35° Control Model DMX512/RDM 358 mm 250 mm... -
Page 3: Safety Warning
1.2 Safety warning IMPORTANT Always read the user manual before operation. Please confirm that the power supply stated on the product is the same as the mains power supply in your area. • This product must be installed by a qualified professional. •... -
Page 4: Installation
Always ensure that mounting surface can withstand 10 times the weight of the fixture. Always use a safety cable when mounting the fixture in any elevated position. Contact your ShowPRO supplier for assistance if you have any questions about how to install this product safely. UPRIGHT... -
Page 5: Power Connections
2.3 Power connections This product uses input and output power cable is 1.5 square mm copper wire Note: If the signal cable is over 60m between the DMX512 controller and fixture or beween two fixtures, then a DMX signal amplifier is needed as well. This product provides for the use of input power and signal cables are three-core,the connection diagram is as follows 100~240VAC Input... - Page 6 Display panel operation 3.1 Display operation Back Down Enter <UP> Scroll 'UP' through the menu list or increase the value of the current function. <DOWN> Scroll 'DOWN' through the menu list or decrease the value of the current function.
- Page 7 3.2 Menu MENU ADDRESS 001-512 PERSON STANDARD BASIC RUNMODE DMX512 AUTO CUSTOM 1 CUSTOM 2 OPTION OFF/ON PAN INVERT OFF/ON TILT INVERT SLOW FANS NORMAL FAST AUTO NO/YES BLACKOUT DIMMER DIM 4 DIM 3 DIM 2 DIM 1 LED PWM 1200Hz 2400Hz 4000Hz...
- Page 8 RESET PT RESET COLOR SYSTEM GOBO SYSTEM OTHER FIXTURE HOURS INFO LED USE HOURS TEMPERATURE VERSION 0x388Axxxxxxxx LABEL PLUTO 250 SYSTEM ERROR MEMORY IC ANGLESENSOR PAN SENSOR PAN ENCODER PAN DRIVEIC TILT SENSOR TILTENCODER TILTDRIVEIC TEMPERATURE COLOR RESET FGOBO RESET...
-
Page 9: Dmx Address
DMX Address ADDRESS • Enter the【DMX】mode to set the DMX address. • Enter Up/Down select【1~512】address. • Enter【MENU】return. 3.4 Personality(Person) PERSON STANDARD BASIC • Enter the【PERSON】mode to select DMX mode:【STANDRAD】,【BASIC】. 3.5 Runmode RUNMODE 【RUNMODE】menu, select required run mode,there are six modes inside:【DMX512】 •... - Page 10 DMX ERROR DISPLAY ON DISPLAY LOCK LOAD PARA SETTING RESET SIGNAL • Enter【OPTION】into the machine set. 【PAN INVERT】menu, select【NORMAL】for normal direction, select【INVERT】for • inverted of the PAN direction. 【FANS】menu, select【Slow/Norm/Fast/Auto】as required fan speed. • Choose【OFF】and【ON】to close and open the 【BLACKOUT】mode. •...
-
Page 11: Manual Control Mode
【PT ENCODER】XY encoder switch,【OFF】is close,【ON】is open.【WDMX • RESET】wireless resetting,use for patch wireless signal,【YES】is clear the receiver's message,press again patch wireless signal,【No】do not clear the receiver's message. 【SIGNAL】is signal setting, ONLY XLR is wire only, XLR FIRST is wire first, ONLY WDMX •... - Page 12 【GOBO SYSTEM】fix gobo resetting. press No do not resetting, press Yes resetting. 【OTHER】focus、zoom、prism、frost、iris，press No do not resetting, press Yes resetting. 3.9 Info INFO FIXTURE HOURS LED USE HOURS TEMPERATURE VERSION 0x388Axxxxxxxx PLUTO 250 LABEL SYSTEM ERROR MEMORY IC ANGLESENSOR PAN SENSOR PAN ENCODER PAN DRIVEIC TILT SENSOR TILTENCODER...
- Page 13 【TEMPERATURE】is led temperature. • 【VERSION】is software versions； • 【NETWORK PARA】check network parameter； • 【RDM】check fixture's ID； • 【SYSTEM ERROR】system information error:Memory IC,AngleSensor,PanSensor,Pan • Encoder,Pan Drive IC,Tilt Sensor,TiltEncoder,TiltDriveIC,Temperature,Color Reset,FGobo Reset,Gobo Reset,RGobo Reset,Zoom Reset,Focus Reset,Prism Reset. 3.10 Service ±127 SERVICE **** TILT ±127 COLOR ±127...
-
Page 14: Using A Dmx512 Controller
Using a DMX512 Controller 4.1 Channel Assignment Note: this product have two DMX512 channel configuration:【STANDARD】,【BASIC】. STANDARD CHANNEL VALUE FUNCTION CH.1 PAN 0-540° CH.2 PAN FINE CH.3 TITL 0-270° CH.4 TITL FINE CH.5 PT SPEED COLOR WHEEL 8+1 WHITE COLOR01 COLOR02 COLOR03 COLOR04 COLOR05... - Page 15 CHANNEL VALUE FUNCTION GOBO9 GOBO10 GOBO11 CH.8 GOBO1 SHAKE (SPEED 1 —> 100%) GOBO2 SHAKE (SPEED 1 —> 100%) GOBO3 SHAKE (SPEED 1 —> 100%) GOBO4 SHAKE (SPEED 1 —> 100%) GOBO5 SHAKE (SPEED 1 —> 100%) GOBO6 SHAKE (SPEED 1 —> 100%) GOBO7 SHAKE (SPEED 1 —>...
- Page 16 CHANNEL VALUE FUNCTION ROTATING GOBO FLOWING WATER EFFECT (SPEED 1—>100% GOBO ROTATING ROTATING GOBO ANGLE ADJUSTMENT (0 —> 360°) STOP ROTATING GOBO SHAKE (SPEED 1 —> 100%) CH.10 STOP ROTATING GOBO POSITIVE ROTATION (SPEED 100% —> 1) STOP ROTATING GOBO REVERSE ROTATION (SPEED 1 —> 100%) PRISM WHITE PRISM 0-360°...
- Page 17 VALUE FUNCTION CHANNEL NO FUNCTION RANDOM STROBE CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED PAN INVERT TILT INVERT PAN/TILT INVERT OFF FAN SLOW FAN NORMAL FAN FAST FAN AUTO DIM4 DIM3 CH.18 DIM2 DIM1 DIM OFF 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz...
- Page 18 VALUE FUNCTION CHANNEL COLOR02 COLOR03 COLOR04 COLOR05 COLOR06 CH.4 COLOR07 COLOR08 COLOR WHEEL 0-360° COLOR WHEEL RAINBOW EFFECT (SPEED 100%->1) STOP COLOR WHEEL RAINBOW EFFECT (SPEED 1-> 100%) CH.5 8 ON CHANNELS 10. COLOR WHEEL FINE ADJUSTMENT. AVAILABLE WHEN THE VALUE IS UNDER 12 STATIC GOBO 11+1 WHITE GOBO1...
- Page 19 CHANNEL VALUE FUNCTION STATIC GOBO FLOWING WATER EFFECT (SPEED 1—> 100%) ROTATING GOBO 8+1 WHITE GOBO1 GOBO2 GOBO3 GOBO4 GOBO5 GOBO6 GOBO7 GOBO8 GOBO1 SHAKE (SPEED 1 —> 100%) CH.7 GOBO2 SHAKE (SPEED 1 —> 100%) GOBO3 SHAKE (SPEED 1 —> 100%) GOBO4 SHAKE (SPEED 1 —>...
- Page 20 CHANNEL VALUE FUNCTION ZOOM CH.10 AUTO FOCUS NO FUNCTION CH.11 CH.12 MANUAL FOCUS DIMMER CH.13 STORBE NO FUNCTION STROBE FROM （SLOW TO FAST ,0-25Hz) CH.14 NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM STROBE CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED PAN INVERT TILT INVERT PAN/TILT INVERT OFF...
- Page 21 CHANNEL VALUE FUNCTION 1200Hz 2400Hz 4000Hz 6000Hz 25000Hz ALL RESET XY RESET COLOR SYSTEM RESET GOBO RESET FOCUS\ZOOM NO FUNCTION...
