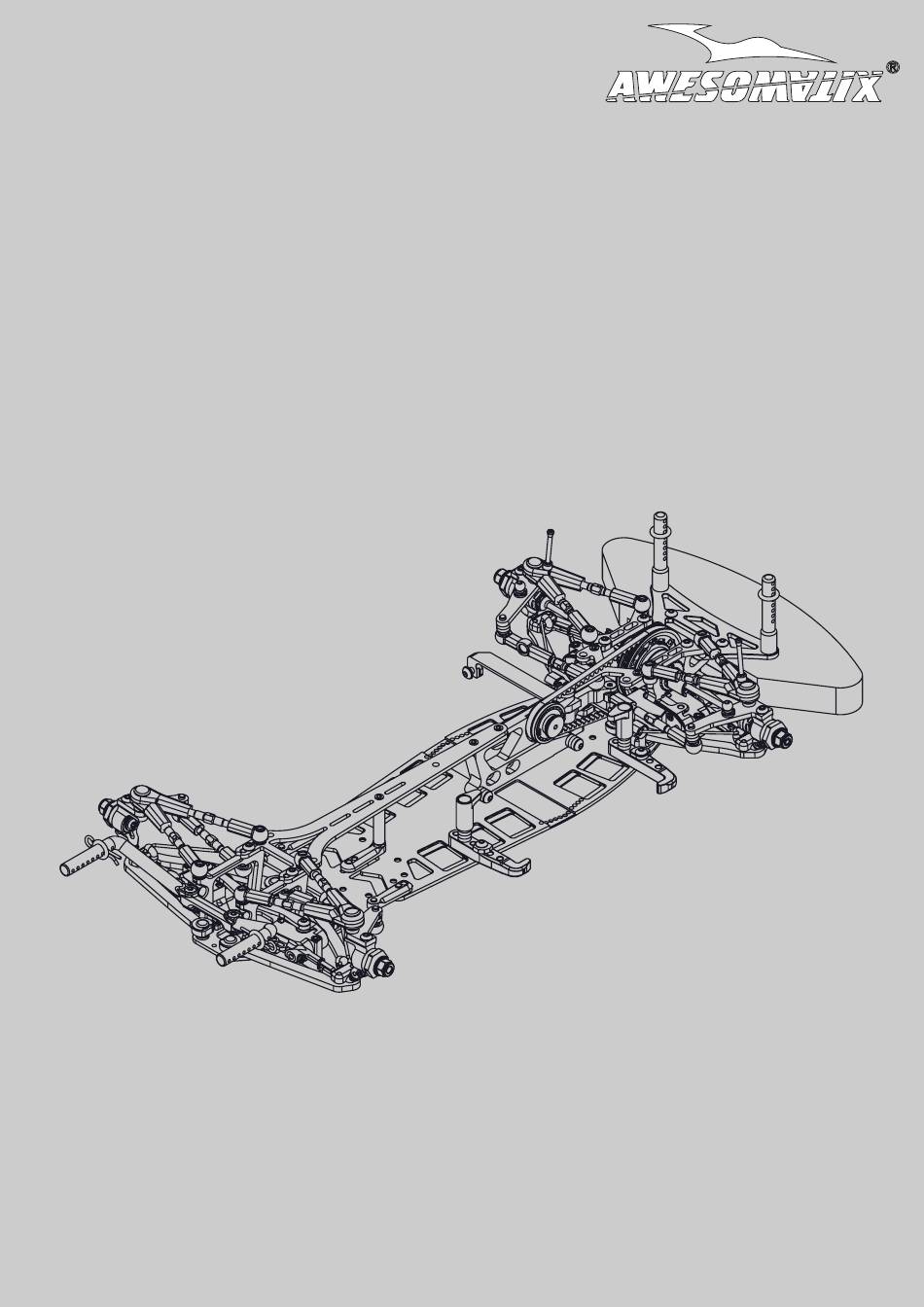

  • Page 1 A800FXR 1/10-SCALE FRONT-WHEEL DRIVE TOURING CAR INSTRUCTION MANUAL...
  • Page 2 A800FXR car you must not begin assembly. A800FXR car cannot be returned to UAB Awesomatix for a refund or exchange if it has been fully or partially Your assembled. This kit is a radio controlled model racing product and could cause harm and personal injury.
  • Page 3 Note these items at assembling of the car. Note the shoulder ST112 screws - used for fastening only B106RS bulkheads and dampers to the lower deck! ball bearing 5,9 mm 5,8 mm 5,2 mm 10 mm ST122-1 ST019 ball bearing 8 mm ST143 with OR1010V o-ring B73SS...
  • Page 4 STEP 1 - Assembling of the D4 Dampers D4 dampers feature external switching between linear, progressive and semi-progressive damping modes without the need for disassembly. Insert OR2010V o-ring into the upper cavity of AM242R/L-D4 case. Lubricate ST143 with small amount of silicon oil. Note that one OR1010V o-ring is already factory installed on each ST143.
  • Page 5 Shave off some material as shown if necessary: P67-D4 P67-D4 Shave off ~0,3 mm P14-2 x3 Enlarge holes to 6,0 mm TIP / Recommended items: MAX-02-003 - MXLR Awesomatix A800R ShockVac MAX-01-003 - MXLR O-Ring grease (for P63 & OR52V)
  • Page 6 Install the dampers on the air remover stand and keep them vertically. We recommend 275 cst silicone oil as a base. Fill up the dampers with the desired silicone oil. The oil level should reach the top face of AT243-D4 and AT241 at this stage. Make sure to also fill up the cavity over P63-R piston.
  • Page 7 Install ST102F (longer part) onto the front dampers and ST102R (shorter part) onto the rear dampers. Keep the damper vertically and swing AT241 rotor a few times in both directions. In case you feel air bubbles inside the damper remove AM240-D4 cover, add some oil into the damper and repeat the AM240-D4 installation process. ST102R ST102R 27,5 mm...
  • Page 8 STEP 2 Depending on the desired wheelbase, there are 4 options for connecting the front and rear lower decks. See WHEELBASE SETTING on page #24 of the manual. AT21ST-A x4 AM286 AM286 FRONT AT21ST-A x4 AM286 SH1.0 x4 SF3X6 x4 C01FXR-A C128C Note: At 0mm FF roll centre...
  • Page 9 STEP 5 P12FXR P12FXR P12X P12X SB3X5 C45FXR SB3X5 SF3X8 SF3X8 Note: P12FXR sway bar holders should be installed at the front of the car. SF3X8 P12X sway bar holders should be installed at the rear of car. SF3X8 STEP 6 SS3X4 x2 SS3X5 x2 SF3X5 screws can be added or removed from the motor mount to alter...
  • Page 10 STEP 8 Optional OR14V rubber o-rings can be used instead of P07 clips. OR14V snap snap Snap P07 clips and tighten SB3X6 screws under AT21ST-A balls after. STEP 9 Crimp P03 cups with flat lips pliers if the lower arms movement is tight. Prepare 2 sets with this layout snap ST05-R...
  • Page 11 STEP 11 BW29 BW41 BW29 BW41 SF3X5 x4 STEP 12 Insert SS3X4 set screw into AM285 bulkhead as shown (protruding ~1-1,2 mm) ST112 x4 Thread Lock AM285 SS3X5 ST112 x4 ST24 x2 Install two ST24 ball studs into the rear AM285 bulkheads before bolting them onto the chassis.
  • Page 12 TIP / Recommended items: Use the Thread Lock MAX-01-003 - MXLR O-Ring grease (for OR05V) for these screws. B106RS MAX-02-002 - MXLR Awesomatix TC Multi Tool STEP 16 STEP 17 TIP / Recommended items: MAX-01-001 - MXLR Ball Bearing oil Fill up with the desired silicone oil (not included).
  • Page 13 STEP 18 SB3X5 x4 P110 AM19-R x2 Note: This recess on AM19-R should be oriented downward. P110 BEL225 Note the correct layout of belt and differential! Initial position of front P110 Note this pin position...
  • Page 14 STEP 19 Note: Do not tighten SS3X3 set screws at this stage. Note: SWB-R-1.3 - three strips SWB-R-1.2 - two strips SWB-R-1.1 - one strip SS3X3 SWB-R-1.0 - no strips SS3X3 AT142 B63SS AT142 B63SS STEP 20 Install the rear sway bar into P12X and the front sway bar into P12FXR. Adjust AT142 stoppers to achieve centered sway bar position and then tighten SS3X3 set screws.
  • Page 15 STEP22 AT21ST-A P13X SB3X6 SH0.5 AT14 SB3X6 P13X SH0.5 Servo horn (not included) SB3X6 AM24FX ST24 Servo (not included) SF3X5 x2 SH3X5X0.1 AM180FX SH0.5 x2 SB3X6 x2 16,5-17,0 mm AT21ST-A x2 Recommended Servo horn length: 16,5-17,0 mm. SB3X10 ⚠ Note: Note: not all low-profile servos share Shave off the top of P13X the same height.
  • Page 16 STEP 24 ST019 x3 ST019 x2 C107S-2 SB3X5 x2 ST019 C27FXR Note recess orientation on C107S-2 top deck. recess ST019 Note the possibility to use x4 ST019 in all front holes of C107S-2 to reduce front flex while also increasing upper deck durability ST019 screws layout in different holes of rear top deck is used to adjust torsional flex.
  • Page 17 STEP 26 AT21ST-A ST03 ST03 SH0.5 SH0.5 SH1.75 SH1.75 SH1.0 SB3X5 AM14FX SB3X5 SH1.75 AM23-1 SH1.75 SH1.0 SB3X6 SH1.0 SH1.75 ST24 ST24M AM06WL AM06WL SH3X5X0.5 ST03 ST03 SH3X5X0.5 ST03 ST24 Note: The last turns of the lower ST03 Ball Studs and SB3X5 screws can be tight.
  • Page 18 STEP 27 Apply Joint Grease to ST38 the rubbing surfaces. ST01 Thread Lock ST16 PIN01 ST17 -1 ST16 SPR07 ST113 PIN01 B415 ST38 Attention! Note the mutual orientation of ST16 before screwing on ST116 ST38. The pins of both ST16 must be parallel to each other.
  • Page 19 STEP 29 snap SC2X22 snap P01X SC2X22 Build two for the rear Build two for the front P13X P13X AT25 P13X P13X AT25-44 Build 2 rear steering rods Build 2 front steering rods P13X P13X AT14 AT14 Front right Front left upper arm AT14 upper arm...
  • Page 20 STEP 30 Unscrew SB25X8 screws by ~3 turns and shift P04 up to create ~1.5mm gap between P04 and the lower arm. Insert P03 ball into the spherical cavity of the lower arm and tighten SB25X8 screws. Insert the driveshaft inner joint into the outdrive of diff/spool. SB25X8 Note: Don’t overtighten SB25X8 screws to avoid ST03 ball binding!!! Achieve a free action of the ball joint with a minimal play.
  • Page 21 STEP 32 SB3X14 SB3X14 AT12 SH0.5...SH1.75 SH0.5...SH1.75 P23-R P23-R SF3X8 x2 SF3X8 x2 Note: Use an appropriate combination of SH spacers under P25 clamps to allow ~0,3 mm vertical free play of the battery. STEP 33 SH1.75 SB3X8 SH1.75 Note: Use an appropriate combination of SH spacers under SB3X8 screws to allow ~0,2 mm lateral free play of the battery.
  • Page 22 STEP 35 OR06 OR06 P15L SPR05 SPR05 SB3X8 x2 P14-2 P14-2 Use P15L foam bumper if ST265R weight is not used. P14-5-R SB3X6 x2 P15FX ST110 ST265R can ST265R accommodate up to 6 additional (can be installed or not, ST110 weights. depending on setup) P14-1-R SB3X10...
  • Page 23 STEP 38 Note: This orientation of the hex driver should be used for tightening of the pinion gear set screw. 28T - 55T 64dp, 21T - 41T 48dp pinion gears can be installed SS3X3 Motor (not included) Pinion Gear (not included) SH0.5 x2 SB3X8 x2 Install: speed controller (not included),...
  • Page 24 WHEELBASE SETTING SB3X5 AM286 AM286 C128C ST112 ST112 SF3X5 Unscrew only 7 things for a wheelbase change: two ST112, one SF3X5, two SB3X5 screws and two ST24 ballstuds. Then bend the top deck up a little and slide C128C rear lower deck back or forward.
  • Page 25 1mm. (H1-H2)*1.5 for front (H1-H2)*1.7 for rear TIP / Recommendation to use MAX-02-001 - MXLR Awesomatix Caster Tool Body shell front end downtravel adjustment: Rear suspension toe-in adjustment: Use SC2X22 screws to adjust bodyshell down Rear rod 0.5mm elongation reduces the toe-in by 1.0°...
  • Page 26 D4 dampers setting technique Attention! D4 dampers allow to adjust the damping level, spring rate and progressivity of damping without replacing of the shock’s oil and spring and without disassembling the damper. 1. Damping and Shock Spring rate setting Increase B distance (slide AT119R holder outward) to increase the spring rate.
  • Page 27 FINAL DRIVE RATIO CHART DRIVE TRAIN RATIO IS 1,9 64dp SPUR GEAR SIZE 1,9 80 99 100 101 102 103 104 105 106 7,19 6,88 6,94 6,59 6,65 6,71 6,31 6,37 6,44 6,50 6,06 6,12 6,18 6,23 6,29 5,82 5,87 5,93 5,99 6,05 6,10 5,64 5,64 5,70 5,76 5,81 5,87 5,92 5,37 5,43 5,48 5,54 5,59 5,65 5,70 5,75 5,17 5,23 5,28 5,33 5,38 5,44 5,49 5,54 5,59...
  • Page 28 SETUP SHEET A800FXR BASE / KIT SETUP 2025 ° DATE NAME TEMP. C AIR / TRACK TRACK SURFACE CARPET COUNTRY ASPHALT TRACK LAYOUT TECHNICAL MIXED FAST RACE TRACTION MEDIUM HIGH TRACK FRONT REAR 2,25 2,25 AT13W AT13W AT15 AT15 AM19-R...
  • Page 29 P12X Sway Bar Holder P12FXR Sway Bar Holder BEL225B Belt 225 mm Bando DG1XM Damper Guage Set P13X Ball End STS-A800FXR A800FXR Stickers Sheet P14X Bumper Set P15FX Foam Bumper FWD P15L Foam Bumper Lock Ring P23-R Outer Battery Holder...
