A800X EVO
МАСШТАБ 1 : 1
1/10-SCALE TOURING CAR
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A800X EVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Awesomatix A800X EVO

Summary of Contents for Awesomatix A800X EVO

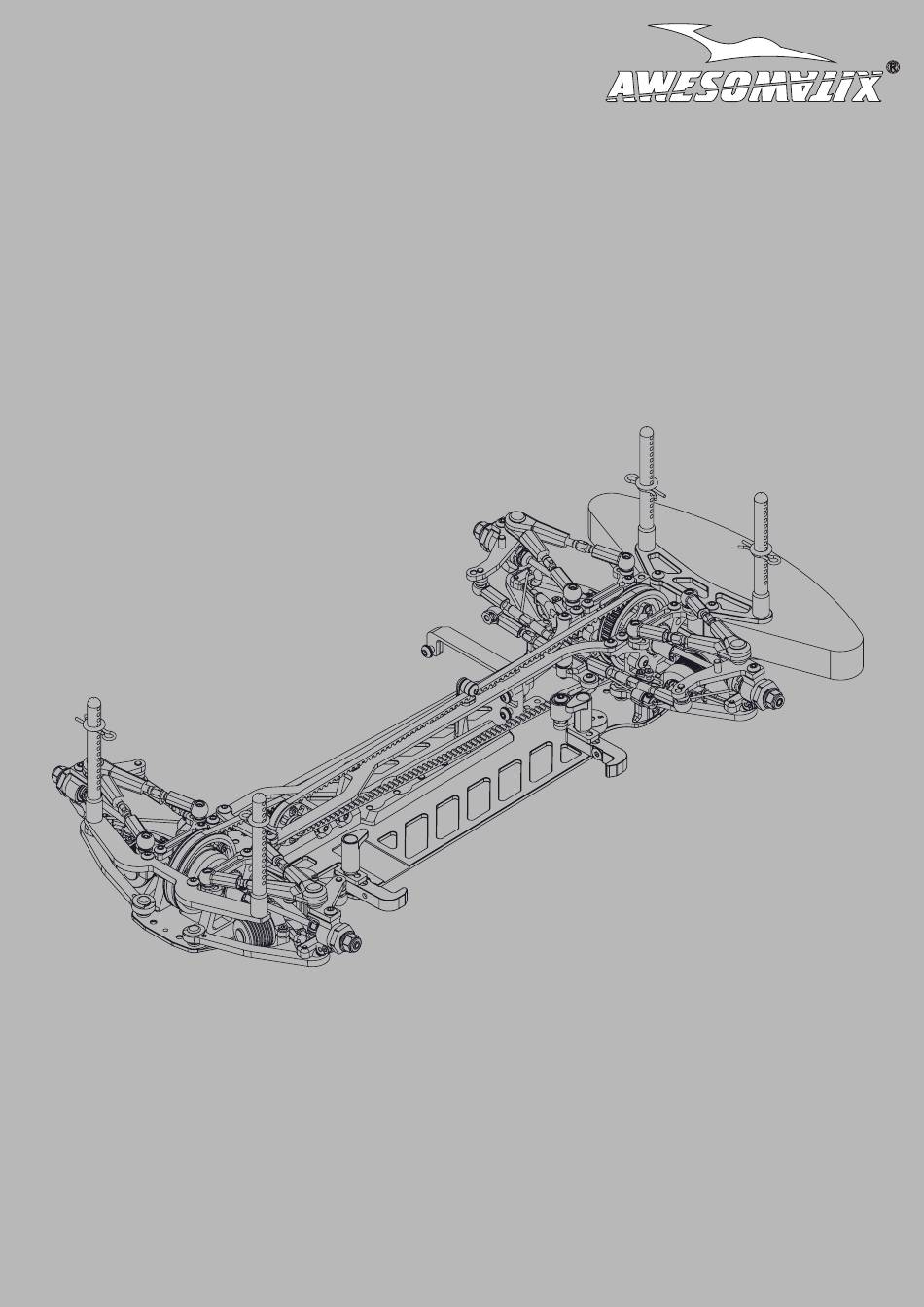

  • Page 1 A800X EVO МАСШТАБ 1 : 1 1/10-SCALE TOURING CAR INSTRUCTION MANUAL...
  • Page 2 Awesomatix Innovations accept no responsibility for any injuries caused by making or using this kit. Due to policy of continuous product development the exact specifications of the kit may vary. Awesomatix Innovations do reserve all rights to change any specifications without prior notice. All rights reserved. ASSEMBLY NOTES Before starting each build-stage check that you have the right quantity and size of items for the build-stage.
  • Page 3 STEP 1 ST03 ST03 SB3X5 SH1.75 SB3X5 AM14LS SH1.75 SH1.75 AM23-1 SH1.75 SH1.75 SB3X8 SH1.0 SH1.0 ST24 ST24 AM06WL AM06WL ST03 ST03 ST03 ST24 Note: The last turns of the lower ST03 Ball Studs and SB3X5 screws can be tight. Screw them with force. Note the difference between ST03 and ST24 Ball Studs! SB3X5...
  • Page 4 STEP 2 Apply Joint Grease to ST38 the rubbing surfaces. ST01 Thread Lock ST16 PIN01 ST17 -1 ST16 SPR07 ST113 PIN01 B415 ST38 PIN01 Attention! B415 Note the mutual orientation of ST16 at screwing of ST38. SPR07 The pins of both ST16 should be parallel to each other. The recommended wrench for screwing of ST38 is 3/8 US standard wrench ( ~ 9,53 mm).
  • Page 5 STEP 3 ST02 ST16 Apply Joint Grease to the rubbing surfaces. ST114 Thread Lock PIN01 SPR07 B415 Assembling/disassembling method 1. Unclamp ST02 Rear Axle a bit. 2. Take out/insert ST16 U-Joint Cross ST116 from/into unclamped ST02 Rear Axle. PIN01 B415 SPR07 PIN01 1.5x7.8 Pin ST02 Rear Axle...
  • Page 6 STEP 4 B106RS B106RS B106RS B106RS AT13 SC2X6 SC2X6 AT13 B106RS MR106RS Bearing AT13 Wheel Hex SC2X6 M2x6 Cap Head Screw x4 STEP 4 Lock Ring FINISHED Make 2 Rear. Make 2 Front. Note: Press P16 Lock Ring on the Axle to fix it. Note: Rear Universals may be a bit tight at this For disassembly hit to the end face of the Axle or stage.
  • Page 7 Rebuildable Damper Set Note: Every A800X kit includes four factory assembled and oil filled D2.2 Rebuildable Dampers. D2.2 damper allows for both dampening adjustment via thicker silicon oil, and consistent performance since the racer can rebuild the shock. The factory assembled and oil filled D2.2 Rebuildable Dampers come with 500 cst pure silicone oil inside. The build instructions for D2.2 Rebuildable Dampers is on this page.
  • Page 8 Note: DIN914 M3X3 screw should be installed only in case of PSS - Progressive Spring Setting function want to be used. More info about PSS can be found on the P09X product page of the http://shop.awesomatix.com webshop. AM17XR Damper Holder Right...
  • Page 9 STEP 7 Note: C01B-X-LA Carbon Lower Deck is used in A800X EVO kit C01B-XA-LA Alloy Lower Deck is used in A800XA EVO kit C01B-XAH-LA Alloy Hard Lower deck is used in A800XAH EVO kit AT21 x4 AT21 x4 FRONT SH1.0 x4 SH1.0 x4...
  • Page 10 STEP 9 STEP 10 WA02 WA02 ST31-1 WA02 WA02 P46R P46R ST31-1 WA03 WA03 OR05M OR05M SC2X4 x3 Thread Lock AT123B P138 B106RS OR05M OR06 OR13 ST23X OR13 Attention! PIN02 Don’t overtighten SC2X4 screws. Such overtigh t ening AT123B GD2B Case1 B106RS MR106RS Bearing AT124B deforms P138 Pulley.
  • Page 11 STEP 13 SF3X8 Thread Lock ST37X B106RS B106RS AT03BX ST37X SF3X8 P138S SB3X5 x3 B106RS MR106RS Bearing ST37X Spool Outdrive SF3X8 M3x8 Flat Head Screw AT03BX Spool Axle SB3X5 M3x5 Button Head Screw x3 P138S Spool38T Pulley x1 STEP 13 FINISHED Attention! Don’t overtighten SC3X5 screws.
  • Page 12 STEP 15 SB3X8 SB3X8 AM88L SB3X8 AM88L SB3X8 AM88R Attention! AM88R Don’t tighten SB3X8 FRONT screws on this stage. SB3X8 M3x6 Button Head Screw x4 AM88R Shock Holder R REAR AM88L Shock Holder L SB3X6 M3x6 Button Head Screw x1 AT120 20T Alloy Pulley AT62 Spur Holder...
  • Page 13 STEP 18 ST24 ST24 x2 SH0.5 x2 SB3X5 x4 AM79A AM74 x2 SB3X5 M3x5 Button Head Screw x4 AM79A Steering Rack SF3X10 M3x10 Flat Head Screw AM74 Steering Bellcrank STEP 19 SH1.0 6x3x0.5mm Spacer (Silver) x2 ST24 4,8x6mm Ball Stud Attention! Tighten SB3X8 screws of AM88L/R with 2mm ball...
  • Page 14 STEP 20 SB3X6 x4 B63SS x2 SB3X8 ST019 SB3X8 x2 ST55 AM05C SC2X4 SB3X6 x4 C27X1 C27X1 Top Deck Top Stiffener Belt Tensioner x1 AM05C Rear Holder SC2X4 M2x4 Cap Head Screw SB3X6 M3x6 Button Head Screw x8 ST55 ST55 SB3X8 M3x8 Button Head Screw x3 B63SS MR63ZZ bearing ST019 Top Deck Screw...
  • Page 15 STEP 23 STEP 23 FINISHED snap ST05L ST05L Shock Rod STEP 24 P12X P12X P12X P12X SS3X5 SS3X5 SF3X8 SF3X8 SS3X5 SS3X5 SF3X8 SF3X8 SF3X8 M3x8 Flat head Screw SS3X5 M3x5 Set Screw P12X Sway Bar Holder...
  • Page 16 STEP 25 Attention! The deflected tips of Sway Bar should be directed downwards. SWB10...SWB12 Note: SS3X3 SWB12 - two strips Note: SWB11 - one strip Don’t tighten SS3X3 Set Screws at this stage. SWB10 - no strip SS3X3 AT142 B63SS B63SS AT142 SWB10...SWB12...
  • Page 17 8,3 mm STEP 26 Servo rod P13-4 AT14 P13-4 8,0 mm Servo rod for AS-701L servo Make 4 snap P13-4 AT14 P13-4 17,6 mm Make 2 rear rods AT14 P13-4 P13-4 20,7 mm 20,7 mm Front left rod Front right rod AT25 AT25 P13-4...
  • Page 18 STEP 27 Note: Use the appropriate combination of SB3X10 SH spacers for sufficient gap between SB3X10 battery and P25 Clamps. AT12 BATTERY SH0.5...SH1.75 SH0.5...SH1.75 SH0.5...SH1.0 AM15-1 AM15-3 AM15-3 SF3X6 SF3X6 SF3X10 x2 SF3X10 x2 Battery Holders adjustment: SF3X10 M3x10 Flat Head Screw P23 Outer Battery Holder Choose the desirable battery position.
  • Page 19 Note: Recommended length of servo arm is 17,5-18,5mm. We highly recommend our P40F and P40K Servo Arms. We also recommend our AS-701L Brushless Low-Profile Car Servo. Awesomatix AS-701L servo has an integrated servo holder and can be screwed to the chassis. directly.

  • Page 20: Final Assembly

    OR06 OR06 STEP 29 SPR05 OR06 OR06 SPR05 SPR05 SB3X6 x2 SPR05 P14-2 P14-2 P14-2 SH1.75 P14-5 SH1.75 P14-2 P15L P14-1X SB3X12 SB3X12 AM05-2 SB3X8 x2 P14-1X Lower Bumper SB3X12 M3x12 Button Head Screw SF3X8 M3x8 Flat Head Screw P14-2 Body Post SB3X8 M3x8Button Head Screw x2 P14-5 UpperBumper SF3X8 x3...
  • Page 21 ST17 and P20 Universal Rings (optional) AT22M Rear Body Holder (optional) ST17 ST17 clipped P14-2 AT22M Use the extra clipped SB3X8 1. Insert a 2.5mm flat screwdriver tip P14-2 bars for additional into ST17 Universal Ring slot, bend of support of body’s tail. the lug and turn screwdriver through 90 deg.
  • Page 22 SUSPENSION SETTING TECHNIQUE Camber adjustment rule: Simultaneous both upper rods Caster adjustment rule: Simultaneous front upper rod 0.5mm shortening (1/2 turn of both turnbuckles) adds 1.0° 0.5mm elongation and rear upper rod 0.5mm shortening of camber angle at constant caster. adds 2.5°...
  • Page 23 SHOCK SETTING TECHNIQUE Attention! These Shocks allow to adjust the Damping and Spring rates without replacement of the shock’s fluid and spring. 1. Damping and Shock Spring rate setting Increase A-distance (slide Shock outward) to increase Damping and Spring rates simultaneously and concordantly to each other.
  • Page 24 GRAPHS OF THE SUSPENSION STIFFNESS DEPENDING ON THE POSITION OF THE DAMPER (SIZE A) AND SHOCK SCREW HOLDER (SIZE B) Suspension rate, gF/mm (vertical force / vertical displacement of the wheel) FOR SPR01 SPRINGS A, mm B, mm SRS/RHS Screws arrangement I SRS/RHS Screws arrangement II 15 0 FOR SPR01S SOFT SPRINGS...
  • Page 25 FINAL DRIVE RATIO CHART DRIVE TRAIN RATIO IS 1,9 64dp SPUR GEAR SIZE 48dp SPUR GEAR...
  • Page 26 SHIM UNDER STIFFNER: ST55 SPUR PINION RATIO STEER TRAVEL IN TOP DECK CUTS BODY BATTERY WING RECEIVER ST09 TOP DECK C27X-1 ST09 RADIO ESC SETTING AT63 AT63 AM98 AM98 BEST LAPTIME QUALIF./FINAL POSITION COMMENTS: Editable setup sheet can be downloaded from: http://site.petitrc.com/reglages/awesomatix/setupa800/A800XEvo_EditableSetupSheet.pdf...

  • Page 27: Optional Parts

    Diagonal Link Set DG1X Damper Guage Set P09X Shock Screw Holder DL-A Diagonal Link Set A P12X Sway Bar Holder INS-A800EVO A800X EVO Manual MMCX-2 Middle Motor Conversion Set P13-4 Ball End STS-A800X A800X Stickers Sheet C04M1-LA Long Arm Set...
  • Page 28 WWW.AWESOMATIX.COM UAB “AWESOMATIX” Email: support@awesomatix.com All rights reserved. Copyright UAB “Awesomatix” 2018.
