Awesomatix A800R Instruction Manual

1/10-scale touring car
Hide thumbs Also See for A800R:

Advertisement

Quick Links

Download this manual
A800R
1/10-SCALE TOURING CAR
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the A800R and is the answer not in the manual?

Questions and answers

Related Manuals for Awesomatix A800R

Summary of Contents for Awesomatix A800R

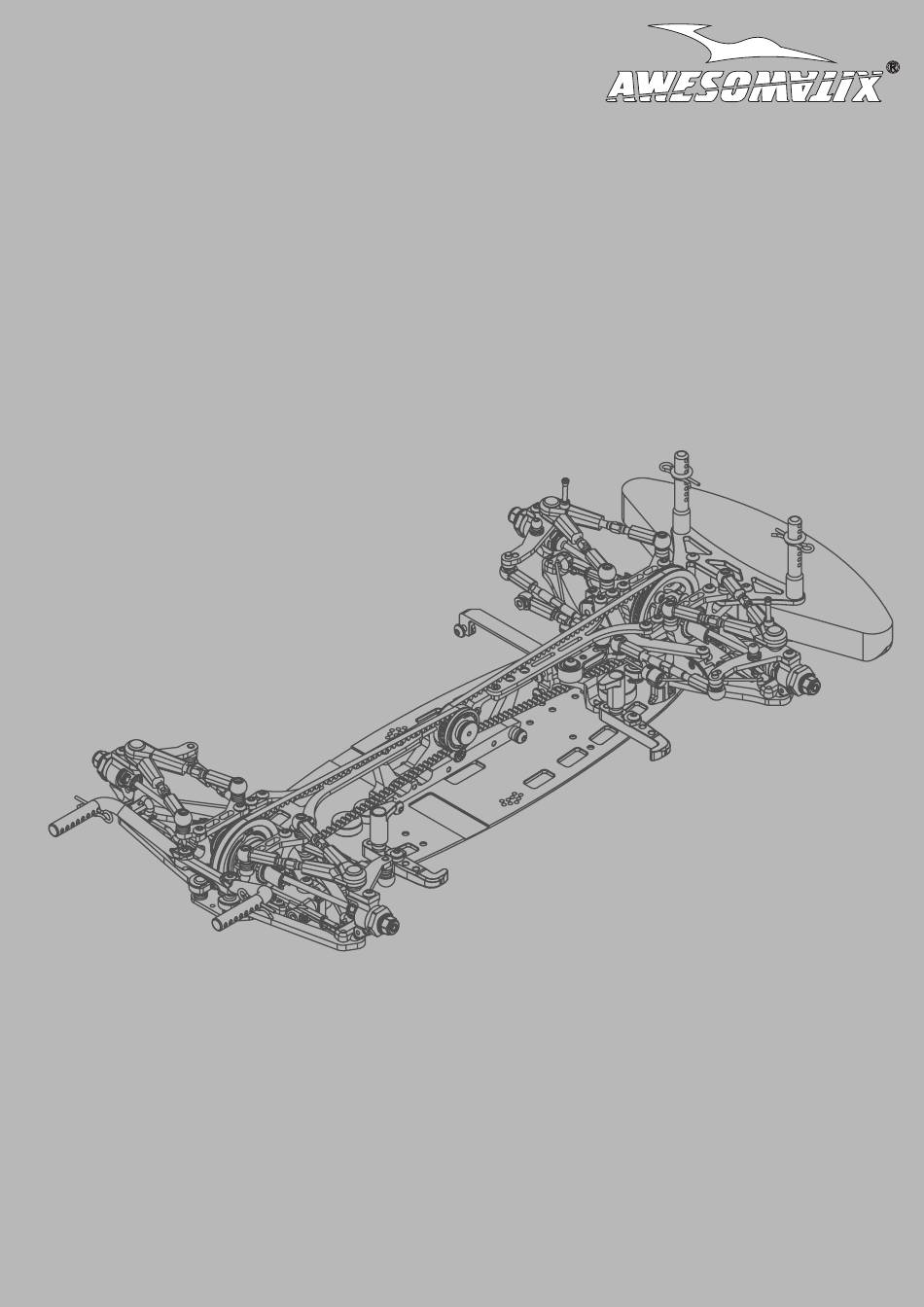

  • Page 1 A800R 1/10-SCALE TOURING CAR INSTRUCTION MANUAL...

  • Page 2: General Precautions

    A800R car you must not begin assembly. A800R car cannot be returned to UAB “Awesomatix” for a refund or exchange if it has been fully or partially Your assembled. This kit is a radio controlled model racing product and could cause harm and personal injury.
  • Page 3 Note these items at assembling of the car. Note the shoulder ST112 screws - used for fastening only B106RS bulkheads and dampers to the lower deck! ball bearing 5,9 mm 5,8 mm 5,2 mm 10 mm ST122 ST019 3,5 mm 4,25 mm ball bearing 8 mm...
  • Page 4 STEP 1 - Assembling of the D3 Dampers Note: As a starting point we recommend 400 cst silicone oil for the front dampers and 500 cst silicone oil for the rear dampers. Insert OR2010V o-ring into the upper cavity of AM242R/L case. Lubricate ST143 with small amount of the silicon oil.
  • Page 5 Screw P67 stand to three P14-2 posts (cutted till ~43mm length) or to the air remover’s original stand instead one of plates. SB3X6 x2 SB3X6 x3 TIP / Recommendation to use MAX-02-003 - MXLR Awesomatix A800R ShockVac P14-2 x3 MAX-01-003 - MXLR O-Ring grease (for P63 & OR52V)
  • Page 6 Install the dampers on the air remover stand and keep them vertically. Add the desirable silicon oil into the damper’s inner space. The oil level should reach the top face of AT243 on this stage. Don’t forget to fill by oil the cavity over P63 piston or over P263 membrane. Check the narrow slot behind AT243 and add the oil also there.
  • Page 7 P46R AT119 Use DG1X gauge ST69-0 Optional ST69-15 and ST69-25 screws for 15% and 25% spring’s action progression are available (not included). Install SPR01 springs (for A800R kits) or SPR01S springs (for A800RA kits). SPR01 SPR01S (note “S” laser engraving)
  • Page 8 STEP 2 AT21ST-A x4 Note: C01B-RC Carbon Lower Deck is used in A800R kit. SH1.0 x4 C01B-RA Alloy Lower Deck is used in A800RA kit. FRONT AT21ST-A x4 SF3X6 x4 SH0.5 x4 SH1.0 x4 SF3X8 x4 Combinations of SH0.5, SH1.0 and SH1.75 spacers under AT21ST-A balls are used for adjusting of the car’s roll center.
  • Page 9 STEP 5 P12X P12X P12X P12X SF3X8 SF3X8 SF3X8 SF3X8 STEP 6 SS3X4 x2 SS3X5 x2 SF3X5 SS3X4 x2 SF3X5 screws can be added or removed from the motor mount to alter overall flex, as well as change the flex distribution along the chassis. SS3X5 x2 REAR FRONT...
  • Page 10 STEP 8 Optional OR14V rubber o-rings can be used instead of P07 clips. snap OR14V snap Snap P07 clips and tighten SB3X6 screws under AT21ST-A balls after. STEP 9 Crimp P03 cups with flat lips pliers if the lower arms movement is tight. ST205 Prepare 2 sets with this layout ST205...
  • Page 11 STEP 11 ST112 x4 Note: Use ST112 centering screws for AM278 bulkheads mounting. ST112 x4 ST24 x2 AM278 x2 Install two ST24 ball studs on the rear AM278 bulkheads. AM278 x2 STEP 12 Attention! Note orientation of this chamfer on DT22. DT22 AT120-5 B84RS...
  • Page 12 AT124B deforms P138 Pulley. MAX-01-003 - MXLR O-Ring grease (for OR05V) Use the Thread Lock B106RS MAX-02-002 - MXLR Awesomatix TC Multi Tool for these screws. STEP 15 STEP 16 TIP / Recommendation to use MAX-01-001 - MXLR Ball Bearing oil Fill with desirable silicone oil (not included).
  • Page 13 STEP 17 SF3X8 Thread Lock ST37X B106RS B106RS AT03BX ST37X SF3X8 P138S-1 SB3X5 x3 TIP / Recommendation to use MAX-01-001 - MXLR Ball Bearing oil Attention! Don’t overtighten SC3X5 screws. Note the correct orientation Such overtigh t ening deforms P138 S Pulley. of AT03B X Axle regarding Use the Thread Lock for these screws.
  • Page 14 STEP 19 SB3X5 x4 AM19-R x2 Note: This recess on AM19-R should be oriented downward. SB3X5 x4 BEL351B AM19-R x2 BEL351B Note this correct layout of of belts, diff and spool! front belt rear belt Initial position of rear P110 Initial position of front P110 Note this Note this...
  • Page 15 STEP 20 ST59 SH1.0 B73SS B73SS SH0.5 ST59 STEP 21 Note: SWB-R-1.3 - three strips Note: Don’t tighten SS3X3 set screws on this stage. SWB-R-1.2 - two strips SWB-R-1.1 - one strip SS3X3 SWB-R-1.0 - no strips B63SS SS3X3 AT142 AT142 SWB-R-1.2 B63SS...
  • Page 16 SB3X5 x2 system is possible to install with optional AM24-8 servo holder and BSSX set AT52A posts. AM24-8 AT52A x2 SH1.75 x4 SH1.0 x2 SF3X10 x2 Awesomatix A700L/A701L servo is possible to install with optional AM152 stand. AM152 SF3X5 x2...
  • Page 17 ST019 both top decks recess for increasing of the torsional flex. Note: C127 top decks are used in A800R kit. REAR C127S top decks are used in A800RA kit. STEP 28 FRONT ST24 x4 ST24 x4 SH1.0 x4...
  • Page 18 STEP 29 Front left steering knuckle Rear right steering knuckle ST03 ST03 AT21ST-A SB3X5 SH1.0 SH1.0 SH1.0 AM23-R SB3X5 SH1.0 SH1.0 AM14LS SB3X6 SH1.75 ST24 AM06WL SH0.5 AM06WL ST24 ST03 ST03 ST03 ST24 Note the difference between ST03 and ST24 Ball Studs! Note: Other combinations of SH0.5, SH1.0 and SH1.75 spacers can be installed under ST03 and ST24 ball studs to set-up the car for different track condition.
  • Page 19 Tighten ST38US nuts by fingers. ST16 PIN01 ST17-1US ST16 PIN01 ST38US ST113 TIP / Recommendation to use MAX-01-002 - MXLR Driveshaft & Gears oil MAX-02-002 - MXLR Awesomatix TC Multi Tool Prepare two front drives. Front drives for US-spec kits.
  • Page 20 STEP 31 ST02 ST16 Apply Joint Grease to the rubbing surfaces. ST114 Thread Lock PIN01 SPR07 B415 ST116 Assembling/disassembling method PIN01 1. Unclamp ST02 rear axle a bit. B415 2. Take out/insert ST16 u-joint cross SPR07 from/into unclamped ST02 rear axle. Tip: Use a 2.5mm flat screwdriver to unclamp ST02 rear axle.
  • Page 21 STEP 32 B106RS B106RS SH0.1 AT13 SC2X6 Note: We recommend to install SC2X6 screws only at high traction conditions. B106RS B106RS SH0.1 AT13 SC2X6 Note: Rear universal joints may be a bit tight at this stage. But don’t worry as the rear universal joint take its true position after the wheels are mounted.
  • Page 22 STEP 33 SC2X15 snap SC2X15 AT14 P13-4 P01X P13-4 Servo rod Make two for front Make two for rear P13-4 AT25 P13-4 Make two rear rods AT25-44 AT25-44 P13-4 P13-4 P13-4 P13-4 Front right rod Front left rod P13-4 P13-4 Front right Front left upper arm...
  • Page 23 STEP 34 Unscrew SB25X8 screws on ~3 turns and shift P04 up to create ~1.5mm gap between P04 and the lower arm. Insert P03 ball into the spherical cavity of the lower arm and tighten SB25X8 SB25X8 screws. Insert the driveshaft inner joint into the outdrive of diff/spool. Note: Don’t overtighten SB25X8 screws to avoid ST03 ball binding!!! Achieve a free action of the ball joint with a minimal backlash.
  • Page 24 STEP 36 SB3X12 SB3X12 SH0.5...SH1.0 AT12 P23-R SH0.5...SH1.75 P23-R SF3X8 x2 Note: Use an appropriate combination of SH spacers under P25 clamps to allow ~0,3 mm vertical free play of the battery. SF3X8 x2 STEP 37 SH1.75 SH1.75 SH1.0 SH0.5 SB3X8 SH1.75 SH1.75...
  • Page 25 STEP 39 OR06 OR06 SPR05 SPR05 SB3X6 x2 AT12 SB3X8 x2 P14-2 P14-2 P14-5-R P15L P14-1-R SF3X8 SB3X10 SB3X10 STEP 40 SB3X8 x2 SH0.5...SH1.75 SF3X6 P56 antenna holder can be installed if needed. Note: SH0.5...SH1.75 spacers under P64 holder can be installed for adjustment of the body shell rear end vertical position.
  • Page 26 STEP 42 19T - 55T 64dp, 14T - 41T 48dp Note: This orientation of the hex driver should be used for pinion gears can be installed tightening of the pinion gear set screw. SS3X3 Pinion Gear (not included) Motor (not included) SH0.5 x2 SB3X8 x2 Install: speed controller (not included),...
  • Page 27 Adding 4°caster shortens wheelbase by 1mm. (H1-H2)*1.5 for front (H1-H2)*1.7 for rear TIP / Recommendation to use MAX-02-001 - MXLR Awesomatix Caster Tool Body shell front end downtravel adjustment: Rear suspension toe-in adjustment: Use SC2X15 screw for adjustment the lowest Rear rod 0.5mm elongation reduces the toe-in on 1.0°...
  • Page 28 D3 dampers and suspension springs setting technique Attention! A800R shocks allow to adjust the damping and spring rates without replacement of the shock’s fluid and spring. 1. Damping and Shock Spring rate setting Increase B distance (slide AT119 holder outward) to increase the spring rate.Reduce B distance (slide AT119 holder inward)
  • Page 29 Optional parts and sets C07-R carbon bumper plate C07-R B73SS SB3X5 Front belt anti-skipping ball bearing BW27 27 g stiffener BW27 SB25X8 SB3X8 SB25X8 SB3X8 BW10 SB25X8 x2 SF3X5 BW7 7 g , BW8 8 g weights BW10 10 g weight C26 top stiffener AT139 fan holder SH1.75 x3...
  • Page 30 Optional parts and sets BW52R and AT144 BW22R and AT144 holes for SB3X8 SB3X6 93mm batteries SB3X6 SB3X8 AT144 AT144 SH0.5...SH1.75 AT144 AT144 SH0.5 ... BW52R SH1.75 SH0.5...SH1.75 SH0.5...SH1.75 BW52R BW52R BW22R BW22R SF3X6 x2 SF3X6 x2 SF3X6 x2 SF3X6 x2 AT143 anti-roll bar stiffener AT143 stiffener increases stiffness of the anti-roll bar up to one step.
  • Page 31 FINAL DRIVE RATIO CHART DRIVE TRAIN RATIO IS 1,9 64dp SPUR GEAR SIZE 48dp SPUR GEAR...

  • Page 32: Setup Sheet

    SETUP SHEET A800R ° DATE NAME TEMP. C AIR / TRACK TRACK SURFACE CARPET COUNTRY ASPHALT TRACK LAYOUT TECHNICAL MIXED FAST RACE TRACTION MEDIUM HIGH TRACK FRONT REAR AT13W AT13W AM19-R AM19-R SC2X6 SC2X6 AM06WL AM06WL GF/MM GF/MM CAMBER ANGLE / °...
  • Page 33 SETUP SHEET A800R ° DATE NAME TEMP. C AIR / TRACK BASIC CARPET SETUP TRACK SURFACE CARPET COUNTRY ASPHALT TRACK LAYOUT TECHNICAL MIXED FAST RACE TRACTION MEDIUM HIGH TRACK FRONT REAR AT13W AT13W AM19-R AM19-R SC2X6 SC2X6 2,25 AM06WL AM06WL...

  • Page 34: Standard Spare Parts

    P14-1-R Bumper SF3X8 M3x8 Flat Head Screw P14-5-R Top Bumper P14-2 Body Post SF3X10 M3x10 Flat Head Screw P15L Lightweight Foam Bumper BEL351B Belt 351mm Bando DG1X Damper Guage Set Lock Ring STS-A800R A800R Stickers Sheet P23-R Outer Battery Holder...
  • Page 35 WWW.AWESOMATIX.COM UAB “AWESOMATIX” Email: support@awesomatix.com All rights reserved. Copyright UAB “Awesomatix” 2023.
