External sms control for remote monitoring and operation of lubrication systems
Table of Contents

Advertisement

Quick Links

Assembly Instructions
EXTERNAL SMS CONTROL FOR REMOTE MONITORING AND
OPERATION OF LUBRICATION SYSTEMS
Date:
20/9/2022
Document no.:
E-SMS-C-4G
Version: 1D
Read this manual before
installing or commissioning
the product and keep it at
hand for later reference!
E-SMS-C-4G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-SMS-C-4G and is the answer not in the manual?

Questions and answers

Summary of Contents for SKF E-SMS-C-4G

  • Page 1 Assembly Instructions E-SMS-C-4G EXTERNAL SMS CONTROL FOR REMOTE MONITORING AND OPERATION OF LUBRICATION SYSTEMS Date: 20/9/2022 Document no.: E-SMS-C-4G Version: 1D Read this manual before installing or commissioning the product and keep it at hand for later reference!
  • Page 2 Product Specialist SKF Lubrication Management Electronic Manufacturer: Oy SKF Ab Finland Teollisuustie 6 40951 Muurame FINLAND UK Declaration of Conformity pursuant to the Radio Equipment Regulations 2017 No. 1206 The manufacturer hereby declares under its sole responsibility conformity of the product described below with all relevant harmonization legislation of the United Kingdom at the time of placing on the market.
  • Page 3: Masthead

    The instructions contain no statements regarding the warranty or liability for defects. That information can be found in our General Terms of Payment and Delivery. Training We conduct detailed training in order to enable maximum safety and efficiency. We recommend taking advantage of this training. For further information, contact your authorized SKF dealer or the manufacturer.
  • Page 4: Table Of Contents

    7.3.3 Requesting operation mode and performing functions....................20 7.3.4 Alarms ..................................21 7.3.5 Alarm messages to additional GSM-numbers ......................21 8. E-SMS-C-4G / Modem - User interface ............................. 21 9. Electrical connections ................................22 10. Maintenance and troubleshooting ............................23 11.
  • Page 5: Safety Alerts, Visual Presentation, And Layout

    Safety alerts, visual presentation, and layout While reading these instructions, you will encounter various symbols, illustrations, and text layouts intended to help you navigate and understand the instructions. Their meaning is explained below. Safety alerts: Activities that present specific hazards (to life and limb or possible damage to property) are indicated by safety alerts. Always be sure to follow the instructions given in the safety alerts.
  • Page 6: Safety Instructions

    • Unauthorized modifications and changes can have an unpredictable effect on safety and operation. Unauthorized modifications and changes are therefore prohibited. Only original SKF spare parts and SKF accessories may be used. • Any unclear points regarding proper condition or correct assembly/operation must be clarified. Operation is prohibited until issues have been clarified.
  • Page 7: Persons Authorized To Use The Product

    Persons authorized to use the product Operator A person who is qualified by training, knowledge and experience to carry out the functions and activities related to normal operation. This includes avoiding possible hazards that may arise during operation. Specialist in mechanics Person with appropriate professional education, knowledge and experience to detect and avoid the hazards that may arise during transport, installation, start-up, operation, maintenance, repair and disassembly.
  • Page 8: Notes On The Type Plate

    Notes on the type plate The type plate provides important data such as the type designation, order number, and sometimes regulatory characteristics. To avoid loss of this data in case the type plate becomes illegible, it should be entered in the manual. Fig.
  • Page 9: Assembly, Maintenance, Fault, Repair

    Assembly, maintenance, fault, repair Prior to the start of this work, all relevant persons must be notified of it. At a minimum, the following safety measures must be taken before any work is done: • Unauthorized persons must be kept away •...
  • Page 10: Residual Risks

    Residual risks Table 1 Residual risk Possible in life cycle Prevention/ remedy Electrical shock caused by a faulty B C D E Check the supply cable before connecting power or incorrectly connected power supply to the device. cable Connect all wires correctly. Torn/broken wires, when B C D E Use flexible cable lines with cable clamps, when...
  • Page 11: General Description / Intended Use Of The System

    Remote alarm messages are extremely useful with difficult to access locations, either due safety or great distance. Lubrication system inspections are easy to carry out with remote creating time saving for maintenance personnel. SKF’s E-SMS-C-4G can be used with single line, dual-line, progressive and spray systems while using compatible IF or ST control centers firmware versions.
  • Page 12: Delivery, Returns, Storage

    4. Delivery, returns, storage Delivery After receipt of the shipment, it must be inspected for any shipping damage and for completeness according to the shipping documents. Immediately inform the transport carrier of any shipping damage. The packaging material must be preserved until any discrepancies are resolved.
  • Page 13: Structure

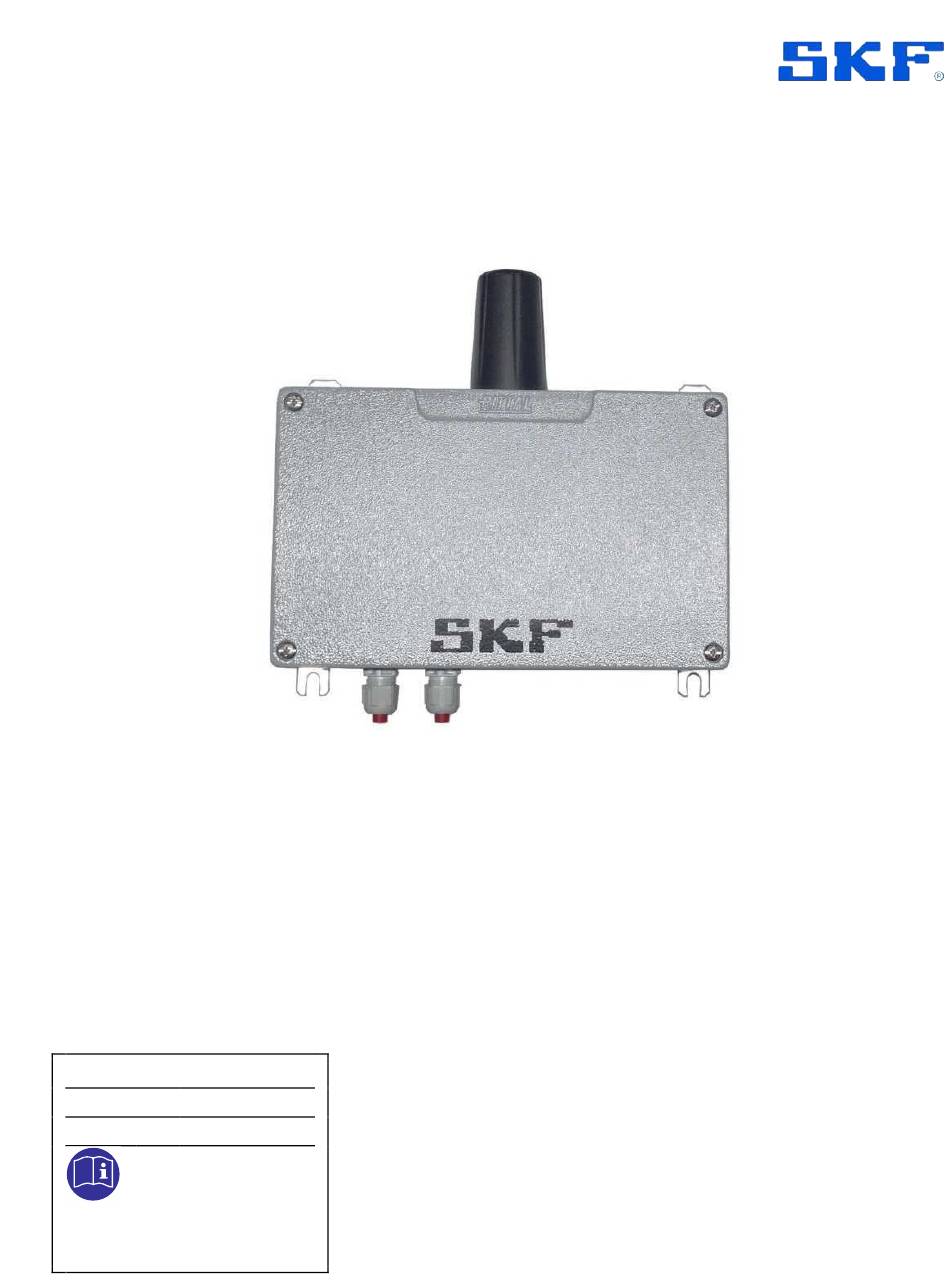

    5. Structure Enclosure Figure 1 E-SMS-C-4G remote SMS modem casing. Components / Spare parts Part Identifier Code Type Modem PLS62T-W LAN / 12500307 Thales PLS62T-W LAN / RS232 RS232 Antenna 12500308 Panorama Antennas B4BE-6-60-05SP Connection terminals Cable inlets Figure 2 Modem’s components & spareparts...
  • Page 14: Installation

    Power must be turned off before work involving handling of conductive parts or opening any part of the system or product. 6.1.1 E-SMS-C-4G connection point dimensions Figure 3 Fixing points of the E-SMS-C-4G modem (362795).
  • Page 15: Operation

    7. Operation E-SMS-C-4G Lubrication system options E-SMS-C-4G can be used with single line, dual-line, progressive and spray systems while using compatible IF or ST control centers. Table 2. Compatible IF and ST control centers & firmware versions. Control center Firmware version Multilube IF-103 1.47...
  • Page 16: Multilube If-103 And E-Sms-C-4G

    IF-103 can be used to configure the Multilube pump by connecting the interface to the ST-103 control board but it can not be used simultaneously with the E-SMS-C-4G modem because one of these interfaces is connected to the port at once.
  • Page 17: Requesting Operation Mode And Performing Functions

    The values have to be marked with brackets ( ). All information in brackets can be changed. 7.2.3 Requesting operation mode and performing functions Operation mode is requested by sending an SMS-message to the GSM-modem of the pumping unit: The GSM-modem of the pumping unit replies with SMS-message, e.g. in pressure alarm mode: In DuoFlex systems In ProFlex systems Multilube...
  • Page 18: Alarms

    The alarm is acknowledged by sending the received SMS-message back to the modem of the pumping unit. Maxilube IF-105 and E-SMS-C-4G E-SMS-C-4G modem is secondary remote user interface besides the IF-105 panel with the Maxilube pumping unit. Simultaneous connection of the E-SMS-C-4G and IF-105 panel is possible with Maxilube pumping unit. Modem enables remote controlling possibility by SMS-messages.
  • Page 19: Set Values: Requesting, Changing And Confirming

    1 or 2 is the number of the requested channel The GSM-modem of the pumping center replies with SMS-message: SKF Maxilube Channel (1) SG2 (1) is the channel number and SG2 is the lubrication system type of the channel in question (Channel name) Lub.
  • Page 20: Requesting Operation Mode And Performing Functions

    7.3.3 Requesting operation mode and performing functions Operation mode is requested by sending an SMS-message to the GSM-modem of the pumping center: T1? or T2? 1 or 2 is the number of the requested channel The GSM-modem of the pumping center replies with an SMS-message, e.g. when channel 1 is in pressure alarm mode: Maxilube Channel (1) SG2 (Channel name)
  • Page 21: Alarms

    Set the number at start-up with commands T1? or A1? before using the K0-commands. 8. E-SMS-C-4G / Modem - User interface Command user interface of SMS message can vary. Figure 2. Examples of request status and values & set values from Maxilube & ST-1240-IF pumping channels. Maxilube &...
  • Page 22: Electrical Connections

    9. Electrical connections Figure 3. Diagram of E-SMS-C-4G modem alternative connection options for pumping centers.
  • Page 23: Maintenance And Troubleshooting

    First check your pumping center or control center firmware is compatible with E-SMS-C-4G modem. Compatible Table 2. Compatible IF and ST control centers & firmware versions. E-SMS-C-4G modem have two LEDs (see Figure 3.) which informs to the user the operating status of the modem. Figure 4. E-SMS-C-4G modem status LEDs.
  • Page 24: Removing From Service

    Observe any local laws and regulations concerning disposal and recycling. You can also return the product to Oy SKF Ab for disposal. Oy SKF Ab reserves the right to recover any costs arising from the disposal.
  • Page 25: Appendix

    12. Appendix China RoHS Table Table 14...
  • Page 26: China Rohs Table

    China RoHS Table...
