AFi TWIN XL ST-TD-ISL Assembly Instructions

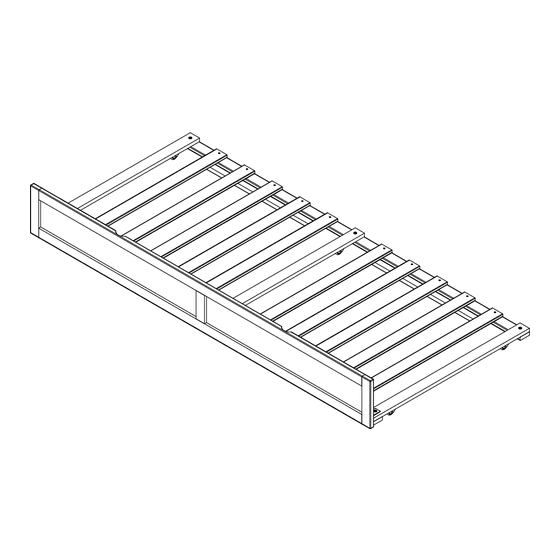

Trundle bed

Download this manual

Adult assembly

please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726

CODE

ST-TD-ISL

NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

JCB M6 X 1 5/8"( 40mm ) - 9 pcs

JCB M6 X 5/8"( 15mm ) - 6 pcs

Fix L bracket to front panel

TRUNDLE BED

ASSEMBLY INSTRUCTIONS

Before assembling your Trundle bed, please read through these

instructions carefully. Familiarize yourself with the different parts.

ATTENTION! If you receive a damaged or defective item,

ITEM

G-35801X

HARDWARE

Spare - 1 pc

TWIN XL

PO :

L Bracket - 3 pcs

READY

Phillips screwdriver

Customer supplied

Wood screw - 20 pcs

Spare - 2 pcs

Allen wrench - 1 pc

Spare - 1 pc

Page 1 of 4

Need help?

Do you have a question about the TWIN XL ST-TD-ISL and is the answer not in the manual?

Page 1 TRUNDLE BED TWIN XL ASSEMBLY INSTRUCTIONS READY Before assembling your Trundle bed, please read through these instructions carefully. Familiarize yourself with the different parts. Adult assembly ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Phillips screwdriver Customer supplied CODE...
Page 2 TWIN XL PARTS LIST HARDWARE 1 BOX LEFT, RIGHT, MID RAIL 3 PCS SLAT KIT WITH WEBBING 2 SETS FRONT PANEL 1 PC FRONT RAIL 1 PC BACK RAIL 1 PC Step 1 Attach the left, right and mid rails (05) to the front rail (03) using L bracket (C) and JCB M6 X 1 5/8”(A).
Page 3 TWIN XL Attach the front panel (02) to the front rail (03) as shown, using JCB M6 X 5/8” (B). Step 2 Tighten with the Allen wrench (E). Adult assembly JCB M6 X 5/8” Allen wrench Step 3 Lay the slat kits (06) webbing side down onto the rail assembly as shown. Attach using wood screw (D) and tighten with the Phillips head screw driver.
Page 4 TWIN XL Step 4 Lastly, Insert Trundle bed to the bed as shown below. Adult assembly Congratulations! Your Trundle bed is now ready for use. We recommend that you periodically check that all screws are tight and all parts are secure to ensure lasting safety. Page 4 of 4...

G-35801x
