please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Adult assembly
CODE
DB-AM-ACA
G-11322X
DB-FP-ACA
G-11422X
PO :
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
A
Wood dowel - 4 pcs
Spare - 1 pc
B
JCB M6 X 2 1/2"( 65mm ) - 4 pcs
C
JCB M8 X 5/8"( 15mm ) - 8 pcs

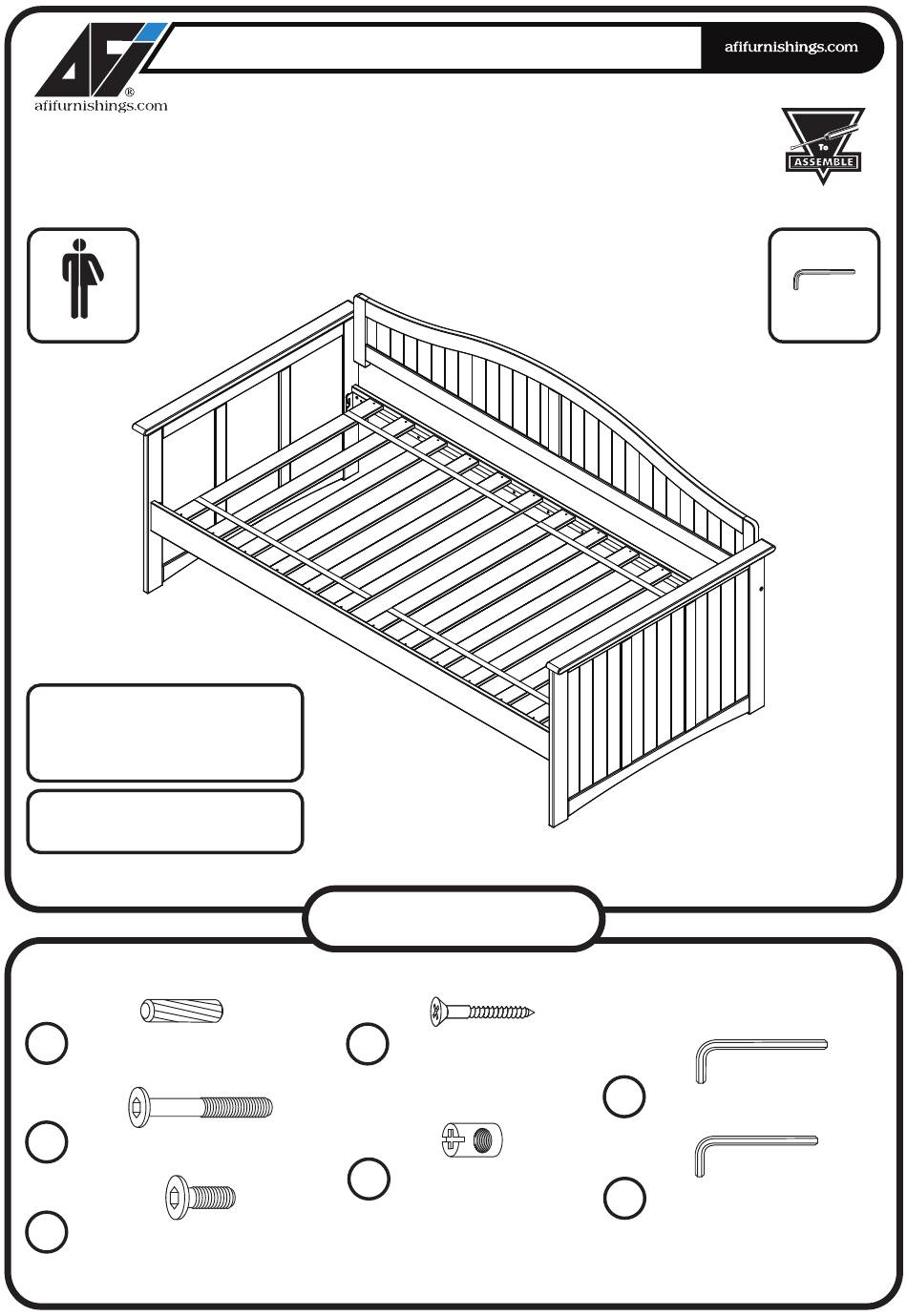

ASSEMBLY INSTRUCTIONS
Before assembling your Daybed, please read through these
instructions carefully. Familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
ITEM
HARDWARE
D
Spare - 1 pc
E
DAYBED
Wood Screw - 24 pcs
Spare - 1 pc
Barrel Nut - 4 pcs
Spare - 1 pc
F
Allen wrench M6 - 1 pc
G
Allen wrench M4 - 1 pc
READY
Allen wrench
Page 1 of 3
Advertisement
Related Manuals for AFi G-11322X
Summary of Contents for AFi G-11322X
- Page 1 ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Allen wrench Adult assembly CODE ITEM DB-AM-ACA G-11322X DB-FP-ACA G-11422X PO : HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY. Wood dowel - 4 pcs...
-
Page 2: Parts List
PARTS LIST HARDWARE 1 BOX G-11422X LEFT DAYBED ARM 1 PC G-11322X 1 BOX RIGHT DAYBED ARM 1 PC BACK PANEL 1 PC FRONT / BACK RAIL 2 PCS G-11422X 1 BOX SLAT KIT 2 SET Step 1 Attach the back panel (04) to the left and right daybed arm (02)(03), using wood dowels (A), JCB M6 X 2 1/2”(B) and barrel nut (E). - Page 3 Step 2 Attach the front and back rail (05) to the Daybed arms as shown, using JCB M8 X 5/8” (C). Tighten with the Allen wrench (F). Adult assembly JCB M8 X 5/8” Allen wrench Step 3 Lay the slat kit (06) onto the rail assembly as shown, using wood screw (D).Tighten with the Phillips head screw driver (Customer supplied).
- Page 4 BED DRAWER SET OF 2 TWIN/FULL ASSEMBLY INSTRUCTIONS READY Before assembling your bed drawer, please read through these instructions carefully, familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Allen wrench Adult assembly NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
-
Page 5: Back View
TWIN/FULL Step 2 Guide the drawer bottoms (05) and drawer middle (06) in carefully so that they align inside grooves. Be sure it fits fully into the face and side groove before attaching the drawer back (04). Attach drawer center support (07) to bottom of drawer face using wood screw 1 1/4" (B). Tighten with Phillips head screw driver.
