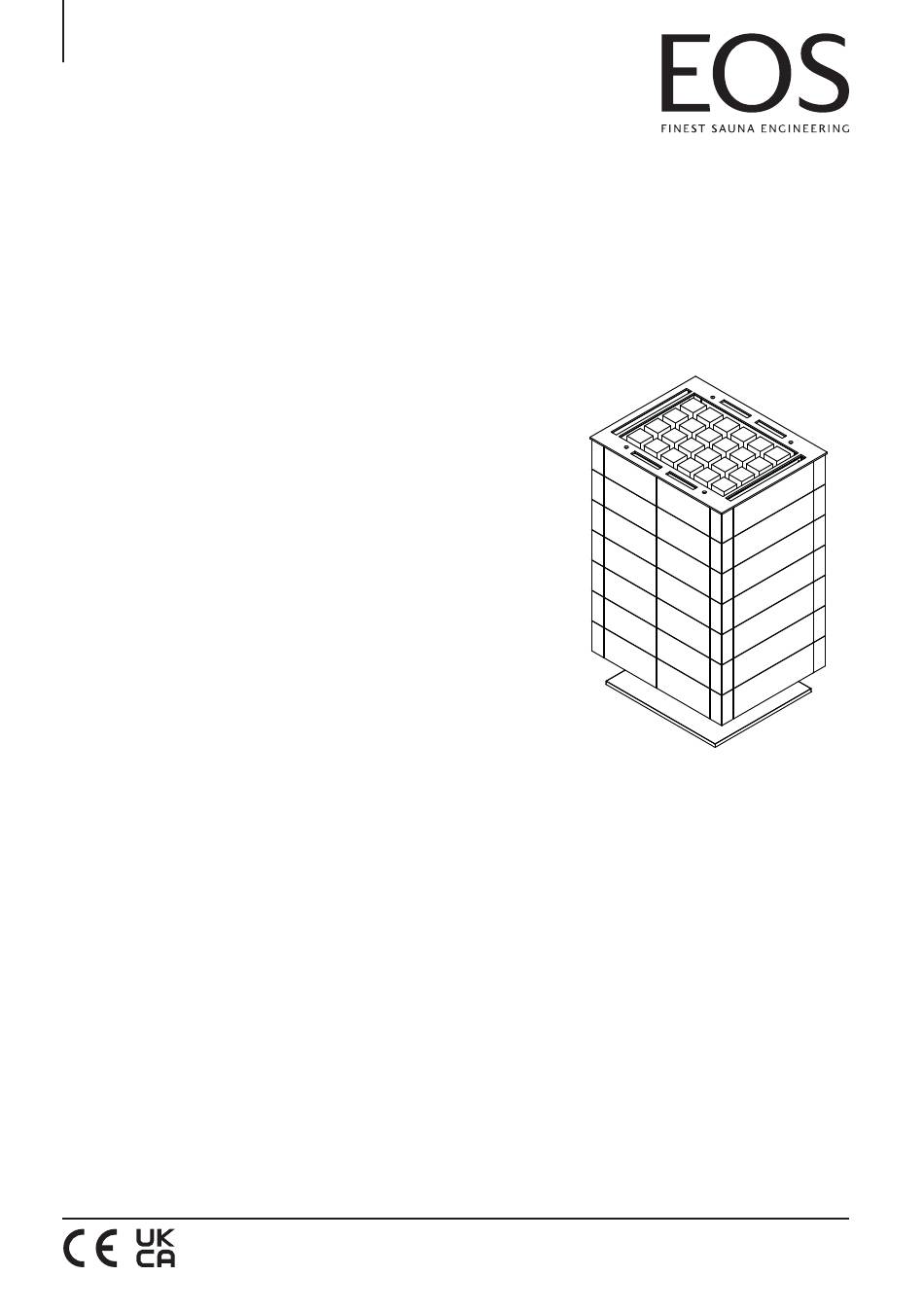

- Page 1 EOS Credo Sauna heater Installation and operating instruction Made in Germany IPx4 Print no. 2902 5258 en / 12.25 Subject to technical changes...
-
Page 3: Table Of Contents
Contents General safety instructions........................4-9 Identification .............................. 10 ƒ Manufacturer, Copyright, Identification and Product Information........10 ƒ Intended use ............................11 ƒ Foreseeable misuse ........................... 11 ƒ General instructions .......................... 12 Scope of delivery ............................13 Technical data ............................13 Electrical Installation .......................... -
Page 4: General Safety Instructions
General safety instructions 1. General safety instructions Safety levels Safety instructions and important operating instructions are classified. Please familiarise yourself with the following terms and symbols: WARNING Warning Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Caution Indicates a hazardous situation which, if not avoided, could result in minor or moderate... -
Page 5: Mounting And Electrical Installation
General safety instructions 1.1 Mounting and electrical installation These installation instructions are intended for qualified personnel familiar with the laws and regulations applicable to electrical installations at the installation site. Ob- serve the following general safety instructions during mounting, configuration and commissioning of the product. - Page 6 General safety instructions Risk of burns from hot glass ► Glass surfaces in the cabin become hot while the sauna is in operation. When installing the cabin, ensure that the touchable glass surfaces on the outside of ƒ the cabin may reach a maximum temperature of 76°C. Appropriate protection may need to be installed if required.
-
Page 7: Operator Instruction
General safety instructions Use one of the control units listed below to check and control the sauna heater. This ƒ control unit is fixed to a suitable location on the cabin‘s external wall, and the corre- sponding sensor housings according to the installation instructions that accompany the control units inside the sauna cabin. - Page 8 General safety instructions Fire hazard ► Objects placed on the heater or protective guards can easily be ignited and cause fires. Attach the heater guard rail. ƒ Do not place objects on the heater. ƒ Fill the stone grate as directed. ƒ...
-
Page 9: Standards And Regulations
For an overview of the standards that were observed during design and construction of the sauna heaters, please refer to the individual product’s technical data sheet that can be downloaded from www.eos-sauna.com. Local regulations also apply to the installation and operation of heating, sauna, and steam room... -
Page 10: Identification
2.3 Identification of the device EOS Credo is an electrically heated sauna heater for Finnish mode available in a variety of output capacities. The heater must be operated with one of the following control units, which are specified in Techni- cal Data of this manual. -
Page 11: X83; Intended Use
This heater is intended solely for the purpose of heating sauna cabins, together with a suitable control unit. EOS Credo is a floor-standing sauna heater. It is suitable for cabins for commercial use. The heater is not suitable for outdoor use! -
Page 12: X83; General Instructions
Identification 2.7 General instructions Please note that an optimal sauna climate can be achieved only if the cabin with its air ƒ inlets and outlets, the sauna heater, and the control unit suit each other. Observe the specifications and information provided by your sauna retailer. ƒ... -
Page 13: Scope Of Delivery
Heater dimensions, H x W x D 81 x 50 x 40 cm Stone volume approx. 40 kg EOS Econ-series, Compact-series, EmoTec-series, For use with the sauna control units EmoStyle-series, EmoTouch 3 Switching load extension (power extension box) PEB 10 Leakage current max. -
Page 14: Electrical Installation
Electrical installation 5. Electrical installation This chapter describes how EOS Credo is connected to the control unit or power extension units. 5.1 General instructions for electrical installation Ensure that electrical installation is performed in compliance with the standards and legal norms valid in your country. -
Page 15: Connection Overview
Electrical installation 5.3 Connection diagram 12 + 15 kW Connection overview Leistungsschaltgerät Saunasteuergerät Saunaofen Power extension box Control unit Sauna heater LSG / PEB Extension de puissance Boîtier de commande Poêle de sauna Netz / Mains / Réseau / Connection diagram Saunaofen / Sauna heater LSG 10 / PEB 10 Poêle de sauna / Печь... -
Page 16: Installation
Installation 5.4 Internal wiring Credo 12 + 15 kW SSG - Control unit Connection PEB - Power extension box Tubular heating element 12 kW 15 kW PEB 10 + SSG PEB 10 + SSG 9x 1,333 kW 9x 1,666 kW... -
Page 17: X83; Establishing An Electrical Connection
Installation 5.5 Establishing an electrical connection The connection terminals are located on the back of the sauna heater in the lower area. To access the terminal strip, please proceed as follows: Opening the terminal box 1. Unscrew 2 fastening screws from the terminal box cover. 2. - Page 18 Installation Inserting ceramic tiles Now insert the guide profiles (see chapter: Replacing tubular heating element), but this time in reverse order. Place tiles on top of each other. Allow the centre of the tiles to protrude slightly outwards so that retaining brackets can be inserted from above.
-
Page 19: Installation
Assembly 6. Assembly This chapter shows how to install the Credo sauna heater. Before installing the appliance, supply and exhaust air vents must be installed in the cabin. Additional fans may need to be fitted in the vents. All protective films must be removed. -
Page 20: X83; Dimensions And Safety Gaps
Assembly Dimensions and safety distances 2 cm 2 cm 50 cm 40 cm A. Cabin ceiling B. Cabin wall C. Sauna heater D. Supply air vent 2 cm 50 cm No heater protection is required for this sauna heater! The temperatures of the ceramics remain below the standardised limit values if the heater is being used as intended. -
Page 21: X83; Installing Ceramic Tiles
Assembly 6.2 Installing ceramic tiles Preparingthe heater for tile installation The ceramic tiles are supplied unassembled together with the sauna heater and must be installed on the heater. Before installing the ceramic tiles, the heater should be placed in its intended posi- tion and connected to the electrical supply. - Page 22 Assembly Fitting the ceramic tiles Please note that the ceramic tiles are sensitive to impact and breakage and carry out this installation with care! To ensure that the tiles are protected in the guide profiles, the tiles must be carefully placed on the edge of the sheet metal.
- Page 23 Assembly ADVICE For each tile size, 2 more are supplied than actually required so that they are available as spares in the event of damage during installation. the 4 countersunk screws M 4 x 13. 11. Ensure that the stone basket is centred. 12.
-
Page 24: X83; Installing Cubic Stones
Assembly 6.3 Installing cubic stones With these “Cubic” stones, you have the option of perfectly complementing the cubist shapes of the sauna heater and thus emphasising the unique, exclusive design. Firstly, fill the stone basket of the heater with the normal sauna stones so that there is still a gap of approx. -
Page 25: X83; Air Inlet And Outlet
Assembly 6.4 Supply and exhaust air vents WARNING Fire hazard due to overheating If the air supply is insufficient, the heater may overheat. There is a danger to life due to fire. Ensure sufficient ventilation through supply and exhaust air vents. If applicable, ƒ... -
Page 26: Installing The Heater
Assembly Location: Under the heater ƒ A duct guides fresh air to the vent(s). ƒ If required, a fan must be installed outside the cabin at the start of the duct. ƒ 6.5 Specifications for the control unit The operating conditions of the control unit must be observed so that the temperature regulation of the sauna cabin can function smoothly. -
Page 27: Commissioning
Commissioning 5. Commissioning Before the heater can be commissioned (switched on), it must be filled with sauna stones, which are available as optional accessories. Before switching it on, ensure that the air inlets are free of lint. Remove any lint with a moist towel. The heater is switched and controlled via the control unit. -
Page 28: Starting The Heater
Commissioning 5.1 Starting the heater A slight odour may be occur the first time the cabin is switched on because the heating elements get heated for the first time. The odour ceases upon continued operation of the heater. Switching the sauna heater ►... -
Page 29: Maintenance
Maintenance 6. Maintenance This sauna heater is made of corrosion resistant materials. To ensure a long service life, take care of and perform regular maintenance on your sauna heater. Ensure that openings in the intake area and heat reflectors are never blocked. These can easily become blocked with lint and dust as fresh air is drawn in. -
Page 30: X83; Sauna Stones
Maintenance 6.2 Sauna stones Sauna stones are a product of nature. Sauna stones must be replenished or reshuffled regularly depending on the intensity of use. The process of heating and cooling can make the stones brittle. Particular damage to the sauna stones can be caused by aggressive sauna essences, causing them to disintegrate over time. -
Page 31: X83; Replacing The Tubular Heating Elements
Maintenance 8.3 Replacing tubular heating elements Individual tubular heating elements or the entire heating register can be replaced. If the heater is too close to a wall, it may need to be moved so that the rear side can be accessed. To make it easier to move the heater, the stones must be removed. -
Page 32: X83; Cleaning Ceramics
Maintenance 8.4 How should the ceramics be cleaned? First things first: Due to their surface texture and glaze, ceramic tiles have exceptionally good cleaning properties and high stain resistance. However, small irregularities can cause dirt and dust to settle on the tile surface. Only use strong cleaning agents in an emergency and avoid cleaning agents containing hydrofluoric acid or fluo- rides. -
Page 33: Recycling
Electronic waste Electronic waste must be disposed of at the designated local collection point for electronic waste. Additional disposal note for commercial users: Further disposal instructions can be found under the link www.eos.sauna.de/recycling Service Address EOS Saunatechnik GmbH Tel: +49 (0)2775 82-514... -
Page 34: General Terms And Conditions Of Service
The manufacturers General Terms and Conditions of Business, The manufacturer shall assume liability in accordance with the which can be found at www.eos-sauna.com/agb, shall apply in currently applicable statutory regulations. The packaging for all addition to the foregoing terms and conditions of service.
