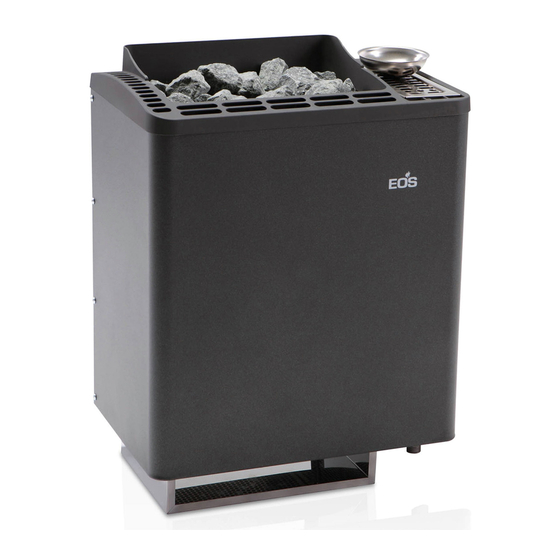

Summary of Contents for EOS Bi-O Tec

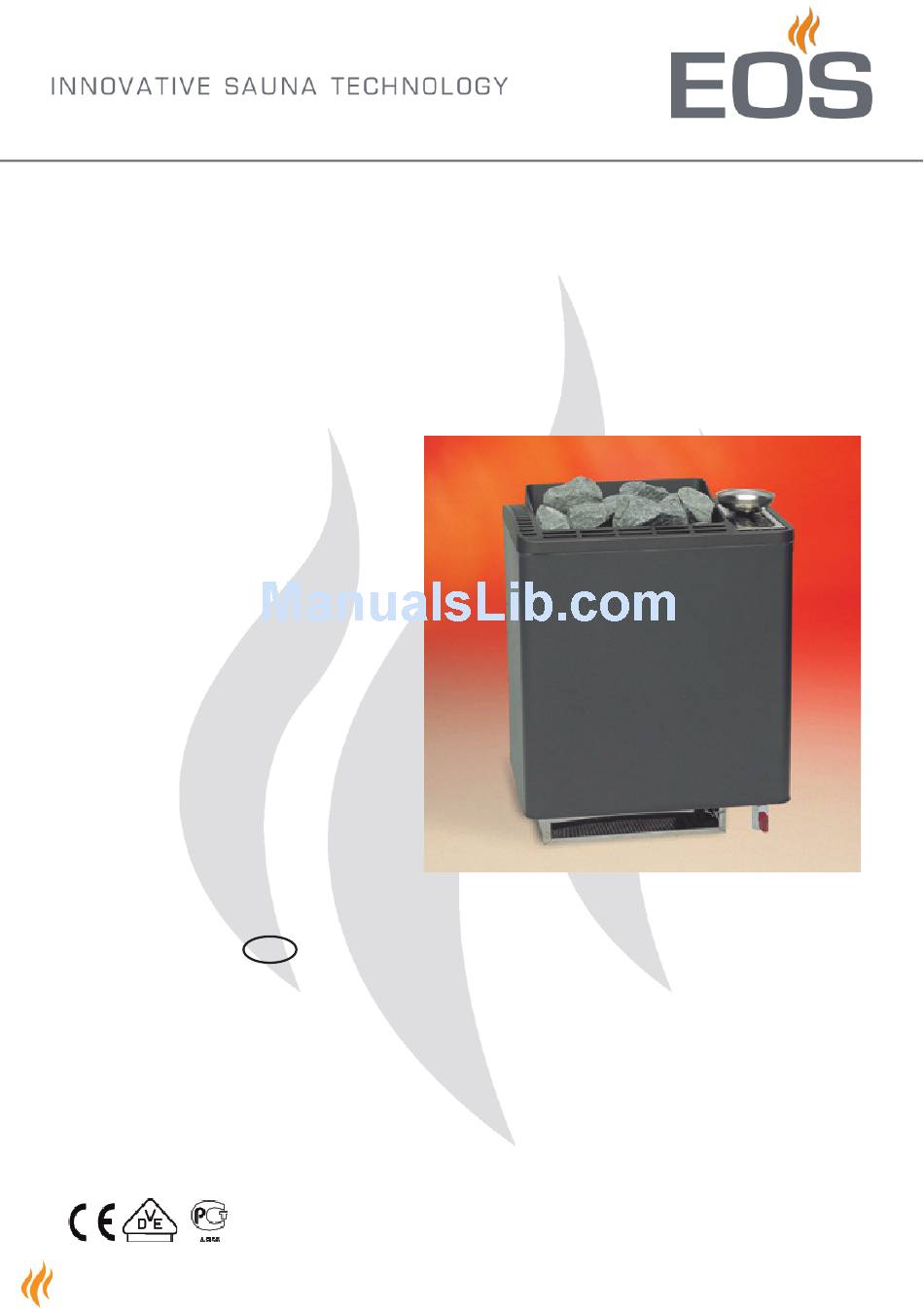

- Page 1 Bi-O Tec Assembly and operating instruction MADE IN GERMANY IP X4 Druck.-Nr 29343369en / 28.12...
-
Page 2: Table Of Contents
English Table of Contents Intended use ......................3 General notes ......................3 Important notes .......................4 Electrical connection ....................5 Example of a properly connected sauna system ............6 Technical Data ......................7 Minimum clearances ....................7 Finnish sauna operation ..................8 Operation with vaporizer ..................9 De-scaling of the vaporizer ..................9 Sauna stones ......................10 Maintenance and care ..................10 Accessories ......................12... -
Page 3: Intended Use
Dear Customer, For installation and electrical connection of the rocker switch follow the installation in- You have purchased a high quality technical structions supplied with this part. system which will provide you with many ye- ars of enjoyable sauna bathing. This sauna General notes heating system was constructed in accor- dance with state-of-the-art European safety... -
Page 4: Important Notes
Important notes air intake and exhaust vents must not be closed. Please observe the information If assembled incorrectly, the sys- provided by your sauna cabin supplier. tem will present a fi re hazard. • For the adjustment and control of the sau- Please read this installation guide tho- na heating unit, one of the control units roughly. -
Page 5: Electrical Connection
in the table. Electrical connection • During the installation of the sauna hea- Your electrician will be able to accomplish ting unit, make certain that the vertical this work without further explanation in ac- cordance with the provided wiring schema- clearance between the upper edge of the tic and with the help of the circuit diagram sauna heating unit and the sauna ceiling... -
Page 6: Example Of A Properly Connected Sauna System
Example of a properly connected sauna system Sensor Saunasteuergerät control unit max. 9 kW max. 3 kW WB WM N N U V W L1 L2 L3 N U V W WB WM N Caution! Always make certain to include neutral conductor N clamp 400 V AC 3N 6 kW... -
Page 7: Technical Data
Minimum clearances Technical Data The minimum interior height of the sauna Voltage: 400 V AC 3N 50 Hz booth is 1.90 m Power consumption: 6.0*; 7.5**; 9.0** kW When assembling the sauna oven, attention depending on the version must be paid to the fact that the vertical Evaporation capacity: *1.5;... -
Page 8: Finnish Sauna Operation
Fig. 4 Please do not put any salts, for example Himalayas salts, in the vaporiser bowl of the Bi-O Tec-heaters. For an aroma with salts we recommend the Cable screwing Multicup which you can fi nd in the list of the accessories. -
Page 9: Operation With Vaporizer
Operation with vaporizer If additives are put in the water, this gene- rally leads to a foamy boiling over of the wa- (only Bi-O heaters) ter. In this case the water must be drained The control of the vaporizer is managed by and the interior of the cold reservoir washed the control unit. -
Page 10: Sauna Stones
Sauna stones Maintenance and care The sauna stone is a natural product. All sauna heating units are made of low- Check the sauna stones at regular intervals. corrosion material. Still, to enjoy your sau- Strong infusion concentrates especially can na heating unit for a long time, you should weaken the sauna stones and cause them to maintain and care for the unit. - Page 11 For the installation of sauna heaters, please pay attention to the DIN VDE 0100 part 703 ! This standard makes the following statement valid in your newest expenditure, since February 2006, paragraph 703.412.05; Quotation: The additional must be planned for all electric cir- cuits of the Sauna by one or more fault current protection device (RCDs) with a calculation diffe- rence stream not more largely than 30 mA, exclu-...
-
Page 12: Accessories
Accessories 3. Position the pin on the mounting tube in the hole in the upper cross member on Moreover this stove offers the possibility of the triangular frame so that it can pivot. achieving wellness effects with the mounting device. Aroma pan mounting tube Aroma pan... - Page 13 Herbal cup - mounting Herbal cup Mounting Saunaheater Caution! The mounting device heats up during operation of the sauna. Therefore never touch the device during operation of the sauna or shortly thereafter - danger of severe burns. Never place dry herbs or tea bags in the accessories - fi...
-
Page 14: Service Address
Service Address: Outside of Germany please contact your EOS Saunatechnik GmbH specialist dealer in case of warranty claims. Adolf-Weiß-Straße 43 Direct warranty processing with our service 35759 Driedorf-Mademühlen, Germany department is in this case not possible. -
Page 15: Handling Procedures For Return Shipments (Rma) - Details For All Returns
Handling procedures for return shipments (RMA) - Details for all returns ! Dear customer we hope that you will rejoice in the ordered articles. Just in case that you are not entirely contented as an exeption, please follow the procedures specifi ed below.This enabling us to ensure a quick and smooth handling of the return shipment.
