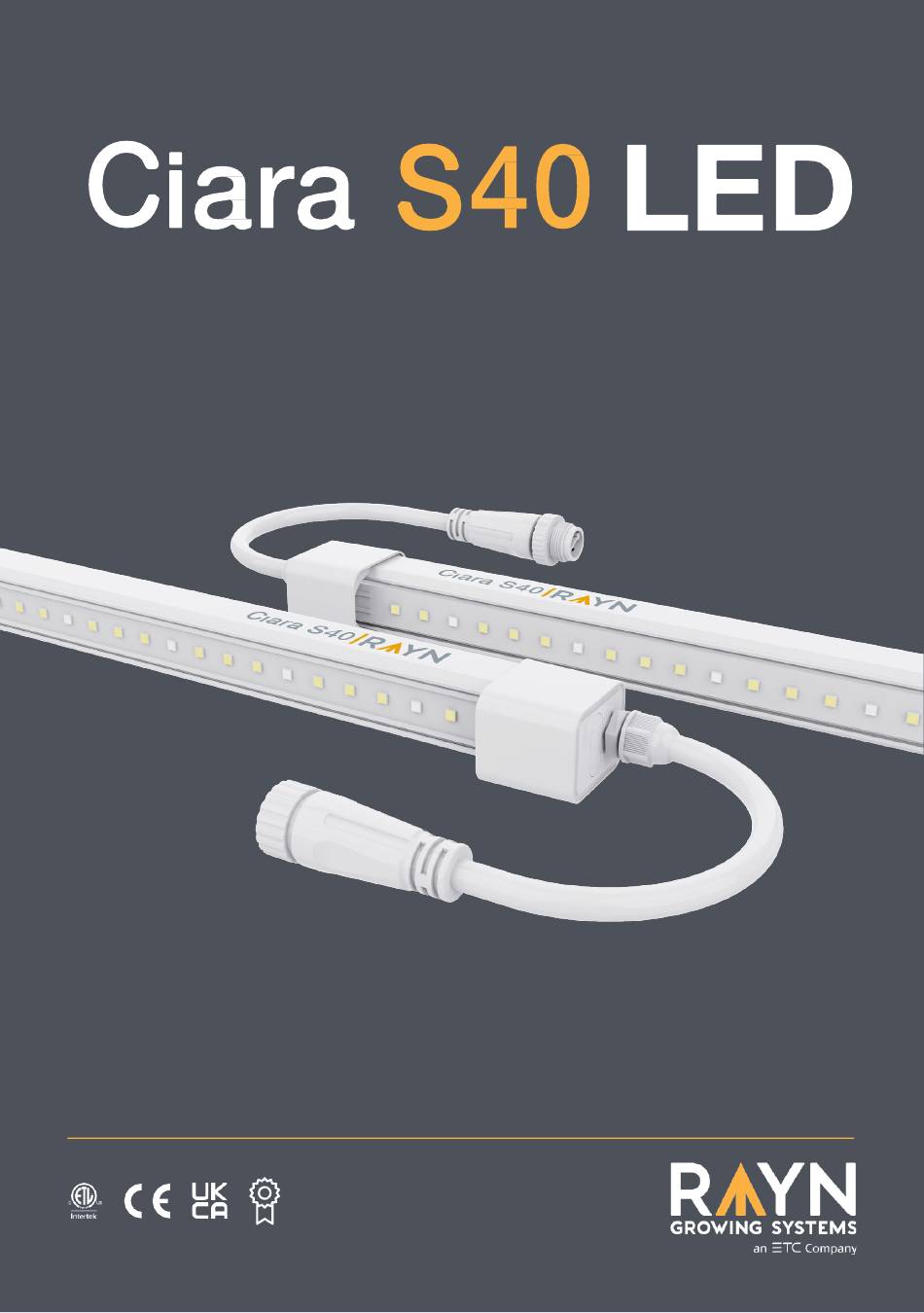

- Page 1 18 W Commercial Grow Lights User Manual Simplified grow lighting. 5-Year Warranty Part Number: 7441M2110 Rev B Released: 2025-01...
-
Page 2: Safety Information
1. SAFETY INFORMATION The Ciara S40 is not user serviceable. Contact your RAYN Growing Systems provider for assistance. CAUTION: Please read the following information carefully before installing and using. 1. Check and comply with your local law and restrictions for additional safety requirements of installation and operation. -
Page 3: Key Features
2. KEY FEATURES - Two LED light fixtures (strips) included - Daisy-chain up to 72 LED strips at 277 VAC (consult electrician for circuit limitations) - IP66 water-resistant and dustproof housing and connectors - Hanging clips and plastic tie slots for easy installation - 5-year LIMITED warranty 3. - Page 4 µmol/s/nm FR Boost Spectrum Efficacy Input Voltage Fixture Weight Dimensions Propagation 30 μmol/s 1.6 μmol/J Cultivation 41.4 μmol/s 2.3 μmol/J 112x2.9x3.7 cm 120 V, 208 V, 240 V, 277 V 1.0 kg (44.1x1.2x1.5 in) (2.1 lb) FR Boost 30 μmol/s 1.6 μmol/J NOTE: Spectrum data is subject to change.
-
Page 5: Installation
4.3 DIMENSIONS 112 cm (44.1 in) 25 cm (10 in) 5. INSTALLATION Please read the following information before starting to install. Installation of this horticultural LED light fixture shall be performed by a qualified person with experience. To mount the light fixture properly, start by identifying an appropriate support structure to mount the fixture. - Page 6 5.1 UNISTRUT MOUNTING Warning! Check the Unistrut and make sure it can support the entire weight of all light fixtures on it. Mounting with Clips Fasten the fixture in this direction.
- Page 7 Mounting with Plastic Ties Pass the plastic ties through the hole on the end. 5.2 LIGHT CONNECTION (1) Set the first light fixture at a proper position following the steps in 5.1. Ensure the male port of the light fixture faces outside to connect to the power cord later. Power cord First fixture Male Port...
- Page 8 (2) Connect the second light fixture to the first by plugging the male port into the female port of the first fixture. Ensure the connection is tight. Alternatively, use a fixture extension cord (model LNGE40, sold separately) to connect between the fixtures if needed.
-
Page 9: Other Information
6. OTHER INFORMATION Maintenance - Disconnect power and allow the fixture to cool down completely before starting to clean. - Check the fixture regularly for dust or dirt buildup. Clean with a damp soft cloth if needed. Contamination may cause overheating and decreased performance. - DO NOT use any chemical detergents to clean. - Page 10 Ciara RAYN Growing Systems | 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 | +1 844 907 RAYN © 2025 RAYN Growing Systems | All Rights Reserved | Support support.etcconnect.com/RAYN Trademark and patent info: rayngrowingsystems.com/ip | Third-party license agreement info: etcconnect.com/licenses All product information and specifications subject to change.
