BrandMe
SKU:140B/W
Assembly Instructions

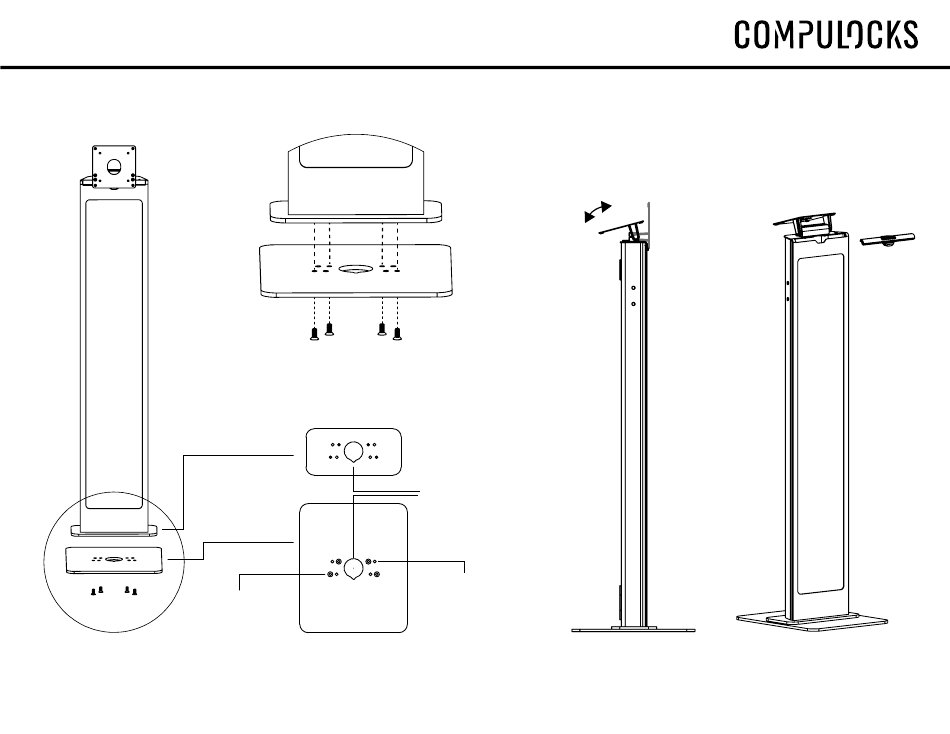

1 Floor Mounting Option - Freestanding
USING FOUR M6x14mm FLAT HEAD SCREWS (PROVIDED).
Body bottom plate
Countersunk holes
for screwing base
plate to body
*NOTE: FLOOR STAND MUST BE TRANSPORTED WITHOUT THE STABILITY PLATE ATTACHED TO PREVENT DAMAGE.
©Compulocks Brands Inc. All Rights Reserved
INSTALL BASE PLATE TO BODY BOTTOM PLATE
TIGHTEN USING T-30 TORX SCREWDRIVER
Base plate
www.compulocks.com | online@maclocks.com | +1 800-948-0344
1A Floor Mounting Option - Bolt To Floor
COMPLETE STEP 1
TILT
Align shapes
when installing
Straight holes
for mounting base
plate & body
to floor
REMOVE RUBBER CAP
Sheet 1 of 5
