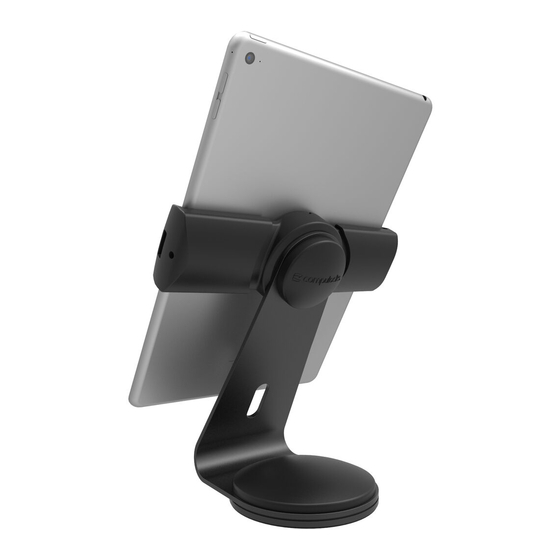

Cling Stand
SKU: UCLGSTDB \ UCLGSTDW
Assembly Instructions
Fixed Mounting
MOUNTING SCREWS
NOT PROVIDED
Rotation Mounting
ROTATION LOCKNUT
PLASTIC WASHER
ROTATION DISC
MOUNTING SCREWS
ROTATION PLATE
©Compulocks Brands Inc. All Rights Reserved.j
2.50"
B.C.
63.50mm
MOUNTING SCREWS NOT PROVIDED
ROTATION MOUNTING
PATTERN
2.75"
B.C.
69.85mm
1.19"
30.25mm
FLAT HEAD
PROVIDED
www.compulocks.com | online@maclocks.com | +1 800-948-0344
FIXED MOUNTING
PATTERN
1.77"
44.90mm
1.77"
44.90mm
1.375"
34.92mm
.688"
17.46mm
6.30"
160mm
ROTATION CLEARANCE FOR BASE
WITH 360 DEGREES OF ROTATION
VHB PAD
PRIOR TO INSTALL OF VHB PAD
CLEAN BOTH MOUTING SURFACES
USING ALCOHOL PADS PROVIDED
LAP TOP LOCK
VHB PAD
PRIOR TO INSTALL OF VHB PAD
CLEAN BOTH MOUTING SURFACES
USING ALCOHOL PADS PROVIDED
Sheet 1 of 5
Advertisement
Table of Contents
Related Manuals for compulocks UCLGSTDB
Summary of Contents for compulocks UCLGSTDB
- Page 1 PRIOR TO INSTALL OF VHB PAD ROTATION CLEARANCE FOR BASE CLEAN BOTH MOUTING SURFACES ROTATION PLATE WITH 360 DEGREES OF ROTATION USING ALCOHOL PADS PROVIDED ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 1 of 5...
- Page 2 CLOSES TO 8.50” 6.50” 216mm 165mm * CAUTION* WHEN INSTALLING TABLET DO NOT OVER TIGHTEN TABLET RETAINERS OVER TIGHTENING COULD LEAD TO TABLET DAMAGE ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 2 of 5...
- Page 3 THROUGH ARM ATTACH POWER CABLE TO TABLET ROUTE CABLE THROUGH CENTER HUB PULL EXCESS POWER CABLE ROTATION INSTALL REAR CAP ROUTING CABLE THRU CAP www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 3 of 5 ©Compulocks Brands Inc. All Rights Reserved.j...
- Page 4 ATTACH POWER CABLE TO TABLET OPTIONAL POWER CABLE ROUTING OPTIONAL POWER CABLE ROUTING ROTATION INSTALL REAR CAP ROUTING CABLE THRU CAP OPTIONAL POWER CABLE ROUTING ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 4 of 5...
- Page 5 THEN BACK OFF EACH OF THE SCREWS 1/4- 1/3 OF A TURN (3, PLACES) FOR EASE OF ROTATION FROM LANDSCAPE TO PORTRAIT Wall Mounting MOUNTION SCREWS NOT PROVIDED ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 5 of 5...
