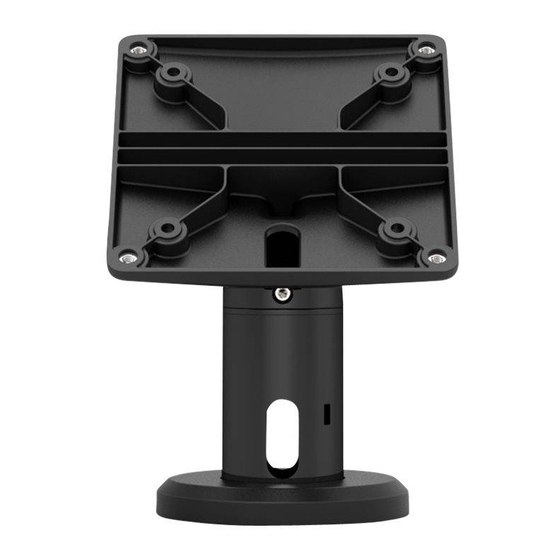

Rise Pole Stand 10, 20
Assembly Instructions
Installation On Counter Top
COUNTER MOUNTING PATTERN
23.80mm
.94 in
25.40mm
1.50 in
IF WIRING THRU
COUNTER
67.31mm
2.65 in B.C.
2
INSTALL YOUR TABLET
ENCLOSURE AS SHOWN
USING M4 SCREWS
PROVIDED WITH ENCLOSURE
IN THE BOX
Hardware Kit
©Compulocks Brands Inc. All Rights Reserved.j
SKU: TCDP04, TCDP04W, TCDP01, TCDP01W
23.80mm
.94 in
5.6mm
4X
.219 in, 7/32 in
3
WIRE
OUTLET
ACCESSORIES
Adhesive Base
Fixed Pole Stand
www.compulocks.com | online@maclocks.com | +1 800-948-0344
1
14 X 1 ½" SHEET
METAL SCREWS
4
3.28"
COVER
83.32mm
DIAMETER
Single Add On Bracket
WIRE PASS THRU
FROM ENCLOSURE
IF MOUNTING
TO A MONITOR
WIRE INLET
COVER PLATE
REMOVE M4
PRESS IN NUTS
3.21"
81.53mm MOUNTING FLANGE DIAMETER
ASSEMBLY
COMPLETE
Free Standing Base
Sheet 1 of 2
