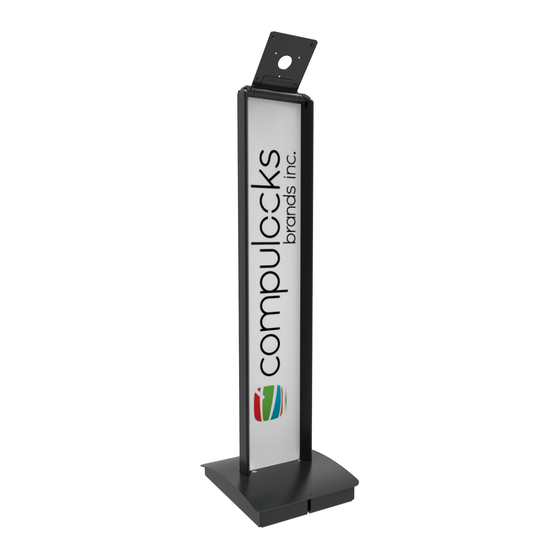

compulocks BrandMe 140B Assembly Instructions

BrandMe
SKU: 140B/W
Assembly Instructions

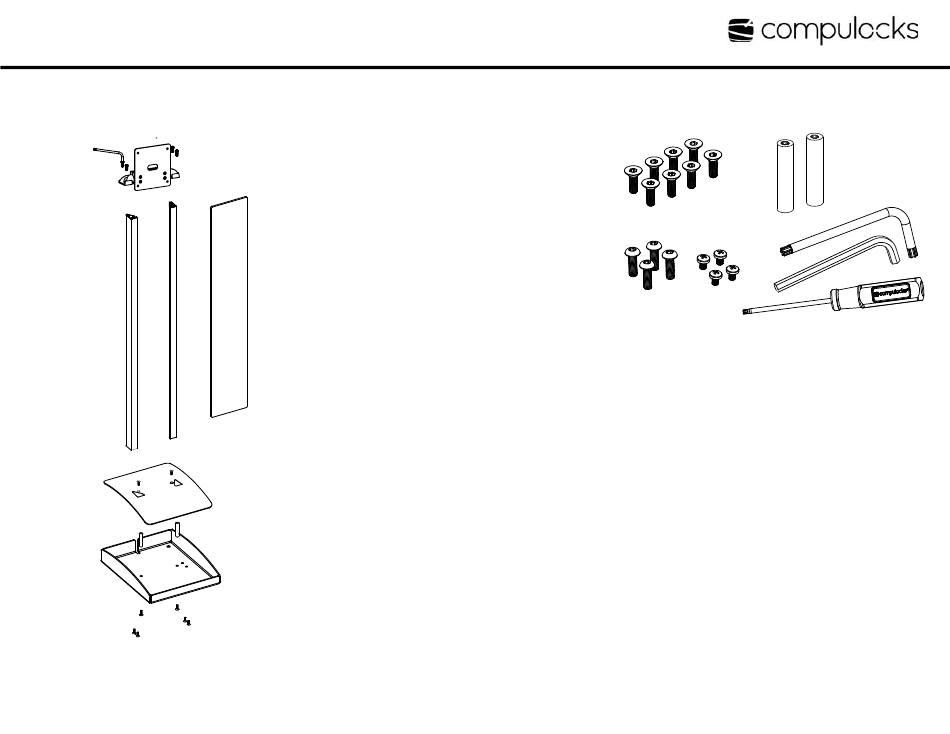

Exploded View
A
C
B
B
D
D
H
H
E
G
G
F
H
H
H
H
©Compulocks Brands Inc. All Rights Reserved.j
K
Item Description
A Top End Assembly
B M5 x 20mm Button Head Torx
C T-25 Torx L-Wrench
D Upright Extrusion
E Base Cover
F Base
G M5 x 40mm Round Spacer
H M5 x 20mm Flat Head Torx
K Graphic Panel
L T-25 Screwdriver
www.compulocks.com | online@maclocks.com | +1 800-948-0344
Hardware Kit
H
B
Item Description
B M5 x 20mm Button Head Torx
C T-25 Torx L-Wrench
G M5 x 40mm Round Spacer
H M5 x 20mm Flat Head Torx
I M4 x 8mm Button Head Phillips
J M5 Hex Wrench
L T-25 Screwdriver
Before Getting Started
Qty
1 If you plan on a constant power connection
4 to your Tablet, you will need to obtain a
1 longer USB cable, allowing you to route the
2 cable through the Upright
1 Extrusion.
1
2 You will also need a AC Power Cord to
8 connect to a Power Cube, These Cables are
1 not supplied with the Stand.
1
G
C
I
J
L
Qty
4
1
2
8
4
1
1
Sheet 1 of 4
