compulocks 159B Assembly Instructions

Flex counter top

Advertisement

Quick Links

Flex Counter Top
Assembly Instructions

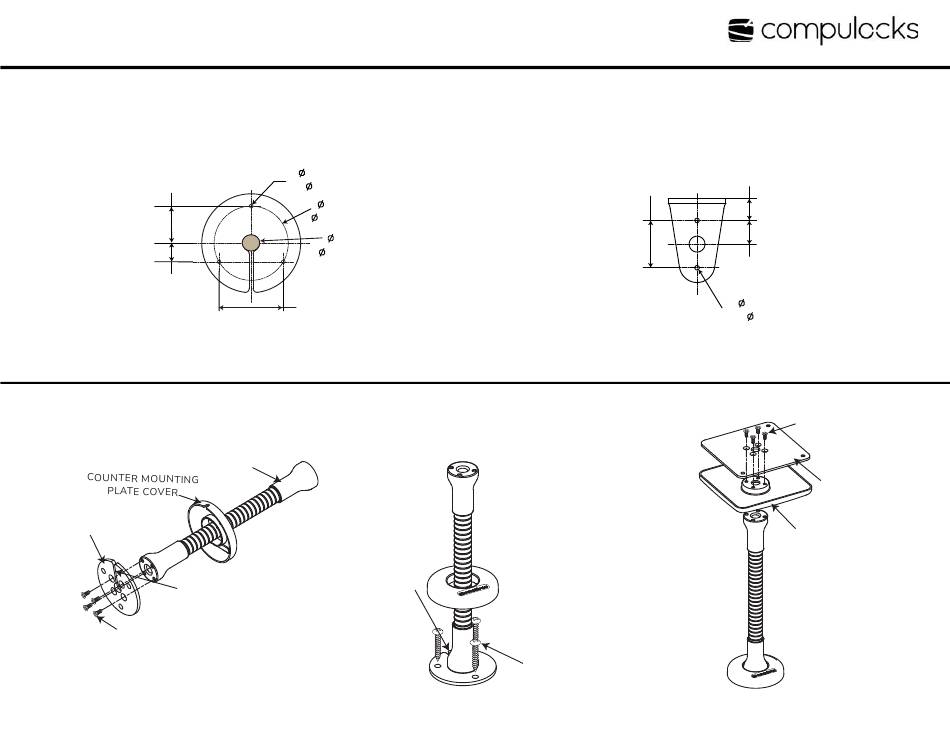

Mounting Options
COUNTER MOUNTING
1.125"
28.58mm
.56"
14.30mm
1
FLEX ARM
COUNTER MOUNTING
PLATE
WIRE OUTLET
ABOVE COUNTER
#10-32 X 3/8" PHILLIPS
PAN HEAD SCREWS
©Compulocks Brands Inc. All Rights Reserved.j
SKU: 159B
.156", 5/32"
3X
3.96mm
2.250"
B.C.
57.15mm
.50"
12.7mm
IF WIRING
THRU COUNTER
1.95"
49.53mm
2
WIRE OUTLET
ABOVE COUNTER
www.compulocks.com | online@maclocks.com | +1 800-948-0344
WALL MOUNTING
1.50"
38.10mm
3
#14 X1 1/2" PHILLPS
SHEET METAL SCREWS
.69"
17.63mm
.75"
19.05mm
.156", 5/32"
2X
3.96mm
#10-32 X 3/8" PHILLIPS
FLAT HEAD SCREWS
100MM MOUNTING
PLATE
100mm MOUNTING
PLATE COVER
Sheet 1 of 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the 159B and is the answer not in the manual?

Questions and answers

Summary of Contents for compulocks 159B

  • Page 1 PLATE COVER WIRE OUTLET ABOVE COUNTER WIRE OUTLET ABOVE COUNTER #10-32 X 3/8” PHILLIPS PAN HEAD SCREWS #14 X1 1/2” PHILLPS SHEET METAL SCREWS ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 1 of 2...
  • Page 2 IN THE BOX ACCESSORIES Mounting 100mm Right Angle Hardware Kit Plate Cover Plate Cover Mounting Bracket Mounting 100mm Bracket Flex Arm Adhesive Base Bracket ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 2 of 2...
