compulocks Mac Studio MSSTD01 Assembly Instructions

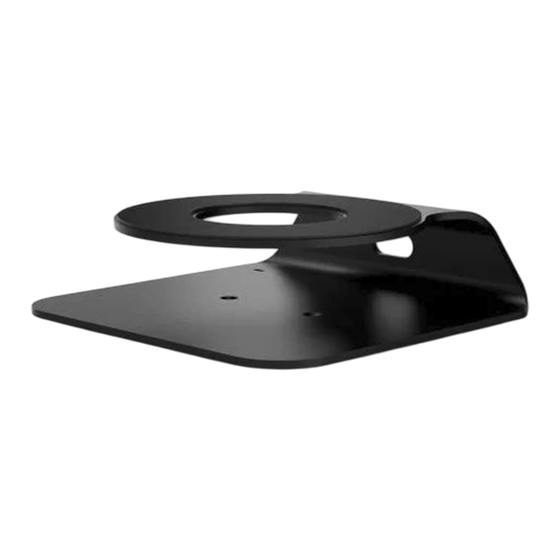

Mac Studio Security Desktop Stand
Assembly Instructions
7.75"
197mm
3.54"
90mm
3/32"-.094"
2X
2.4mm
2
Free Standing Base
REMOVE COVER FROM FEET AND ADHERE TO BASE
APPROXIMATELY WHERE SHOWN
©Compulocks Brands Inc. All Rights Reserved.j
SKU: MSSTD01
2.36"
60mm
7.36"
187mm
OR
Screw Fixed
ADHERE FEET AS PER FREE STANDING BASE
SECURE BASE TO FLAT SURFACE USING
TAMPER PROOF SCREWS PROVIDED.
THERE WILL BE A 1mm / 0.04" GAP
BETWEEN STAND AND COUNTER
TOP TO ALLOW FOR LOCK HEAD
www.compulocks.com | online@maclocks.com | +1 800-948-0344
1
CLEAN BOTTOM OF STAND
USING ALCOHOL PAD PROVIDED
OR
TOP COVER
LOWER COVER
REMOVE COVER FROM ONE SIDE OF ADHESIVE TAPE
AND ADHERE TO STAND APPROXIMATELY WHERE
SHOWN. AFTER INSTALLATION REMOVE SECOND TAPE
7.3"
185mm
7.3"
185mm
IF BONDING STAND TO COUNTER
CLEAN AREA TO SIZE SHOWN WHERE
STAND WILL BE PLACED USING
ALCOHOL PAD PROVIDED
Bonding Stand
FULL BOND STRENGTH
WILL OCCUR IN 48 HRS.
COVER AND ADHERE TO PREPARED SURFACE
Sheet 1 of 2
