compulocks 147B Assembly Instructions

Adjustable
SKU: 147B

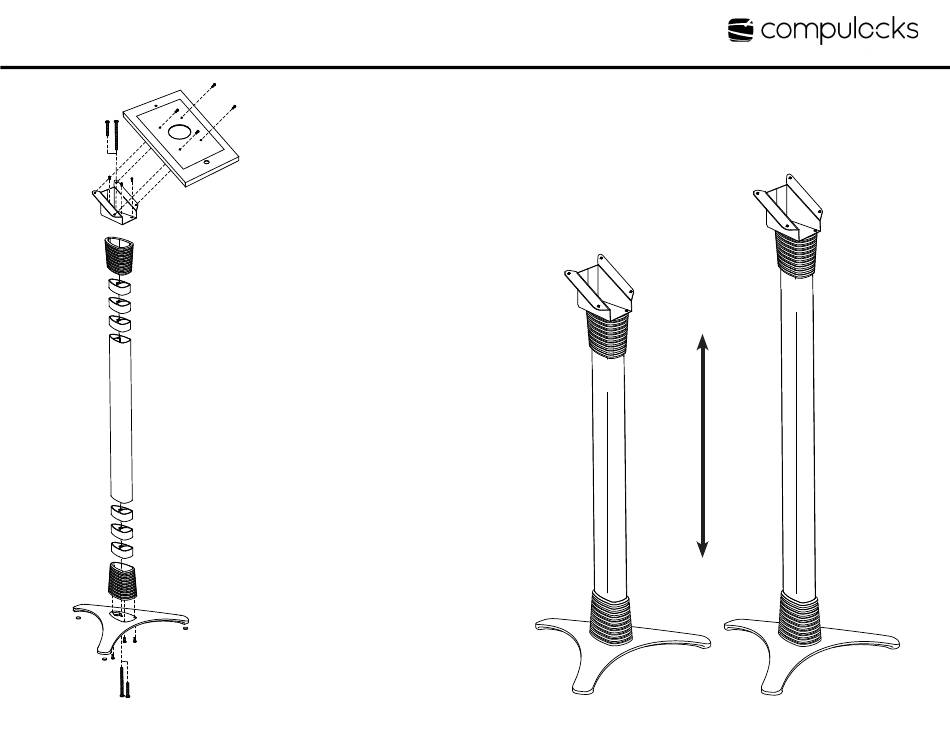

Assembly Instructions
A
B
C
D
E
F
G
Item Description
A
B
C
H
D
E
F
G
H
I
G
J
F
I
J
D
C
B
©Compulocks Brands Inc. All Rights Reserved.j
iPad Enclosure Not Included
M4 x 8mm Pan Head Phillips Machine Screw
1/4"-20 x 1-3/4" Pan Head Phillips Machine Screw
1/4"-20 x 3-3/4" Pan Head Phillips Machine Screw
#8-16 x 1/2" Pan Head Phillips Self Threading Screw
Upper Mounting Bracket (100mm)
Riser Skirt Upper / Lower
Riser Spacer
Aluminum Riser
Cast Iron Base
Adhesive Backed Rubber Foot Pad
www.compulocks.com | online@maclocks.com | +1 800-948-0344
Qty
4
2
2
6
39"
1
2
6
1
1
3
45"
Sheet 1 of 2
