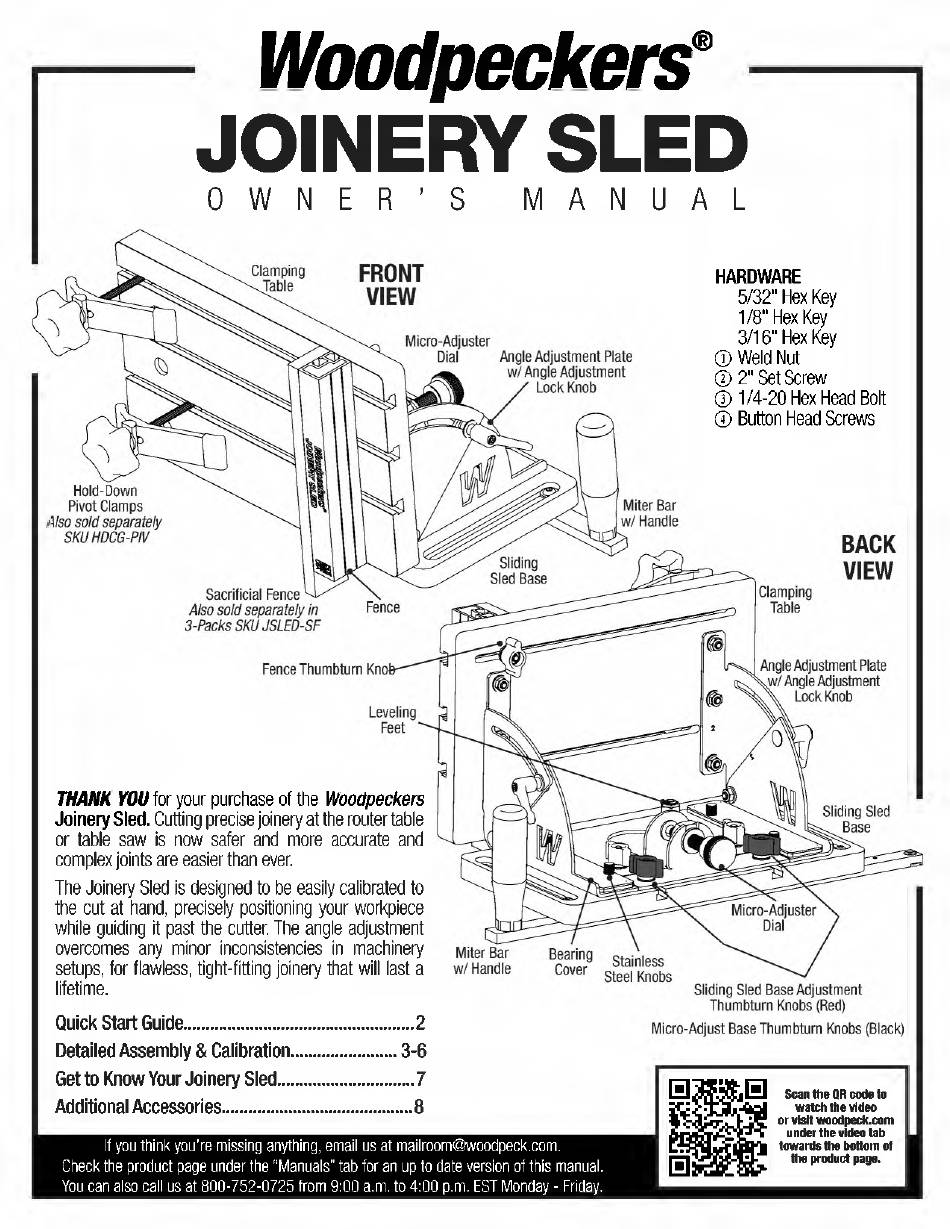

Woodpeckers JOINERY SLED Owner's Manual

oodpeckers
OINERY SLED
OWNER ' S MANUAL
HANK YOU for your purchase of the Woodpeckers
oinery Sled.
Cutting precise joinery at the router table
or table saw is now safer and more accurate and
complex joints are easier than ever.
The oinery Sled is designed to be easily calibrated to
the cut at hand, precisely positioning your workpiece
while guiding it past the cutter. The angle adjustment
overcomes any minor inconsistencies in machinery
setups, for flawless, tight-fitting joinery that will last a
lifetime.
Quick Start Guide 2
Detailed Assembly & Calibration 3 t h r o u g h 6
Get to Know Your oinery Sled
7
Additional Accessories 8
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
Check the product page under the " Manuals " tab for an up to date version of this manual.
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
Scan the QR code to
watch the video
or visit woodpeck.com
under the video tab
towards the bottom of
the product page.
HARDWARE
5/32" Hex Key
1/8" Hex Key
3/16" Hex Key
1 Weld Nut
2 2" Set Screw
3 1/4-20 Hex Head Bolt
4 Button Head Screws
