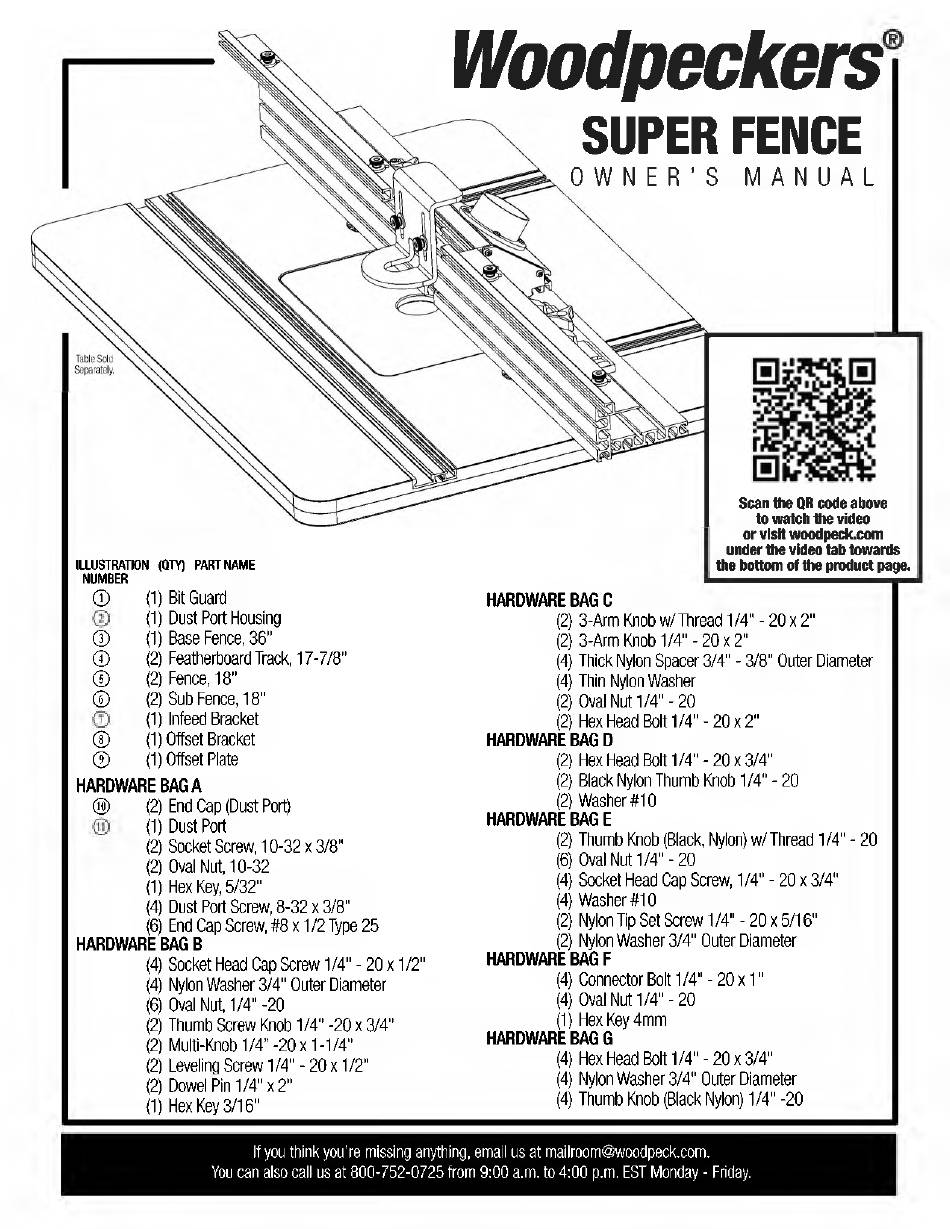

Woodpeckers SUPER FENCE Owner's Manual

oodpeckers
UPER FENCE
WNER ' S MANUAL
f you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
LLUSTRAT ON
NUMBER
(QTY) PART NAME
1) Bit Guard
2 1) Dust Port Housing
3
1) Base Fence, 36"
4
2) Featherboard Track, 17-7/8"
5
2) Fence, 18"
6
2) Sub Fence, 18"
7
1) Infeed Bracket
8
1) Offset Bracket
9
1) Offset Plate
HARDWARE BAG A
0
2) End Cap Dust Port)
1) Dust Port
2) Socket Screw, 10-32 x 3/8"
2) Oval Nut, 10-32
1) Hex Key, 5/32"
4) Dust Port Screw, 8-32 x 3/8"
6) End Cap Screw, #8 x 1/2 Type 25
HARDWARE BAG B
4) Socket Head Cap Screw 1/4" - 20 x 1/2"
4) Nylon Washer 3/4" Outer Diameter
6) Oval Nut, 1/4" -20
2) Thumb Screw Knob 1/4" -20 x 3/4"
2) Multi-Knob 1/4 " -20 x 1-1/4"
2) Leveling Screw 1/4" -20 x 1/2"
2) Dowel Pin 1/4" x 2"
1) Hex Key 3/16"
HARDWARE BAG C
2) 3-Arm Knob w/ Thread 1/4" - 20 x 2"
2) 3-Arm Knob 1/4" - 20x2"
4) Thick Nylon Spacer 3/4" - 3/8" Outer Diameter
4) Thin Nylon Washer
2) Oval Nut 1/4"-20
2) Hex Head Bolt 1/4" - 20x2"
HARDWARE BAG D
2) Hex Head Bolt 1/4" - 20 x 3/4"
2) Black Nylon Thumb Knob 1/4" - 20
2) Washer #10
HARDWARE BAG E
2) Thumb Knob Black, Nylon) w/ Thread 1/4" - 20
6) Oval Nut 1/4"-20
4) Socket Head Cap Screw, 1/4" - 20 x 3/4"
4) Washer #10
2) Nylon Tip Set Screw 1/4"-20 x 5/16"
2) Nylon Washer 3/4" Outer Diameter
HARDWARE BAG F
4) Connector Bolt 1/4"-20 x 1"
4) Oval Nut 1/4"-20
1) Hex Key 4mm
HARDWARE BAG G
4) Hex Head Bolt 1/4" - 20 x 3/4"
4) Nylon Washer 3/4" Outer Diameter
4) Thumb Knob Black Nylon) 1/4" -20
