1.1 General
The Parallel kit is supplied separately from the power supply packing according to the order.
The usage of the parallel kit is according to the customer's needs.
1.2 Advanced Parallel
For parallel connection, refer to the advanced parallel chapter in the
1.3 Product Safety Instructions
Safety approvals are valid for
If the parallel kit is used to connect multiple power supply units in parallel, please note that doing so requires the
removal of the individual protection covers. While a single unit is designed with integral access protection to
guard against shock hazards, this protective feature is compromised in a parallel configuration. Therefore, the
entire assembly must be installed in a fully enclosed, locked cabinet or secured rack to prevent unauthorized
access and to ensure continued protection against shock hazards. It is the user's responsibility to provide an
appropriate enclosure that meets all applicable safety standards.
1.4 Assembly Instructions
The supplied kit is used for standard and blank panel options. Follow the instructions carefully according to the
power supply model.
1.4.1
G7.5kW/P-4U: 20-40V — Assembly Instructions for four 20V-40V units in
Parallel
1.4.1.1 Components List
single unit only. These are not valid for parallel kit assembly.

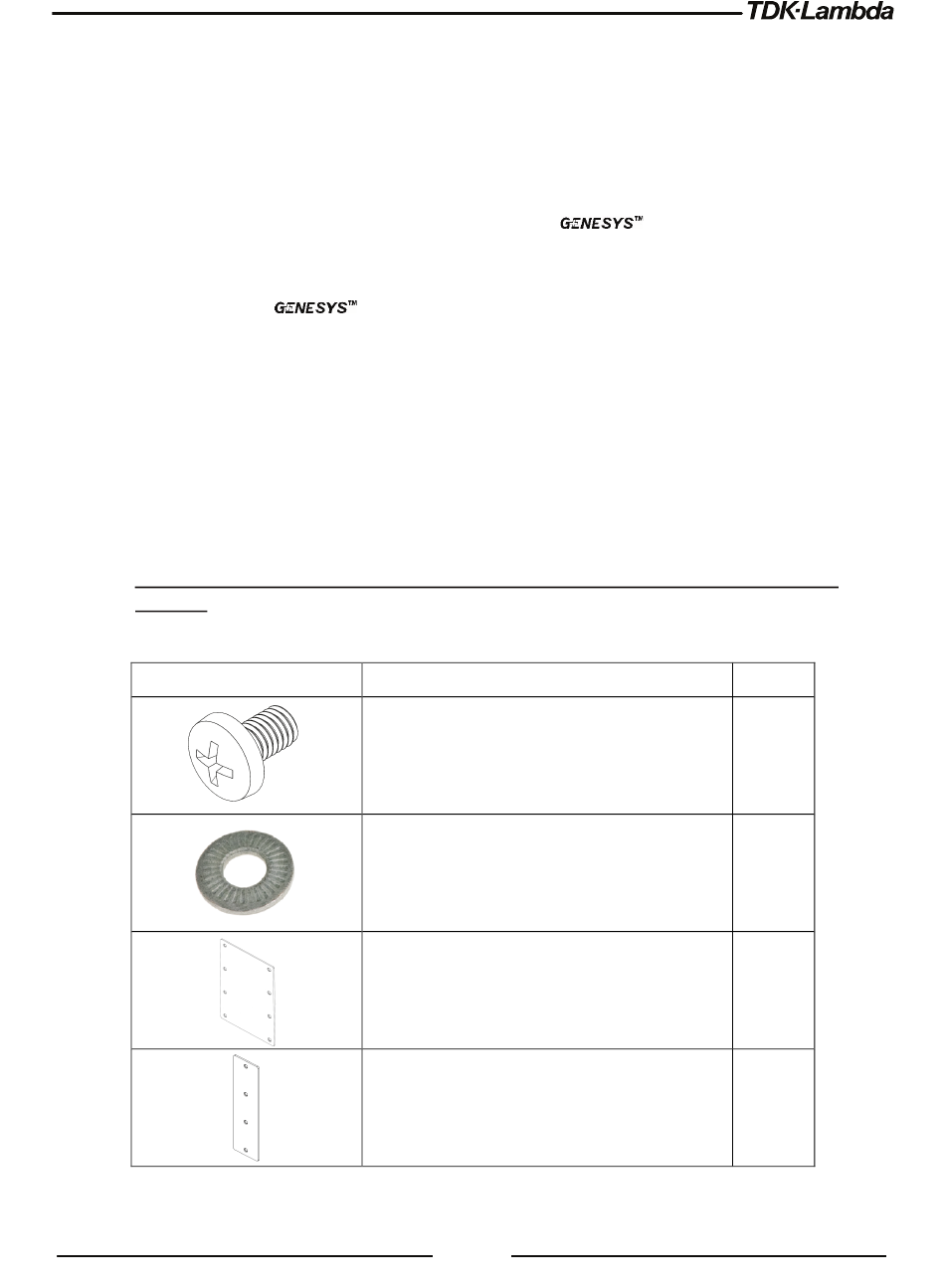

Component
10-32 x 0.3125 Pan Head Screw, Stainless Steel
Rip-Lock Washer M5, BN 84530, Spring Steel
Connection Plate 4U
Front Connection Plate 4U
1
Series user manual.
Quantity
24
24
2
2
