DVS 510 Series • Setup Guide
The Extron DVS 510 Series scalers are 10-input, multi-format presentation switching scalers that accept and scale DVI,
RGB, YUVp/HDTV, YUVi, S-video, and composite video signals to a common high-resolution output rate. Two models are
available: the standard DVS 510, which has fixed and variable line level audio outputs, and the DVS 510 SA, which adds an
integrated stereo amplifier. Control options include front panel buttons and knobs, Ethernet, RS-232 or RS-422, web pages,
and infrared (IR). This guide provides instructions for an experienced installer to install and connect the DVS 510 scalers.
NOTE: For full installation, configuration, and operation details, see the DVS 510 Series User Guide, available at
www.extron.com.

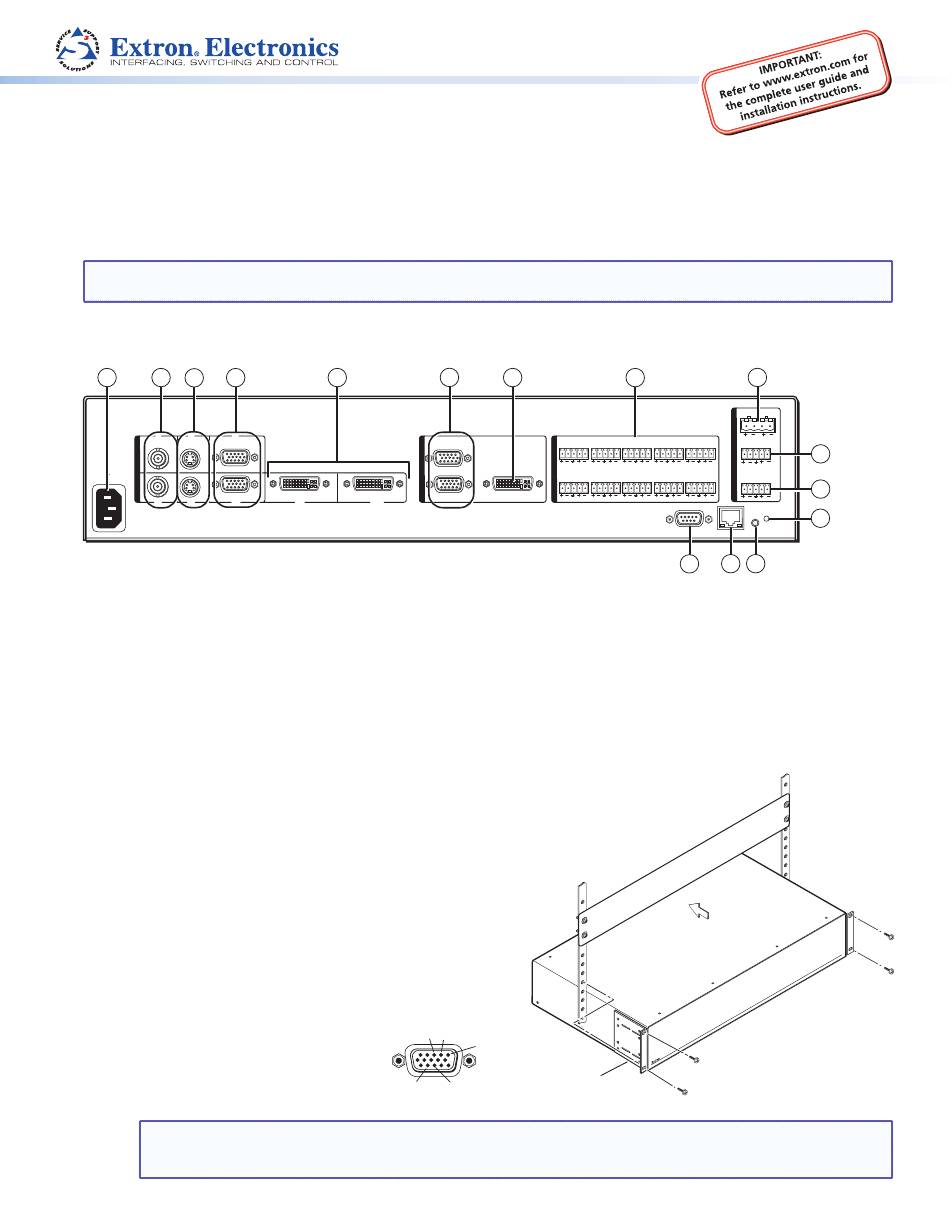

Rear Panel Features and Connections
1 2 3 4
1 3 5
V
RGB/R-Y, Y, B-Y
I VID
YC
D
E
O
I
100-240V 50-60 Hz
N
2A MAX
P
U
T
VID YC
RGB/R-Y, Y, B-Y
2 4 6
a
AC power connector
b
Video inputs 1 and 2: Composite video
c
Video inputs 3 and 4: S-video
d
Video inputs 5 and 6: RGB or YUV component
e
Video inputs 7/8 and 9/10: RGB or YUV (7 and 9) and
DVI (8 and 10)
f
Buffered RGB/YUV output connectors
g
DVI-I output connector (digital output only)
Installation Steps
Disconnect power from all equipment.
1.
(Optional) Mount the unit. Rack mount the scaler using the
2.
attached brackets (see the illustration at right). For tabletop
placement, remove the brackets from the right and left sides
and attach the provided rubber feet.
Connect video inputs. Connect video input devices to the
3.
appropriate connectors in the rear panel Video Input section
b e
( through in the diagram above).
Video inputs 5 and 6: RGB or YUV component —
z
Connect one or two RGBHV, RGBS, RGsB, RGBcvS, YUVi,
or YUVp/HDTV video sources to these female 15-pin HD
connectors (shown below). These connectors feature EDID
emulation.
NOTE: (Optional) To obtain one or two more RGB/YUV inputs, you can connect an Extron DVIIM-VGAF/DVIIF
DVI and Analog Breakaway (Y) cable to either or both DVI-I input connectors. Each Y cable provides an
additional RGB VGA connector and DVI-I connector (see "Breakaway cable" on the next page).
5 6
V
RGB/R-Y, Y, B-Y
I
D
E
O
O
U
T
P
U
DVI-I DVI-I RGB/R-Y, Y, B-Y
T
7/8 9/10
3
2
14 13
Inputs 5 and 6
7 8
A
1 3 5
U
D
I
O L R L R L R
DVI-D
I
N
2 4 6
P
U
T
L R L R L R
h
Audio input connectors
i
Amplified audio output connector (DVS 510 SA only)
j
Variable audio output connector
k
Fixed audio output connector
l
Reset LED
m
Reset button
n
LAN connector
o
RS-232/RS-422 connector
